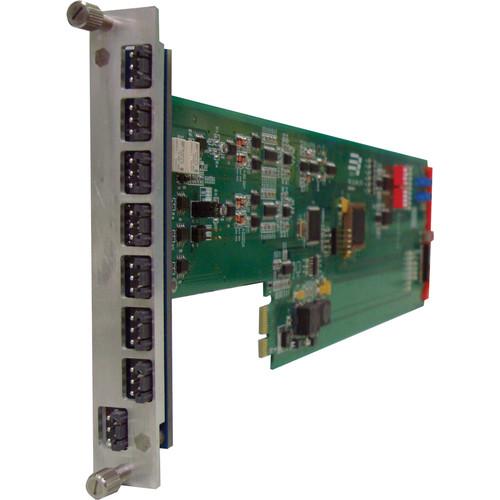

Product description The XIO 9001ADA SD-SDI/ASI 2 x 6 Dual Analog Audio Distribution and Amplifier Card for a 1RU Frame from Gra-Vue is an audio distribution amplifier which receives 2 analog audio input signals and distributes each of them to 3 outputs. All inputs and outputs are 3-pin Phoenix balanced connectors. The unit features adjustable signal gain as well as output isolation and crosstalk suppression for each of the 6 separate outputs.
The XIO 9001ADA provides automatic signal equalization for improving the signal quality and reducing signal loss caused by long distance transmission. The LED lights on the card indicate the status of the input signal and power supply. The card supports SNMP, and it can be managed and monitored in real-time with the XIO NET, the Network Management Module (sold separately), via Ethernet.
The unit is designed to be mounteded horizontally in a 1RU frame. - 2 analog audio inputs distributed to 3 outputs each for a total of 6 outputs
- 3-pin Phoenix connectors for input and output
- Adjustable signal gain from -6 to 27 dB
- Automatic signal equalization when used with long cables
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in realtime by XIO NET (sold separately) via Ethernet
- For use in broadcasting systems, studios, and other professional fields
- For mounting horizontally in a 1RU frame
In the Box Gra-Vue XIO 9001ADA SD-SDI/ASI 2 x 6 Dual Analog Audio Distribution and Amplifier Card for a 1RU Frame Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9001ADA SD-SDI ASI 2 x 6 Dual Analog Audio Distribution and Amplifier Card for a 1RU Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9001ADA-1U Specs | Connectors | 2 x 3-pin Phoenix, balanced input
6 x 3-pin Phoenix, balanced output | | Frequency Response | 20 Hz - 20 kHz, <±0.05 dB | | Gain Range | -6 to +27 dB | | Impedance | 600 Ω | | Status Indicator | 1 x LED green, signal
1 x LED green, power | | Power Consumption | 2 - 3 W | | Dimensions (W x D x H) | 3.94 x 14.37 x 0.39" (10.00 x 36.50 x 1.00 cm) including components | | Weight | 6.35 oz (180.00 g) approximate |
