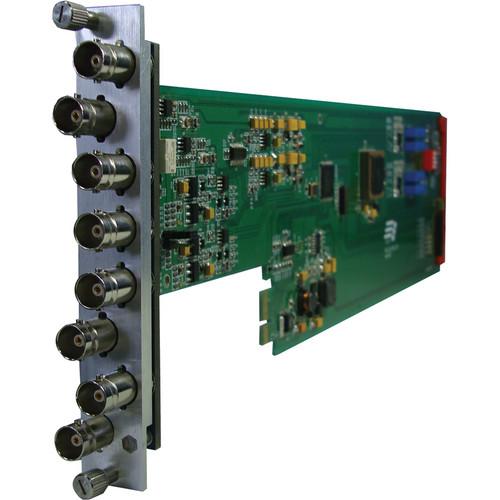

Product description The Gra-Vue XIO 9001VDA 2 x 3 Composite Video Distribution Amplifier is a modular distribution amplifier card designed to be used in a XIO 1U or 3U Modular Platform Chassis (sold separately). It distributes dual analog composite video signals to 2 x 3 outputs. The unit supports automatic input detection of NTSC and PAL, and the gain of the output signals can be adjusted via DIP switch. The distribution amplifier provides automatic signal equalization for long cable applications (up to 656' over Belden 1694A). This improves the signal quality and reduces signal loss generally caused due to long distance transmission of the input source. The LED lights on the module indicate the status of input signal and power supply to let you know the signal and power status immediately. The distribution amplifier also supports SNMP, and can be real-time managed and monitored by the XIO NET Network Management Module (sold separately) via Ethernet. - Dual CVBS signals input with each one distributed across 3 CVBS signal outputs
- Supports automatic detection of NTSC and PAL standards at input
- Supports hot swapping / hot plugging
- Allows adjustment of the gain of output signal via a DIP switch
- Provides automatic signal equalization for long cable applications (up to 656' (200m) over Belden 1694A)
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET (sold separately) via Ethernet
- For use in broadcasting systems, studios, and other professional fields
In the Box Gra-Vue XIO 9001VDA 2 x 3 Composite Video Distribution Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9001VDA 2 x 3 Composite Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9001VDA Specs | | | Input Interface | 2 x CVBS, BNC | | Impedance | 75 Ω | | Format | SMPTE 259M-C 270 Mb/s; 525i60, 625i50 | | Maximum Length | ≤656' (200 m) over Belden 8281 | | | | Output Interface | 6 (2 x 3) x CVBS, BNC | | Format | 525i60, 625i50; SMPTE 259M-C 270 Mb/s | | Impedance | 75 Ω | | Signal Level | 1 Vpp | | White Level | 0.7 V | | H-sync Level | -0.3 V | | | | Status Indicators | Signal and power (status indicated by shining or extinguishing of the green LED) | | | | Power Consumption | 2 to 3 W | | Dimensions | 14.4 x 3.9 x 0.03" (36.5 x 10.0 x 0.1 cm) PCB only
14.4 x 3.9 x 0.4" (36.5 x 10.0 x 1.0 cm) including components' height | | Weight | Approximately 6.5 oz (185.0 g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
