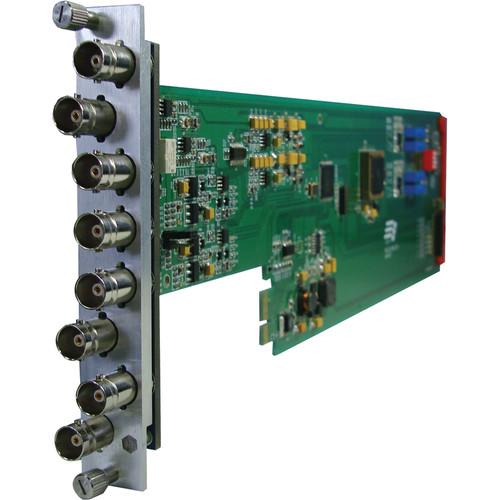

User Manual for Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video Distribution Amplifier Card for 1RU Frame Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9001VDA Dual 1 x
- Product category: Distribution Amplifiers (DA's) Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Distribution Amplifiers (DA's)
|
User manual for the Gra-Vue XIO 9001VDA Dual 1 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The XIO 9001VDA Dual 1 x 3 Analog Video Distribution Amplifier Card for 1RU Frame from Gra-Vue is a modular distribution amplifier card designed to be used in a XIO 1RU Modular Platform Chassis (sold separately). This card distributes 2 analog composite video signals CVBS-A and CVBS-B, and distributes each of them to 3 video outputs. The unit supports automatic input detection of NTSC and PAL, and the gain of the output signals can be adjusted via an on-board DIP switch. The distribution amplifier provides automatic signal equalization for improving signal quality and reducing signal loss caused by long distance transmission (cable length up to 656' over Belden 8281). The LED lights on the module indicate the status of the input signal and power supply. The distribution amplifier also supports SNMP, and can be real-time managed and monitored by the XIO NET Network Management Module (sold separately) via Ethernet. This unit is designed to be mounted horizontally in a 1RU frame. - 2 CVBS input signals, each one distributed to 3 CVBS output signals
- Supports automatic detection of NTSC and PAL standards at input
- Supports hot swapping / hot plugging
- Allows adjustment of the gain of output signal via a DIP switch
- Provides automatic signal equalization when used with long cables (up to 656' over Belden 8281)
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET (sold separately) via Ethernet
- For use in broadcasting systems, studios, and other professional fields
- To be mounted horizontally in a 1RU frame
In the Box Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video Distribution Amplifier Card for 1RU Frame Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video Distribution Amplifier Card for 1RU Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9001VDA-1U Specs | Connectors | 2 x BNC, CVBS input
6 x BNC, CVBS output | | Impedance | 75 Ω | | Format | SMPTE 259M-C 270 Mb/s
525i60, 625i50 | | Maximum Length | 656' (200 m) over Belden 8281 | | Status Indicators | 1 x LED, Signal
1 x LED, Power | | Signal Level | 1 VDC pp | | White Level | 0.7 VDC | | H-sync Level | -0.3 VDC | | Power Consumption | 2 to 3 W | | Dimensions | 14.4 x 3.9 x 0.4" (36.5 x 10.0 x 1.0 cm) including components' height | | Weight | 6.5 oz (185.0 g) approximate |
