User Manual for Gra-Vue XIO 9001VSD-RC 2 x 3 SD-SDI ASI Signal Distribution Amplifier with Re-clocking Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9001VSD-RC 2 x 3
- Product category: Distribution Amplifiers (DA's) Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Distribution Amplifiers (DA's)
|
User manual for the Gra-Vue XIO 9001VSD-RC 2 x 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|

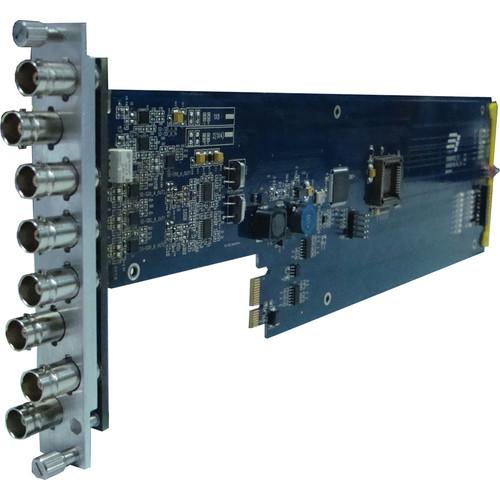

Product description Based on the XIO platform, the Gra-Vue XIO 9001VSD-RC 2 x 3 SD-SDI / ASI Signal Distribution Amplifier provides dual SD-SDI signals for input, and distributes each of them to 3 outputs with re-clocking. This amplifier supports SD-SDI input signals with embedded audio and automatic input detection of 525i 60 and 625i 50. It can also process and distribute ASI signals.
The XIO 9001VSD-RC Distribution Amplifier provides automatic signal equalization and re-clocking for long cable applications. This improves the signal quality and reduces signal loss caused by long distance transmission of input sources. The LED lights on the module indicate the status of input signals and power supply to let you know the signal status immediately. The distribution amplifier also supports SNMP and can be real-time managed and monitored via the XIO NET Network Management Module (sold separately) via Ethernet. - 2-Channel SD-SDI signal inputs & 3-channel SD-SDI signal outputs with re-clocking
- Supports automatic input detection of 525i 60 and 625i 50
- Supports SD-SDI signals with embedded audio
- Supports processing and distribution of ASI signals
- Broadcast quality with inner 10-bit processing
- Provides automatic signal equalization and re-clocking for long cable applications
- Features LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET (sold separately) via Ethernet
- Can be mounted in a 1 or 3RU configuration
In the Box Gra-Vue XIO 9001VSD-RC 2 x 3 SD-SDI / ASI Signal Distribution Amplifier with Re-clocking Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9001VSD-RC 2 x 3 SD-SDI ASI Signal Distribution Amplifier with Re-clocking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9001VSD-RC Specs | | | Input interfaces-Audio | 2 x SD-SDI, BNC type | | Impedance | 75 Ω | | Format | 525i 60, 625i 50 | | Loss | Reflectio Loss: >5 dB; 270 MHz | | Maximum Cable Length | <656' (200 m, Belden 1694 A) | | | | Output Interface | 6 x SD-SDI / ASI, BNC type | | Impedance | 75 Ω | | Format | 525i 60, 625i 50 SMTPE 259M-C 270 Mb/s | | Level | 800 mV, ±5% | | Jitter | <0.2 UI, 100 kHz | | Status Indicator | Signal status and power indicators (indicate status by shining or extinguishing of the green LED) | | | | Power Consumption | 2 to 3 W | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
