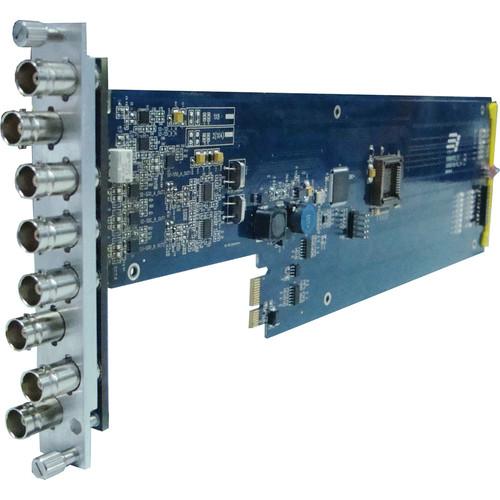

Product description The XIO 9001VSD-RC Dual 1 x 3 SD-SDI / ASI Signal Distribution Amplifier Card with Re-Clocking from Gra-Vue provides dual SD-SDI signal inputs, and distributes each of them to 3 outputs with re-clocking. This distribution amplifier card is designed to be mounted vertically in a 3RU frame. The card supports SD-SDI and ASI input signals with embedded audio and automatic input detection of 525i 60 and 625i 50 resolution.
The XIO 9001VSD-RC Distribution Amplifier provides automatic signal equalization and re-clocking when long cables are used. This improves the signal quality and reduces signal loss caused by long distance transmission of input sources. The LED lights on the module indicate the status of input signals and power supply. The distribution amplifier also supports SNMP and can be real-time managed and monitored via the XIO NET Network Management Module (sold separately) via Ethernet. - 2 SD-SDI input signals, each one distributed and re-clocked to 3 SD-SDI output signals
- Supports automatic input detection of 525i 60 and 625i 50
- Supports SD-SDI signals with embedded audio
- Supports processing and distribution of ASI signals
- Broadcast quality with inner 10-bit processing
- Features LED lights which indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET (sold separately) via Ethernet
- Mounts vertically in a 3RU frame
In the Box Gra-Vue XIO 9001VSD-RC Dual 1 x 3 SD-SDI / ASI Signal Distribution Amplifier Card with Re-Clocking (for 3RU frame) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9001VSD-RC Dual 1 x 3 SD-SDI ASI Signal Distribution Amplifier Card with Re-Clocking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9001VSD-RC-3U Specs | Connectors | 2 x BNC, SD-SDI input
6 x BNC, SD-SDI output | | Impedance | 75 Ω | | Loss | Reflection Loss: >5 dB; 270 MHz | | Maximum Cable Length | 656' (200 m), Belden 1694 A | | Format | 525i 60, 625i 50 SMTPE 259M-C 270 Mb/s | | Level | 800 mV, ±5% | | Jitter | <0.2 UI, 100 kHz | | Status Indicator | 1 x LED, signal
1 X LED, power | | Power Consumption | 2 to 3 W | | Dimensions (L x W x H) | 14.4 x 3.9 x 0.4" (36.5 x 10.0 x 1.0 cm) including components' height | | Weight | 6.3 oz (180.0 g) approximate |
