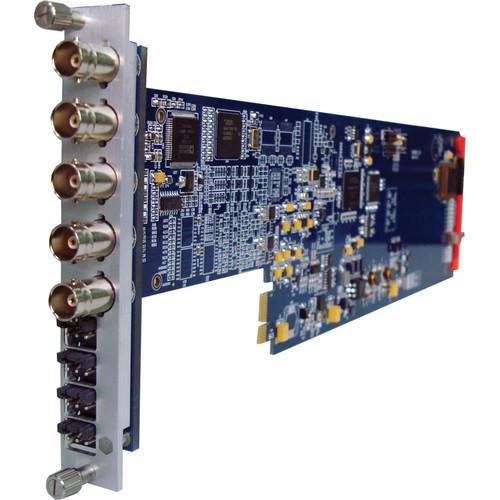

Product description The XIO 9010DES-4AUD-3U Composite to SDI Converter Audio Embedding for XIO Series Frames is a modular expansion board that fits the 3RU height version of the XIO frame. It converts analog composite video in the NTSC or PAL standard to SDI and features two SD-SDI outputs. In addition, this model will embed two channels of analog audio in the SDI stream. - Fame sync input allows you to sync the outgoing SDI signal to an external source, such as a house clock. Three modes supported: INT, single EXT, and global EXT, and can be set over XIO Net
- 10-bit internal processing
- LED lights indicate the status of signals and power supply
- Support SNMP, and can be managed and monitored in real-time using XIO NET
- Video connectors may be hot-swapped
- for use in broadcasting system, studios, and other professional video fields
In the Box Gra-Vue XIO 9010DES-4AUD-3U Composite to SDI Converter Audio Embedding for XIO Series Frames (3RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9010DES-4AUD-3U Composite to SDI Converter Audio Embedding for XIO Series Frames in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9010DES-4AUD-3U Specs | Analog Video Input | Connector: 1 x Composite on BNC
Impedance: 75 ohm
Standard: NTSC/PAL
Reflection Loss: >40 dB, 5.8 MHz | | Reference Input | Connector: 1 x Composite on BNC
Standard: 625i50; SMPTE 259M-C, 270Mb/s | | Analog Audio Input | Connectors: 4x 3-pin, balanced terminal connectors
Impedance: 600 ohm
Maximum Level : +24 dBu (0 dBFs) | | SDI Output | Connector: 2 x SD-SDI on BNC connectors
Impedance: 75 ohm
Standard: 525i 60, 625i 50; SMPTE 259M-C; 270Mb/s
Level: 800 mV ±5%
Jitter: <0.2 UI (100 KHz) | | Status Indicator | Signal status indicator; Power indicator
Indicated by shining or extinguishing green LED | | Power Consumption | 2 to 3 W | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
