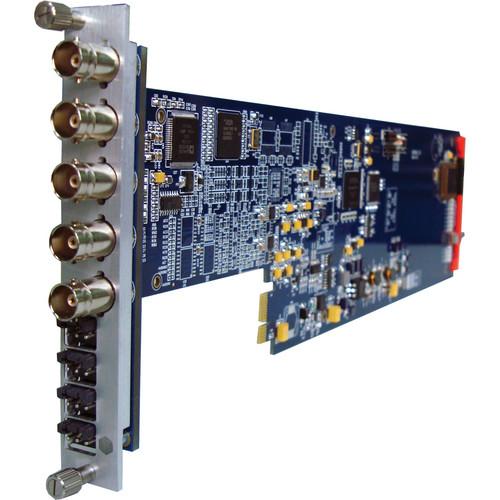

User Manual for Gra-Vue XIO 9010DES-4AUD Composite Video & Audio to 2 x SD-SDI Converter Card with Frame Sync Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9010DES-4AUD Composite Video &
- Product category: Signal Converters Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Signal Converters
|
User manual for the Gra-Vue XIO 9010DES-4AUD Composite Video & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The Gra-Vue XIO 9010DES-4AUD Composite Video & Audio to 2 x SD-SDI Converter Card with Frame Sync is based on the XIO Modular Platform. It installs into and is powered by either the XIO-1U or XIO-3U Chassis. This unit converts a single analog composite video signal to 2 identical SDI signals with frame sync processing. It supports NTSC and PAL standards.The card also has two analog audio stereo inputs which are both embedded into the two SD-SDI outputs. The embedded audio channels can be selected by a DIP Switch.The LED lights on the module indicate the status of input signal and power supply, in order to let the user know the status immediately. This analog video to SD-SDI converter also supports SNMP. It can be managed in real-time and monitored by XIO NET, the Network Management Module, via Ethernet. - Single analog composite video input, 4 analog audio inputs, and 2 identical SD-SDI outputs
- Embedded audio channels can be selected by a DIP Switch on card edge
- Provides an individual Ref interface and frame sync processing
- Provides 3 kinds of sync modes: INT, single EXT, and global EXT from XIO net
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be managed in real-time and monitored by XIO NET
- Widely used in broadcasting systems, studios, and other professional fields
In the Box Gra-Vue XIO 9010DES-4AUD Composite Video & Audio to 2 x SD-SDI Converter Card with Frame Sync Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9010DES-4AUD Composite Video & Audio to 2 x SD-SDI Converter Card with Frame Sync in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9010DES-4AUD Specs | | | Interface | Input: 1 x CVBS, BNC | | Impedance | 75 Ω | | Format | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s | | Loss | Reflection: >40 dB, 5.8 MHz | | | | Interface | Input: 1 x Ref, BNC | | Input Type | Analog composite video | | Format | 625i 50 SMPTE 259M-C 270Mb/s | | | | Interface | Input: 4 x 3-pin, balance | | Impedance | 600 Ω | | Maximum Level | +24 dBu (0 dBFs) | | | | Output Interface | 2 x SDI, BNC | | Impedance | 75 Ω | | Format | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s | | Level | 800 mV ± 5% | | Jitter | <0.2 UI (100 kHz) | | | | Status Indicator | Signal status indicator and power indicator (Indicated by shining or extinguishing of the green LED) | | | | Power Consumption | 2 to 3 W | | | | Dimensions | 14.30 x 3.90 x 0.03" (365.00 x 100.00 x 1.00 mm) | | Weight | 6.5 oz (185 g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
