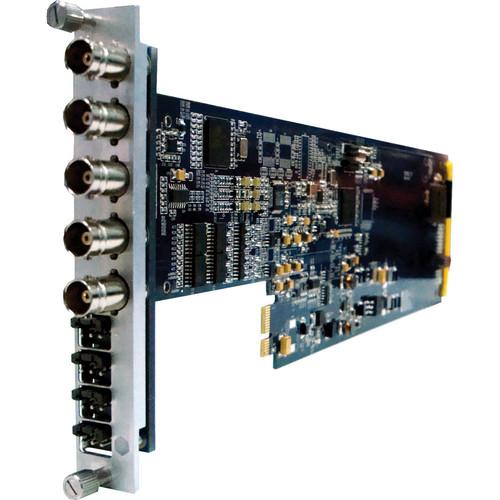

User Manual for Gra-Vue XIO 9020EMB-4AUD 1 x 2 SD-SDI Distribution Amplifier with Analog Audio Embedding Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9020EMB-4AUD 1 x 2
- Product category: Embedders & De-Embedders Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Embedders & De-Embedders
|
User manual for the Gra-Vue XIO 9020EMB-4AUD 1 x 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The Gra-Vue XIO 9020EMB-4AUD 1 x 2 SD-SDI Distribution Amplifier with Analog Audio Embedding is based on the XIO platform. It embeds 2 analog audio stereo signals into the SD-SDI input, and outputs 2 identical SD-SDI signals with embedded audio. Meanwhile, the SDI signal is converted to 1 analog composite video signal for monitoring or other applications. The embedded audio group can be selected freely though a DIP switch. Also, the embedded mode of audio channels is selectable: total embedding for the left or right channel, following input channels, and so on. It supports 625i 50 and 525i 60 input signals.
The XIO 9020EMB-4AUD embedder provides automatic signal equalization for up to 656’ (200m) via Belden 1694A (low loss serial digital coax cable), which can improve the signal quality and reduce signal loss caused by long distance transmission of the input source. Additionally, the LED lights on the module indicate the status of input signals and power supply in order to let the user know the status immediately. This embedder supports SNMP and can be real-time managed and monitored by the XIO NET Network Management Module (sold separately). - Supports PAL and NTSC input signals
- Enables selection of the embedded audio channels freely though a DIP switch
- LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in realtime via the XIO NET
- This card is compatible with XIO 1U or XIO 3U chassis
- For use in broadcasting systems, studios, and other professional fields
In the Box Gra-Vue XIO 9020EMB-4AUD 1 x 2 SD-SDI Distribution Amplifier with Analog Audio Embedding Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9020EMB-4AUD 1 x 2 SD-SDI Distribution Amplifier with Analog Audio Embedding in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9020EMB-4AUD Specs | | | Interface | Input Interface: 1 x SD-SDI, BNC connecter | | Impedance | 75 Ω | | Format | 525i 60, 625i 50
SMPTE 259M-C 270 Mb/s | | Maximum Length | <656' (<200 m, Belden 1694A) | | | | Interface | Input Interface: 4 x 3-pin, balanced | | Maximum Level | 24 dBu (0 dBFs) | | | | Output Interface | 2 x SDI, BNC | | Format | 525i 60, 625i 50
SMPTE 259M-C 270 Mb/s | | Level | 800 mV, ±5% | | Jitter | <0.2 UI (100 kHz) | | | | Output Interface | 1 x CVBS, BNC connecter | | Impedance | 75 Ω | | Format | 525i 60, 625i 50
SMPTE 259M-C 270 Mb/s | | | | Status Indicator | Signal status, power (indicated by shining or extinguishing of the green LED) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
