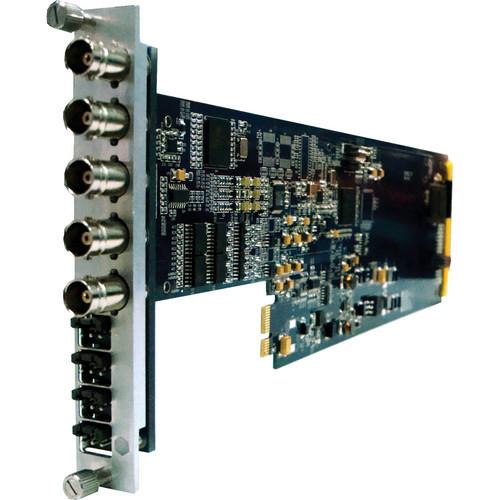

User Manual for Gra-Vue XIO 9020ENC-4AUD SD-SDI to Dual Composite Video & Audio Converter Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9020ENC-4AUD SD-SDI to Dual
- Product category: Signal Converters Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Signal Converters
|
User manual for the Gra-Vue XIO 9020ENC-4AUD SD-SDI to Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The Gra-Vue XIO 9020ENC-4AUD SD-SDI to Dual Composite Video & Audio Converter is a modular converter card designed to be used in either the XIO 1U or 3U Modular Platform Chassis (sold separately). It converts a single SDI signal (625i 50 and 525i 60 format) to 2 analog composite video signals and also outputs one SDI loop signal. In addition, 2 analog audio stereo signals are extracted from the SDI input. This de-embedded audio can be selected through a DIP switch and used as input for crossing output, mixing output, and other similar applications.The XIO 9020ENC-4AUD Converter provides automatic signal equalization for long cable applications (up to 656’ over a Belden 1694A cable). This improves the signal quality and reduces signal loss caused due to long distance transmission of the input source. The LED lights on the module indicate the status of input signal and power supply, to let you know the signal and power status immediately. This converter also supports SNMP and can be real-time managed and monitored via the XIO NET Network Management Module (sold separately). - Supports 625i 50 and 525i 60 input formats
- Supports hot swapping / hot plugging
- Allows selection of de-embedded audio group through a DIP switch
- Automatic signal equalization for long distance transmission over coax (up to 656' (200m) using Belden 1694A)
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET
- For use in broadcasting systems, studios, and other professional fields
In the Box Gra-Vue XIO 9020ENC-4AUD SD-SDI to Dual Composite Video & Audio Converter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9020ENC-4AUD SD-SDI to Dual Composite Video & Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9020ENC-4AUD Specs | | | Interface | Input: 1 x SD-SDI, BNC | | Impedance | 75 Ω | | Format | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s | | | | Output Interface | 1 x SDI, BNC | | Impedance | 75 Ω | | Format | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s | | Level | 800 mV ± 5% | | Jitter | <0.2 UI (100 kHz) | | | | Output Interface | 2 x CVBS, BNC | | Impedance | 75 Ω | | Format | 525i 60, 625i 50 SMPTE 259M-C 270 Mb/s | | | | Output Interface | 4 x 3-pin, balance | | Impedance | 600 Ω | | Maximum Level | 24 dBu (0 dBFs) | | | | Status Indicators | Signal status and power (status indicated by shining or extinguishing of the green LED) | | | | Transmission Distance | Up to 656' (200 m) over Belden 1694A | | Dimensions | 14.30 x 3.90 x 0.03" (365.00 x 100.00 x 1.00 mm) | | Weight | 6.5 oz (185 g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
