User Manual for Gra-Vue XIO 9030HDDEM-2AES-1U HD-SDI to AES Audio De-Embedder for XIO Frame Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9030HDDEM-2AES-1U HD-SDI to AES
- Product category: Embedders & De-Embedders Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Embedders & De-Embedders
|
User manual for the Gra-Vue XIO 9030HDDEM-2AES-1U HD-SDI to AES contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|

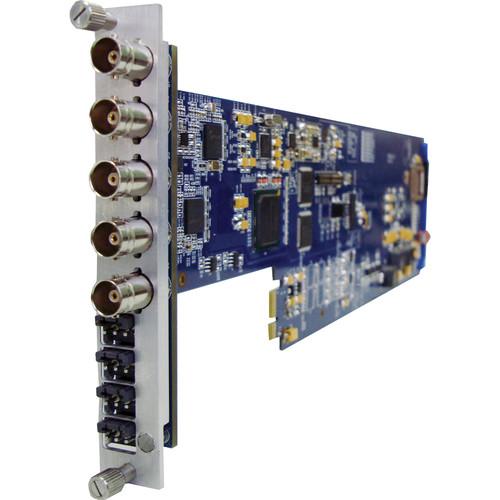

Product description The XIO 9030HDDEM-2AES-1U HD-SDI to AES Audio De-Embedder for XIO Frame from Gra-Vue extracts two channels of embedded audio from an SD- or HD-SDI stream outputting them over AES. Part of a modular system, this board requires the 1RU XIO rackmoutable frame, available separately. In addition to audio, the card features dual SDI loop-out. This allows you to route the SDI signal to two separate downstream devices with requiring external distribution hardware. - Supports 625i 50, 525i 60, 720p, 1080i, 1080p, 1080psf resolutions with automatic detection of input format
- Select the audio group to de-embed using DIP switches
- Provides automatic signal equalization cable runs of up to 328'
- Hot-swappable video and audio connectors
- LEDs indicate power and signal status
- Supports SNMP for real-time management over a network using XIO NET
In the Box Gra-Vue XIO 9030HDDEM-2AES-1U HD-SDI to AES Audio De-Embedder for XIO Frame (1RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9030HDDEM-2AES-1U HD-SDI to AES Audio De-Embedder for XIO Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9030HDDEM-2AES-1U Specs | | | SDI Input | Connector: 1 x HD/SD-SDI on BNC
Impedance: 75 hm
Maximum Cable Length (Beldan 1694A): < 328' / 100 m | | Digital Audio Output | Connector: 4 x 3-pin balanced terminal block
Maximum Level: 0 dBFs (+24 dBU) | | SDI Output | Connector: 2 x HD/SD-SDI on BNC
Level: 800 mV±5%
Jitter: <0.2 UI (100 KHz) | | Supported Resolutions | SD: 625i50, 525i60
HD 720p: 50, 60
HD 1080i: 50,60
HD 1080p: 24, 25, 30, psf24 | | Supported Standards | SMPTE 259M-C; 270 Mb/s
SMPTE 292M; 1.485 Gb/s | | | | Status Indicator | Signal status indicator, power indicator: Indicated by shining or extinguishing a green LED | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
