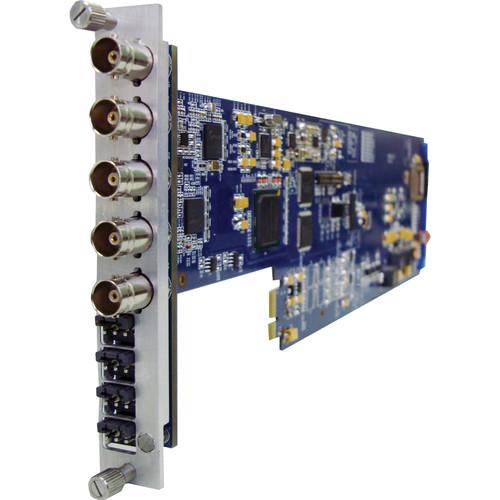

Product description The XIO 9030HDDEM-2AES-3U HD-SDI to AES Audio De-Embedder for XIO Frame from Gra-Vue extracts two channels of embedded audio from an SD- or HD-SDI stream outputting them over AES. Part of a modular system, this board requires the 3RU XIO rackmoutable frame, available separately. In addition to audio, the card features dual SDI loop-out. This allows you to route the SDI signal to two separate downstream devices with requiring external distribution hardware. - Supports 625i 50, 525i 60, 720p, 1080i, 1080p, 1080psf resolutions with automatic detection of input format
- Select the audio group to de-embed using DIP switches
- Provides automatic signal equalization cable runs of up to 328'
- Hot-swappable video and audio connectors
- LEDs indicate power and signal status
- Supports SNMP for real-time management over a network using XIO NET
In the Box Gra-Vue XIO 9030HDDEM-2AES-3U HD-SDI to AES Audio De-Embedder for XIO Frame (3RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9030HDDEM-2AES-3U HD-SDI to AES Audio De-Embedder for XIO Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9030HDDEM-2AES-3U Specs | | | SDI Input | Connector: 1 x HD/SD-SDI on BNC
Impedance: 75 hm
Maximum Cable Length (Beldan 1694A): < 328' / 100 m | | Digital Audio Output | Connector: 4 x 3-pin balanced terminal block
Maximum Level: 0 dBFs (+24 dBU) | | SDI Output | Connector: 2 x HD/SD-SDI on BNC
Level: 800 mV±5%
Jitter: <0.2 UI (100 KHz) | | Supported Resolutions | SD: 625i50, 525i60
HD 720p: 50, 60
HD 1080i: 50,60
HD 1080p: 24, 25, 30, psf24 | | Supported Standards | SMPTE 259M-C; 270 Mb/s
SMPTE 292M; 1.485 Gb/s | | | | Status Indicator | Signal status indicator, power indicator: Indicated by shining or extinguishing a green LED | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
