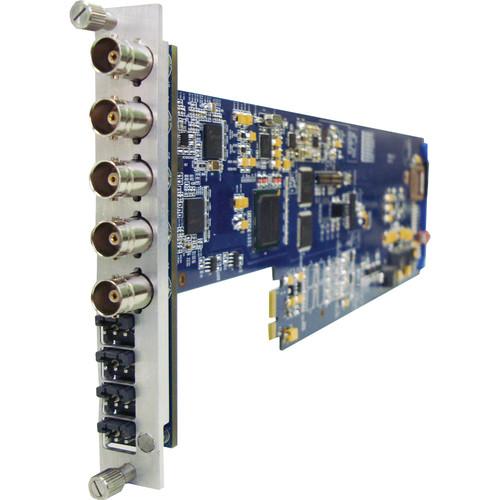

User Manual for Gra-Vue XIO 9030HDEMB-2AES-3U 2-Channel AES Audio Embedder Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9030HDEMB-2AES-3U 2-Channel AES Audio
- Product category: Embedders & De-Embedders Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Embedders & De-Embedders
|
User manual for the Gra-Vue XIO 9030HDEMB-2AES-3U 2-Channel AES Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The XIO 9030HDEMB-2AES-3U 2-Channel AES Audio Embedder from Gra-Vue is a modular board for installation in XIO series rackmount frames. It allows the insertion of two user selectable audio channels from the SDI stream via balanced AES terminal block connectors. In addition to being able to select the audio group these channels are embedded two, it is also possible to select which stereo channel (right or left) they are panned two. For example, the outputs can follow the inputs, both inputs can be sent to right channel, or both inputs can be sent to left channel.
The board features two mirrored SDI loop outputs so that video can be delivered to two downstream destinations without requiring a separate distribution amplifier. It will pass both SD and HD resolution signals, and supports bandwidths up to 1.5 Gb/s (HD-SDI).
Note: This version is configured for the 3RU frame. There is another model available if you use the 1RU frame. - Automatic signal detection. Supported signals include: 625i50, 525i60, 720p, 1080i, 1080p, and 1080psf
- Audio group to embed to may be selected via DIP switches
- Provides automatic signal equalization to enable cable runs up to 328' when using Belden 1694A cable
- Supports hot swapping of connectors
- Provides LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in real-time using XIO NET via an Ethernet interface
- For use in broadcast television and other professional video applications
In the Box Gra-Vue XIO 9030HDEMB-2AES-3U 2-Channel AES Audio Embedder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9030HDEMB-2AES-3U 2-Channel AES Audio Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9030HDEMB-2AES-3U Specs | SDI Input | Connector: 1 x HD/SD-SDI on BNC female
Impedance: 75 ohm | | Maximum Cable Length | Up to < 328' (100 m) when using Belden 1694A | | Reference Input | None | | Digital Audio Input (AES/EBU) | Connector: 4 x Balanced 3-pin terminal block
Maximum Level: +24 dBu (0 dBFs) | | SDI Output | 2 x HD/SD-SDI on BNC female
Impedance: 75 ohm
Level: 800 mV ±5% Jitter: <0.2 UI (100 KHz) | | Supported Formats | SD: 625i50, 525i60
HD: 1080i50/60, 720p50/60, 1080p24/25/30, 1080psf24 | | Supported Standards | SMPTE 259M-C (270 Mb/s), SMPTE 292M (1.485 Gb/s) | | Status Indicator | Signal status indicator, Power indicator (indicated by illuminating or muting a green LED) |
