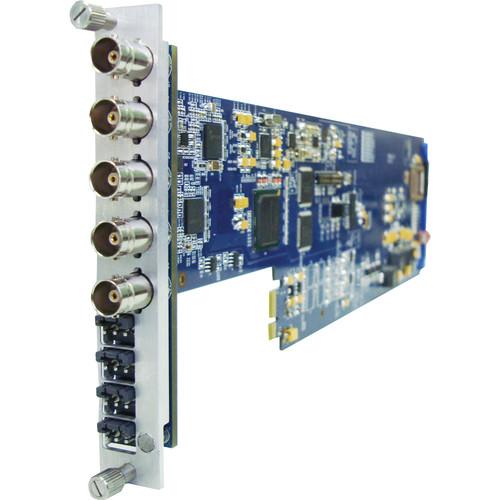

Product description The XIO 9030HDEMB-2AES-FS-1U 2-Channel AES Audio Embedder with Frame Sync from Gra-Vue is a modular board for installation in XIO series rackmount frames. It allows the insertion of two user selectable audio channels from the SDI stream via balanced AES terminal block connectors. In addition to being able to select the audio group these channels are embedded two, it is also possible to select which stereo channel (right or left) they are panned two. For example, the outputs can follow the inputs, both inputs can be sent to right channel, or both inputs can be sent to left channel.
The board features two mirrored SDI loop outputs so that video can be delivered to two downstream destinations without requiring a separate distribution amplifier. It will pass both SD and HD resolution signals, and supports bandwidths up to 1.5 Gb/s (HD-SDI).
Note: This version is configured for the 1RU frame. There is another model available if you use the 3RU frame. - Reference input with support for the following sync modes: INT, single EXT, and Global EXT
- Automatic signal detection. Supported signals include: 625i50, 525i60, 720p, 1080i, 1080p, and 1080psf
- Audio group to embed to may be selected via DIP switches
- Provides automatic signal equalization to enable cable runs up to 328' when using Belden 1694A cable
- Supports hot swapping of connectors
- Provides LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in real-time using XIO NET via an Ethernet interface
- For use in broadcast television and other professional video applications
In the Box Gra-Vue XIO 9030HDEMB-2AES-FS-1U 2-Channel AES Audio Embedder with Frame Sync Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9030HDEMB-2AES-FS-1U 2-Channel AES Audio Embedder with Frame Sync in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9030HDEMB-2AES-FS-1U Specs | SDI Input | Connector: 1 x HD/SD-SDI on BNC female
Impedance: 75 ohm | | Maximum Cable Length | Up to < 328' (100 m) when using Belden 1694A | | Reference Input | Analog composite video on BNC female (NTSC or PAL) | | Digital Audio Input (AES/EBU) | Connector: 4 x Balanced 3-pin terminal block
Maximum Level: +24 dBu (0 dBFs) | | SDI Output | 2 x HD/SD-SDI on BNC female
Impedance: 75 ohm
Level: 800 mV ±5% Jitter: <0.2 UI (100 KHz) | | Supported Formats | SD: 625i50, 525i60
HD: 1080i50/60, 720p50/60, 1080p24/25/30, 1080psf24 | | Supported Standards | SMPTE 259M-C (270 Mb/s), SMPTE 292M (1.485 Gb/s) | | Status Indicator | Signal status indicator, Power indicator (indicated by illuminating or muting a green LED) |
