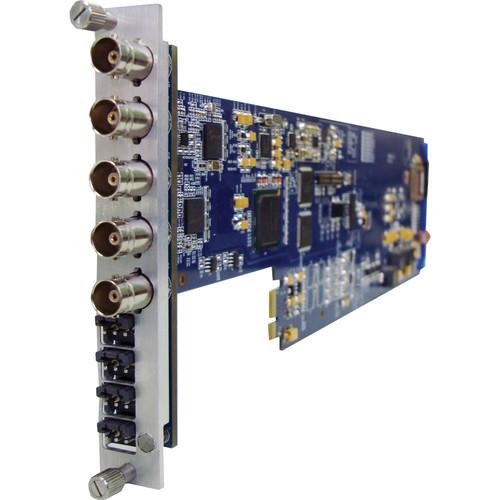

Product description The XIO 9030HDEMB-4AUD-3U SDI 4-Channel Analog Audio Embedder is for use in an XIO series rackmount frame, and will embed two stereo analog audio sources into a single SDI stream. It features two mirrored SDI outputs so that video with newly embedded audio may be delivered to two destinations without requiring a separate distribution amplifier. The SDI audio group and channels to which the audio is embedded to is user-defined, and may be set using DIP switches on the unit. The embedder supports 625i50, 525i60, 720p, 1080i, 1080p, and 1080psf signals and features automatic input detection.
Note: This version is configured for the 3RU frame. There is another model available if you use the 1RU frame. - Automatic signal detection. Supported signals include: 625i50, 525i60, 720p, 1080i, 1080p, and 1080psf
- Audio group to embed to may be selected via DIP switches
- Provides automatic signal equalization to enable cable runs up to 328' when using Belden 1694A cable
- Supports hot swapping of connectors
- Provides LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in real-time using XIO NET via an Ethernet interface
- For use in broadcast television and other professional video applications
In the Box Gra-Vue XIO 9030HDEMB-4AUD-3U SDI 4-Channel Analog Audio Embedder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9030HDEMB-4AUD-3U SDI 4-Channel Analog Audio Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9030HDEMB-4AUD-3U Specs | SDI Input | Connector: 1 x HD/SD-SDI on BNC female
Impedance: 75 ohm | | Maximum Cable Length | Up to < 328' (100 m) when using Belden 1694A | | Reference Input | None | | Analog Audio Input | Connector: 4 x Balanced 3-pin terminal block
Maximum Level: +24 dBu (0 dBFs) | | SDI Output | 2 x HD/SD-SDI on BNC female
Impedance: 75 ohm
Level: 800 mV ±5% | | Supported Formats | SD: 625i50, 525i60
HD: 1080i50/60, 720p50/60, 1080p24/25/30, 1080psf24 | | Supported Standards | SMPTE 259M-C (270 Mb/s), SMPTE 292M (1.485 Gb/s) | | Status Indicator | Signal status indicator, Power indicator (indicated by illuminating or muting a green LED) |
