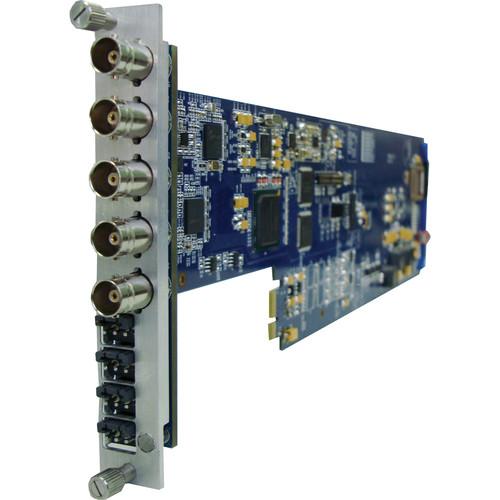

User Manual for Gra-Vue XIO 9030HDEMB-4AUD-FS-3U SDI 4-Channel Analog Audio Embedder with Frame Sync Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9030HDEMB-4AUD-FS-3U SDI 4-Channel Analog
- Product category: Embedders & De-Embedders Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Embedders & De-Embedders
|
User manual for the Gra-Vue XIO 9030HDEMB-4AUD-FS-3U SDI 4-Channel Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The XIO 9030HDEMB-4AUD-FS-3U SDI 4-Channel Analog Audio Embedder with Frame Sync is for use in an XIO series rackmount frame, and will embed two stereo analog audio sources into a single SDI stream. It features two mirrored SDI outputs so that video with newly embedded audio may be delivered to two destinations without requiring a separate distribution amplifier. The SDI audio group and channels to which the audio is embedded to is user-defined, and may be set using DIP switches on the unit. The embedder supports 625i50, 525i60, 720p, 1080i, 1080p, and 1080psf signals and features automatic input detection.
Note: This version is configured for the 3RU frame. There is another model available if you use the 1RU frame. - Reference input with support for the following sync modes: INT, single EXT, and Global EXT
- Automatic signal detection. Supported signals include: 625i50, 525i60, 720p, 1080i, 1080p, and 1080psf
- Audio group to embed to may be selected via DIP switches
- Provides automatic signal equalization to enable cable runs up to 328' when using Belden 1694A cable
- Supports hot swapping of connectors
- Provides LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in real-time using XIO NET via an Ethernet interface
- For use in broadcast television and other professional video applications
In the Box Gra-Vue XIO 9030HDEMB-4AUD-FS-3U SDI 4-Channel Analog Audio Embedder with Frame Sync Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9030HDEMB-4AUD-FS-3U SDI 4-Channel Analog Audio Embedder with Frame Sync in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9030HDEMB-4AUD-FS-3U Specs | SDI Input | Connector: 1 x HD/SD-SDI on BNC female
Impedance: 75 ohm | | Maximum Cable Length | Up to < 328' (100 m) when using Belden 1694A | | Reference Input | Connector: Analog composite video on BNC female
Supported Standards: NTSC, PAL | | Analog Audio Input | Connector: 4 x Balanced 3-pin terminal block
Maximum Level: +24 dBu (0 dBFs) | | SDI Output | 2 x HD/SD-SDI on BNC female
Impedance: 75 ohm
Level: 800 mV ±5% | | Supported Formats | SD: 625i50, 525i60
HD: 1080i50/60, 720p50/60, 1080p24/25/30, 1080psf24 | | Supported Standards | SMPTE 259M-C (270 Mb/s), SMPTE 292M (1.485 Gb/s) | | Status Indicator | Signal status indicator, Power indicator (indicated by illuminating or muting a green LED) |
