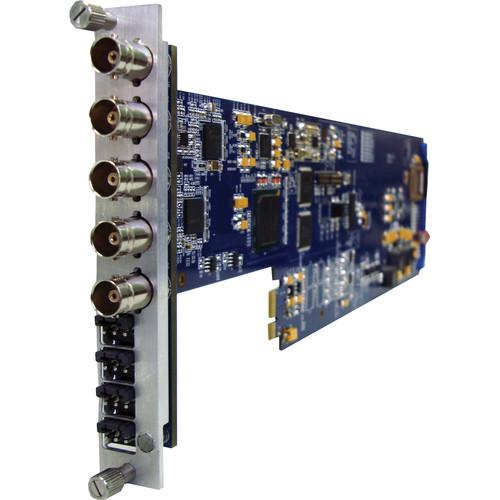

Product description The XIO 9040UC-1U SDI Upconverter for XIO Rackmount Frame from Gra-Vue is an upconverter for broadcast applications that installs in the XIO series rackmount frames. It features and SDI input with loop out and two mirrored SDI outputs for the converted signal.
Note: This version is configured for the 1RU frame. There is another model available if you use the 3RU frame. - The converter supports 625i50 (PAL) and 525i60 (NTSC) with automatic detection of the signal type. It can convert from PAL to NTSC and vice-versa
- Features a dedicated refernce input and frame sync processing so that video can be kept in sync by a common house clock
- Supports three sync modes: INT, single EXT, and Global EXT
- Provides automatic signal equalization to help compensate for information lost do to long cable runs
- Supports AFD and manual image adjustment. Options include: bar, stretch, and crop
- Provides H-phase and V-phase adjustment
- Supports hot swapping of connecting cables
- LED lights indicate the status of signals and power supply
- Support SNMP protocol, and can be managed and monitored in real-time using XIO NET and the frame's Ethernet connection
In the Box Gra-Vue XIO 9040UC-1U SDI Upconverter for XIO Rackmount Frame Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9040UC-1U SDI Upconverter for XIO Rackmount Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9040UC-1U Specs | SDI Input | Connector: 1 x SD-SDI on BNC female
Impedance: 75 ohm
Formats: 525i60, 625i50
Maximum Cable Length: Up to < 328' (100 m) when using Belden 1694A cable | | Reference Input | Connector: 1 x Analog composite video on BNC female
Standard: NTSC, PAL | | Audio Output | None | | SDI Loop Output | Connector: 1 x SD-SDI on BNC female
Impedance: 75 ohm
Formats: 525i60, 625i50
Level: 800 mV ±5%
Jitter: <0.2 UI (100 KHz) | | Converted SDI Output | Connector: 2 x HD-SDI on BNC female -- mirrored output
Impedance: 75 ohm
Formats: 1080i50/60, 720p50/60, 1080p24/25/30, 1080psf24
Level: 800 mV ±5%
Jitter: <0.2 UI (100 KHz) | | Supported Standards | SD: SMPTE 259M-C (270 Mb/s)
HD: SMPTE 292M (1.485 Gb/s) | | Status Indicator | Signal status indicator, Power indicator (indicated by illuminating or muting a green LED) |
