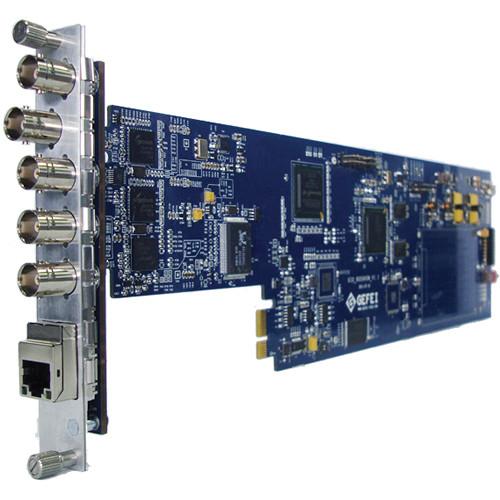

Product description The XIO 9050HSM HD/SD-SDI Signal Monitor from Gra-Vue is an expansion board that fits the 1RU version of the XIO series rackmount frame. It features two HD/SD-SDI inputs, internal digital signal processing (DSP), and is capable of monitoring over 18 separate kinds of quality parameters. It supports video resolutions up to 1080p60, and has a reference input for NTSC/PAL and tri-level sync. LED lights on the module indicate the status of the input signal and power supply, giving you immediate feedback of the device's health. - A reference input and frame sync processing allows the signals to be synchronized to external sources, such as a common house clock. Sync is ideal in live switching scenarios to avoid glitches while cutting
- Support 625i50, 525i60, 720p, 1080i, and 1080p with automatic detection of the input format
- Provides monitoring of 18 parameters as well as video format and AFD information
- Support master and slave sync and signal offset detect
- Connectors may be hot-swapped
- Supports SNMP, for real-time management and monitored across an IP network using XIO NET
- Designed for use in broadcasting system, studios, and other professional video fields
In the Box Gra-Vue XIO 9050HSM HD/SD-SDI Signal Monitor (1RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9050HSM HD SD-SDI Signal Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9050HSM-1U Specs | Sync Input | Connector: 1 x BNC
Signal: NTSC/PAL, Tri-level | | Video Input | 2 x SD/HD-SDI on BNC | | Supported Resolutions | SD: 625i50, 525i60
720p: 50, 60
1080i: 50, 59.94, 60
1080p: 30, 29.97, 25, 24, 23.98, 50, 59.94, 60 | | Control | 1 x Ethernet on RJ-45 (10/100/1000 Mbps) | | Status Indicator | Signal status indicator, power indicator (indicated by illuminating or extinguishing a green LED) |
