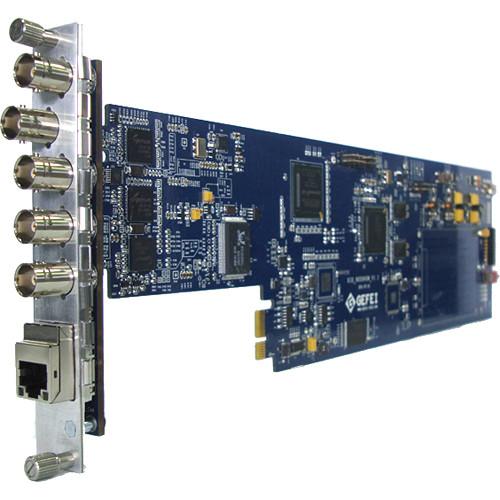

Product description The XIO 9050HSM HD/SD SDI Signal Real-Time Monitoring Module from Gra-Vue features DSP technology to support 2-channel HD/SDI-SDI signal adaptive input. It installs into and is powered by either the XIO-1U or XIO-3U Chassis. It can monitor more than 18 kinds of signal quality parameters. It features a built-in Web server, and you can easily use the IE interface to configure warning thresholds and monitor signal status.
The LED lights on the module indicate the status of the input signal and power supply in order to let you know the status immediately. It supports SNMP, and can be managed and monitored in realtime via the XIO NET Network Management Module (sold separately) via Ethernet. - Provides an individual reference interface and frame sync processing
- Supports 625i 50, 525i 60, 720p, 1080i, and 1080p, with automatic detection of input format
- Can be used to monitor 18 kinds of SDI signal quality parameters
- Can be used to monitor video format and AFD information
- Supports master and slave sync signal offset detect
- LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in realtime via XIO NET (sold separately) via Ethernet
- For use in broadcasting systems, studios, and other professional fields
In the Box Gra-Vue XIO 9050HSM HD/SD SDI Signal Real-Time Monitoring Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9050HSM HD SD SDI Signal Real-Time Monitoring Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9050HSM Specs | | | Interface | 1 x BNC, NTSC/PAL , Tri-level | | | | Interface | 2 x HD-SDI, BNC connector | | Impedance | 75 Ω | | Resolution | SD: 625i 50, 525i 60
HD: 720p 50/60, 1080i 50/59.94/60, 1080p 30/29.97/25/24/23.98, 1080p 50/59.94/60 | | Control | 1 x RJ45 10/100/1000 Mb/s | | | | LED | Power and signal status | | | | Package Weight | 1.333 lb | | Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
