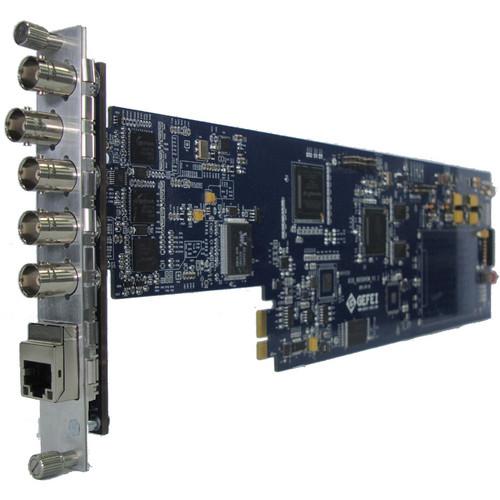

User Manual for Gra-Vue XIO 9070TSG HD SD-SDI Test Signal Generator Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9070TSG HD SD-SDI Test
- Product category: Video & Audio Signal Generators Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Video & Audio Signal Generators
|
User manual for the Gra-Vue XIO 9070TSG HD SD-SDI Test contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The Gra-Vue XIO 9070TSG HD/SD-SDI Test Signal Generator is a modular test signal generator card designed to be used in either the XIO 1U or 3U Modular Platform Chassis (sold separately). When used with the chassis, the modular card generates 2-channel HD/SD-SDI test signals via 2 SDI outputs. It supports virtually all dynamic and static test pattern formats. In addition, it supports 1-channel external BB sync input that allows for frame synchronization. The test signal generator supports SNMP, and can be real-time managed and monitored by the XIO NET Network Management Module (sold separately) via Ethernet. - Supports 625i50, 525i60, 720P50, 720P59.94, 720P60, 1080i50, 1080i59.94, 1080i60 output formats
- External BB input; supports tri-level and analog mode; video H/V phase adjustable
- Built-in Web server to easily control and configure settings
- Supports import of user-defined test pictures via the network
- LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in real-time by XIO NET (sold separately)
- For use in broadcasting systems, OBVANs, studios, and other professional fields
In the Box Gra-Vue XIO 9070TSG HD/SD-SDI Test Signal Generator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9070TSG HD SD-SDI Test Signal Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9070TSG Specs | | | Interface | 1 x BNC, Tri-level | | Standard | NTSC/PAL | | | | Interface | 2 x HD-SDI, BNC | | Impedance | 75 Ω | | Formats | SD: 625i50
HD: 720p60, 720p59.94, 720p50, 1080i60, 1080i59.94, 1080i50 | | Control | 1 x RJ45 10/100/1000 Mb/s | | | | Status Indicators | Power and signal (status indicated by shining or extinguishing of the green LED) | | | | Dimensions | 14.30 x 3.90 x 0.03" (365.00 x 100.00 x 1.00 mm) | | Weight | Approximately 7.05 oz (200.00 g) | | | | Package Weight | 1.333 lb | | Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
