User Manual for Gra-Vue XIO 9070TSG HD SD-SDI Test Signal Generator Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9070TSG HD SD-SDI Test
- Product category: Video & Audio Processing Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Video & Audio Processing
|
User manual for the Gra-Vue XIO 9070TSG HD SD-SDI Test contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|

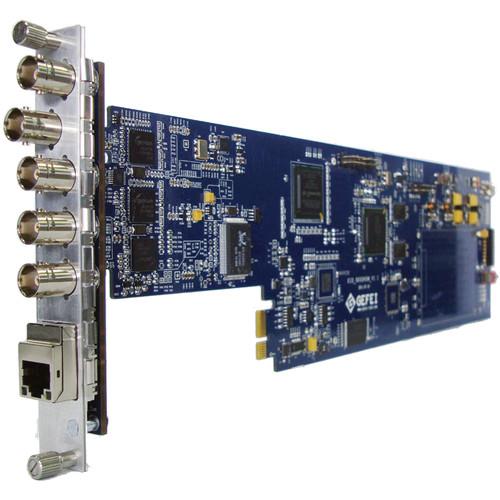

Product description The XIO 9070CLIP HD/SD-SDI Test Signal Generator from Gra-Vue is a modular board for the 3RU version of the XIO frame and can generate a range or standard test patterns as well as upload user-defined test graphics through the Ethernet port. The module is able to continuously and steadily output static or dynamic test graphics in several formats. Plus, the module features a reference input for H/V phase adjustment, allowing the video to be synchronized to an external source, such as a common house clock. - Output supports 1080i, 720p, 625i, and 525i resolutions
- Dual mirrored SDI outputs so you can send the signal to two downstream devices without requiring a distribution amplifier
- Reference input supports composite NTSC/PAL and tri-level sync
- Internal 20-bit digital signal processing
- Generates several standard HD/SD test graphics, and supports custom test graphics and video/audio materials
- LEDs provide real-time indication of signal and power supply status
- User defined-video or graphics may be uploaded through the Ethernet connection, with the result monitorable in real-time
- I/O connectors are hot-swappable
In the Box Gra-Vue XIO 9070TSG HD/SD-SDI Test Signal Generator (3RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9070TSG HD SD-SDI Test Signal Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9070TSG-3U Specs | Reference Input | Connector: 1 x BNC composite
Standards: NTSC, PAL, Tri-level | | SDI Output | Connector: 2 x HD/SD-SDI on BNC connector
Impedance: 75 ohm Standards: SMPTE 259M-C (270 Mb/s); SMPTE 292M (1.485 Gb/s)
Eye Pattern: 800 mV ±10%
Jitter: <0.2 UI | | Supported Resolutions | 625i50, 525i60, 720p, 1080i, 1080p | | Control | Connector: 1 x RJ-45
Bandwidth: 10/100/1000 Mb/s | | Status Indication | Green LED indicates signal and power status | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
