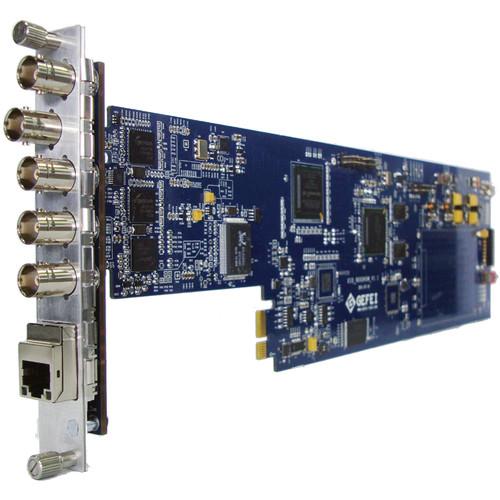

Product description The XIO 9070CLIP HD/SD-SDI Test Signal Generator from Gra-Vue is a modular board for the 1RU version of the XIO frame and can generate a range or standard test patterns as well as upload user-defined test graphics through the Ethernet port. The module is able to continuously and steadily output static or dynamic test graphics in several formats. Plus, the module features a reference input for H/V phase adjustment, allowing the video to be synchronized to an external source, such as a common house clock. - Output supports 1080i, 720p, 625i, and 525i resolutions
- Dual mirrored SDI outputs so you can send the signal to two downstream devices without requiring a distribution amplifier
- Reference input supports composite NTSC/PAL and tri-level sync
- Internal 20-bit digital signal processing
- Generates several standard HD/SD test graphics, and supports custom test graphics and video/audio materials
- LEDs provide real-time indication of signal and power supply status
- User defined-video or graphics may be uploaded through the Ethernet connection, with the result monitorable in real-time
- I/O connectors are hot-swappable
In the Box Gra-Vue XIO 9070TSG HD/SD-SDI Test Signal Generator (1RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9070TSG HD SD-SDI Test Signal Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9070TSG-1U Specs | Reference Input | Connector: 1 x BNC composite
Standards: NTSC, PAL, Tri-level | | SDI Output | Connector: 2 x HD/SD-SDI on BNC connector
Impedance: 75 ohm Standards: SMPTE 259M-C (270 Mb/s); SMPTE 292M (1.485 Gb/s)
Eye Pattern: 800 mV ±10%
Jitter: <0.2 UI | | Supported Resolutions | 625i50, 525i60, 720p, 1080i, 1080p | | Control | Connector: 1 x RJ-45
Bandwidth: 10/100/1000 Mb/s | | Status Indication | Green LED indicates signal and power status | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
