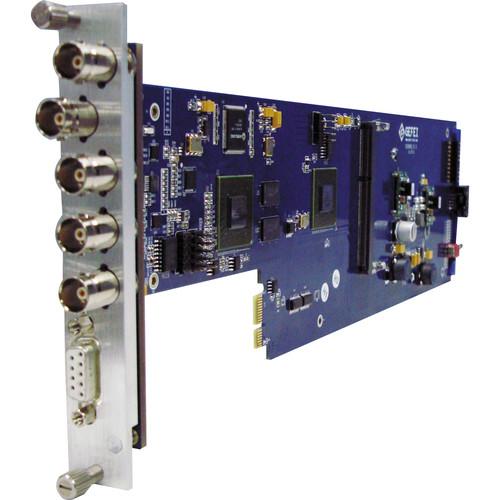

Product description The Gra-Vue XIO 9090DAV Sync Processor is a modular board for installation in the 3RU version of the XIO series rackmount frame. It allows audio and video that is up to 15 frames out of sync to be realigned. There are three mirrored SDI outputs that that you can send the corrected video and embedded audio to several destinations without requiring a separate distribution amplifier. - Auto-switching SD/HD-SDI input
- Supports an A/V relative delay of up to ±15 frames to address sync issues
- Reference input with composite and tri-level support for syncing to an external source, such as a house clock
- Remote operation over LAN supported via XIO NET (SMNP support)
- 20-bit internal processing
- Real-time power and signal status indication
In the Box Gra-Vue XIO 9090DAV HD-SDI Sync Processor (3RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9090DAV HD-SDI Sync Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9090DAV-3U Specs | | | SDI Input | 1 x HD/SD-SDI on BNC female
Impedance: 75 ohm | | Reference Input | 1 x PAL/NTSC/Tri-level on BNC female
Impedance: 75 ohm | | SDI Output | 3 x HD/SD-SDI on BNC female
Impedance: 75 ohm
Eye Pattern: 800 mV ±10%
Jitter: < 0.2 UI | | Supported Resolutions | SD-SDI: 625i50, 525i59.94
HD-SDI:
720p: 50, 59.94
1080i: 50, 59.94, 60
1080p: 25, 29.97, 30 | | Supported Standards | SD-SDI: SMPTE 259M-C; 270 Mb/s
HD-SDI: SMPTE 292M; 1.485 Gb/s |
