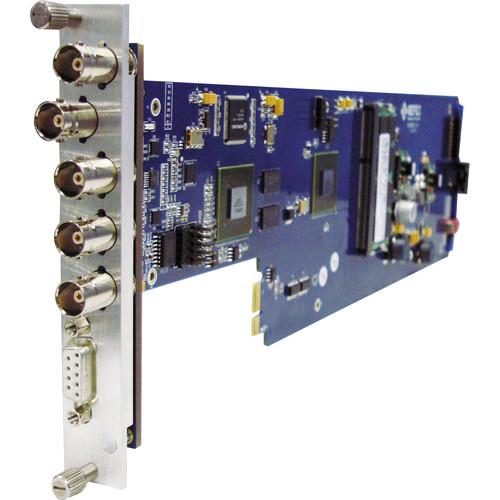

Product description The XIO 9090DLY-HD20S HD/SD-SDI Video Delay for XIO Frame from Gra-Vue delays an HD- or SD-SDI video signal up to 20 seconds and features frame sync. It is part of a modular system, and requires the 1RU version of the XIO frame to act as a host device. Audio separation is possible, meaning any SDI-embedded audio can be delayed separately from the video stream by ±15 frames for situations arising from audio sync issues. The delayed program signal is output through three HD/SD-SDI connectors, allowing multiple downstream devices to be connected without requiring additional distribution hardware. - HD/SD-SDI input resolution auto sensing
- Reference input allows synchronization to an external source, such as a common house clock
- Advanced FPGA (field-programmable gate array) and DSP (digital signal processing) processing technology
- Accurately adjust delay time frame by frame
- Supports horizontal and vertical (H/V) phase adjustment
- Program loop-out when powered off
- LEDs indicate power and video signal status
- Built-in Webserver allows user to edit clip or configure device from a WEB UI
In the Box Gra-Vue XIO 9090DLY-HD20S HD/SD-SDI Video Delay for XIO Frame (1RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9090DLY-HD20S HD SD-SDI Video Delay for XIO Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9090DLY-HD20S-1U Specs | SDI Input | Connector: 1 x HD/SD-SDI on BNC connector
Impedance: 75 ohm
Standards: SMPTE 259M-C (270 Mb/s); SMPTE 292M (1.485 Gb/s)
Maximum Amplitude: >450 mV
Maximum Cable Length SD: <656' (200 m) using Belden 1694A cable
Maximum Cable Length HD: <328' (100 m) using Belden 1694A cable | | Reference Input | Connector: 1 x BNC composite
Standards: NTSC, PAL, Tri-level | | SDI Outputs | Connector: 3 x HD/SD-SDI on BNC connector
Standards: SMPTE 259M-C (270 Mb/s); SMPTE 292M (1.485 Gb/s) | | Supported Resolutions | SD: 625i50, 525i59.94
720p: 50, 59.94, 60
1080i: 50, 59.94, 60 | | Control Interface | 1 x RS-232 via 10/100/1000M TC/IP |
