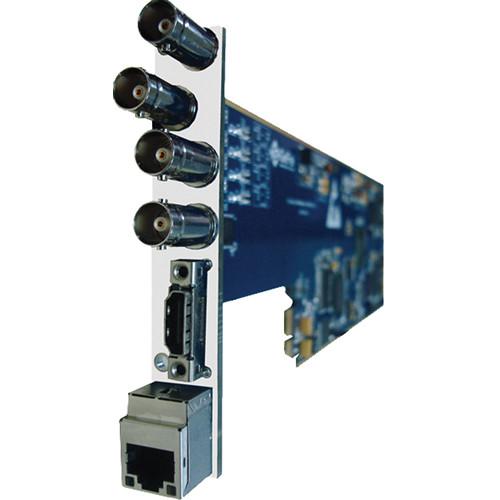

User Manual for Gra-Vue XIO 9900MVS-OUT HD SD-SDI Output Card for Multi-Viewer Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9900MVS-OUT HD SD-SDI Output
- Product category: Multiviewer Accessories Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Multiviewer Accessories
|
User manual for the Gra-Vue XIO 9900MVS-OUT HD SD-SDI Output contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The XIO 9900MVS-OUT HD/SD-SDI Output Card for Multi-Viewer from Gra-Vue is a modular board that installs inside the 3RU version of the XIO rackmount frame. The card combines video from up to four SD-, HD-, or 3G-SDI sources and outputs them on a single HDMI connection at up to 1920 x 1200 (WUXGA) resolution. Along with presets, custom multi-view layouts are possible, and various used-defined graphical overlays can be applied. When two or more cards are used in a single frame each HDMI output will be aware of all of the SDI inputs in the entire system, making it possible to add routing functionality to your multiview application.
The card features an Ethernet port and built-in Web server so that it can be configured an operated remotely across a local network or even over the Internet. It is suitable for a wide range of A/V, digital signage, video production, and broadcast applications. - Supports 525i, 625i, 720p, 1080i, and 1080p input formats and feature automatic input detection
- Pass two selectable channels of SDI-embedded audio to the HDMI output
- HDMI port features threaded sockets so that locking HDMI cables may be used to avoid accidental disconnection
- Flexible output options: 4:3, 16:9, and custom aspect ratios may be selected
- Can display overlay of input format along with AFD information
- Editable dual program UMD and four-channel audio meters display
- Supports video/audio auto detection and alarming for events such as video loss, frozen video, black video, audio silence, and audio overload
- Selectable air timer and countdown timers, with analog and digital clocks types
- Supports customized layouts to suit different applications, such as studio, OB van, production room and more
In the Box Gra-Vue XIO 9900MVS-OUT HD/SD-SDI Output Card for Multi-Viewer (3RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9900MVS-OUT HD SD-SDI Output Card for Multi-Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9900MVS-OUT-3U Specs | | | SDI Input | Connector: 4 x 3G/HD/SD-SDI on BNC connector
Impedance: 75 ohm
3G/HD-SDI Signal
Standards: SMPTE-292M (1.485 Gb/s), SMPTE-425 (2.970 Gp/s)
Return Loss: >15 dB, 5 MHz to 1.5 GHz
SD-SDI Signal
Standard: SMPTE-295M
Return Loss: >15 dB to 270 MHz
Signal Level: 800 mV ±10%
Overshoot: <80 mv
Jitter: <740 ps
Rising and Falling Time: <1500 ps
DC Level: 0V ±500 mV | | Supported Input Resolutions | SD: 625i50, 525i59.94
720p: 50, 59.94, 60
1080i: 50, 59.94, 60
1080p: 23.98, 24, 25, 29.97, 30 , 50, 59.94, 60 | | HDMI Output | Connector: 1 x HDMI type A | | Output Resolutions | 50 ro 60 Hz: 1024 x 768, 1280 x 720, 1280 x 768 1280 x 1024, 1360 x 768, 1400 x 1050 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200 | | Control | Connector 1 x Ethernet on RJ-45
Type: 10/100/1000M (auto-adapting) | | Audio | 2 x SDI audio channels may be embedded in SDI stream | | | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
