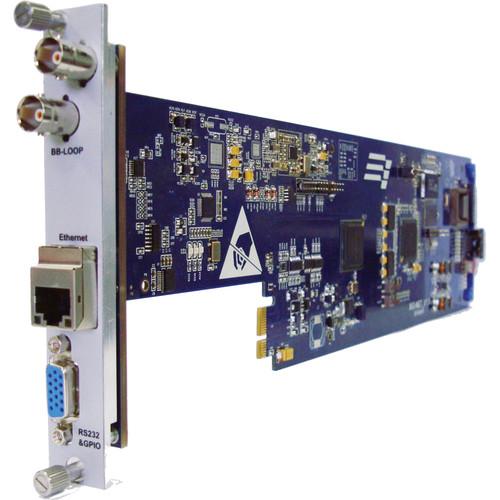

User Manual for Gra-Vue XIO NET Platform Control and Network Interface System Card for 3RU Chassis Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO NET Platform Control and
- Product category: Video & Audio Processing Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Video & Audio Processing
|
User manual for the Gra-Vue XIO NET Platform Control and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The XIO NET Platform Control and Network Interface System Card for 3RU Chassis from Gra-Vue is a processing card which provides an individual reference interface. It is used as a global clock to synchronize all the other modules inside the XIO platform. The XIO NET features a hot-restart button and reset button designed to deal with emergency situations. It adopts the LED display module to show the IP address of the XIO NET.
The XIO NET card provides an RJ45 interface via which the status of the modules can be configured and managed. It can also be monitored and controlled through standard and full SNMP. - Provides an RJ45 interface for 10/100/1000M Ethernet (auto-sensing)
- Allows you to manage and configure the parameters of the modules inside the XIO 3RU platform via Ethernet
- Supports standard and full SNMP
- Provides for an external reference input that is used as global clock to sync all the other modules inside the XIO platform
- Automatically detects the slot position of a module
- Supports hot swapping / hot plugging
- Hot-restart and reset buttons to counter emergency situations
In the Box Gra-Vue XIO NET Platform Control and Network Interface System Card for 3RU Chassis Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO NET Platform Control and Network Interface System Card for 3RU Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO NET-3U Specs | | | Input | Analog composite video | | Interface | 1 x BNC, reference | | Standard | PAL / NTSC | | Impedance | 75 Ω | | | | Type | Reference Loop | | Output Type | Analog composite video | | Output Interface | 1 x BNC, reference loop | | Standard | PAL / NTSC | | Impedance | 75 Ω | | | | Interface | 1 x RJ45 | | Network Type | 10/100/1000M auto-adapting | | | | Interface | 1 x 15-pin Sub-D, RS-232 | | | | Dimensions | Board: 14.5 x 4.0 x 0.5" (36.8 x 10.2 x 1.3 cm)
Panel: 5.25 x 1.0 x 1.0" (13.3 x 2.5 x 2.5 cm) | | Weight | Approximately 3 oz (85 g) |
