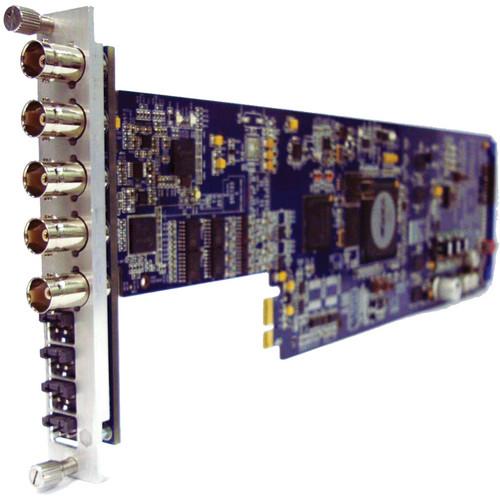

User Manual for Gra-Vue XIO9040UC 1 x 2 SD-SDI to HD-SDI Upconverter & Distribution Amplifier with Frame Sync Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO9040UC 1 x 2 SD-SDI
- Product category: Signal Converters Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Signal Converters
|
User manual for the Gra-Vue XIO9040UC 1 x 2 SD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The Gra-Vue XIO9040UC 1 x 2 SD-SDI to HD-SDI Upconverter & Distribution Amplifier is a modular upconverter and distribution amplifier card designed to be used in either the XIO 1U or 3U Modular Platform Chassis (sold separately). It converts one SD-SDI signal to 2 identical HD-SDI signals with frame sync processing. The module also provides an SDI loop interface for other applications. It supports AFD and manual ratio adjustment (bar/stretch/crop). The advanced de-interlacing technology of this converter generates high-quality HD-SDI signals. It supports 625i 50 and 525i 60 formats and automatic detection of the input format.The LED lights on the module indicate the status of the input signal and power supply to let you know the signal and power status immediately. The upconverter and distribution amplifier supports SNMP, and can be real-time managed and monitored by the XIO NET Network Management Module (sold separately) via Ethernet. - Provides an individual Ref interface and frame sync processing
- Provides 3 kinds of sync mode--INT, single EXT, and Global EXT
- Supports 625i 50 and 525i 60 formats, and automatic detection of input format
- Provides automatic signal equalization
- Supports bi-direction PAL to NTSC conversion
- Supports hot swapping / hot plugging
- Supports AFD and manual ratio adjustment (bar/stretch/crop)
- Allows for flexible adjustment of H-phase and V-phase
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET (sold separately) via Ethernet
- For use in broadcasting system, studios, and other professional fields
In the Box Gra-Vue XIO9040UC 1 x 2 SD-SDI to HD-SDI Upconverter & Distribution Amplifier with Frame Sync Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO9040UC 1 x 2 SD-SDI to HD-SDI Upconverter & Distribution Amplifier with Frame Sync in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9040UC Specs | | | Interface | Input: 1 x SD-SDI, BNC | | Impedance | 75 Ω | | Format | 525i60, 625i50, SMPTE 259M-C 270 Mb/s | | Maximum Length | <656' (200 m) (Belden 1694A) | | | | Input Type | Analog composite video | | Interface | Input: 1 x Ref, BNC | | Standard | PAL/NTSC | | | | Output Interface | 1 x SDI Loop, BNC
2 x HDSDI, BNC | | Impedance | 75 Ω | | Format | SD: 625i50 525i60 SMPTE 259M-C 270 Mb/s
HD: 1080i50/60, 720p50/60 1080p24/25/30 1080psf24, SMPTE 259M-C 270 Mb/s, SMPTE 292M; 1.485 Gb/s | | Level | 800 mV ± 5% | | Jitter | <0.2 UI (100 kHz) | | | | Status Indicator | Signal status indicator and power indicator (Indicated by shining or extinguishing of the green LED) | | | | Dimensions | 14.30 x 3.90 x 0.04" (365.00 x 100.00 x 1.00 mm) | | Weight | 7.2 oz (205.0 g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
