Product description - Grace Design m108 microphone preamplifier

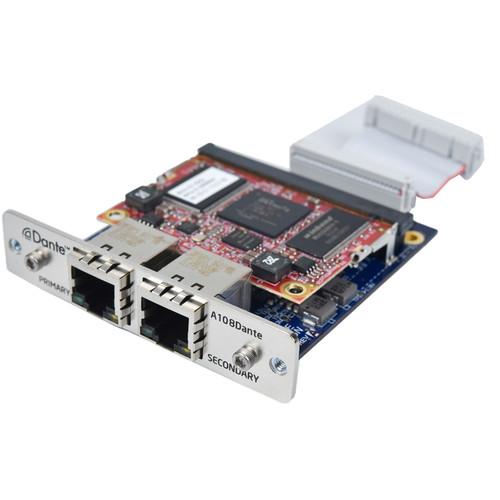

The Grace Design Dante Option Module for m108 Microphone Preamplifier / ADC enables Dante connectivity for your m108 unit. It provides eight channels of outputs and inputs to other Dante-enabled devices, at sample rates up to 192 kHz, and is ideal for use in live, studio, broadcast, and commercial installation applications. This option is powered by the Dante Brooklyn II module, which provides fast synchronization, low-jitter clocking, and ultra-low latency. It allows for four, unique clock architecture concepts, with the module functioning either as a clock master or clock slave. The Dante Option Module features two Gigabit Ethernet ports for operating the m108 in full redundant mode. - Key Features
-
- Allows easy connectivity to a Dante audio network for your m108 Microphone Preamplifier / ADC
- 8-channel A/D option for streaming audio at up to 192 kHz, to other Dante-enabled devices
- Dante Brooklyn II module
- Two Gigabit Ethernet ports allow the m108 to operate in full redundant mode
Clock Architecture Modes - Option 1
-
- Brooklyn II card is Dante clock slave
- ADC clock source is "Dante"
- ADC is clocked from Brooklyn II
- Option 2
-
- Brooklyn II card is Dante clock slave
- ADC clock source is "word" or "word - 75 Ohms"
- ADC is clocked from External Word Clock
- Option 3
-
- Brooklyn II is Dante clock master
- Dante ext. sync is "internal"
- ADC clock source is "internal"
- m108 is System Master using Internal Clock
- Option 4
-
- Brooklyn II is Dante clock master
- Dante ext. sync is "word" or "word - 75 Ohms"
- ADC clock source is "word" or "word - 75 Ohms"
- m108 is System Master using external WC IN
UPC: 823821326834 In the Box Grace Design Dante Option Module for m108 Microphone Preamplifier / ADC Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grace Design Dante Option Module for m108 Microphone Preamplifier ADC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrace Design A108DANTE Specs | Compatibility | Requires m108 Microphone Preamplifier / ADC
Dante audio network | | Channels | 8 x channels at 192 kHz | | Processor | Dante Brooklyn II module
Synchronization: ± 1 µs
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz | | Audio Signal Routing | AUX1: Dante inputs 1-2
AUX2: Dante inputs 3-4
AUX3: Dante inputs 5-6
AUX4: Dante inputs 7-8 | | Ports | 2 x Gigabit Ethernet ports | | | | Package Weight | 0.01 lb | | Box Dimensions (LxWxH) | 0.01 x 0.01 x 0.01" |
