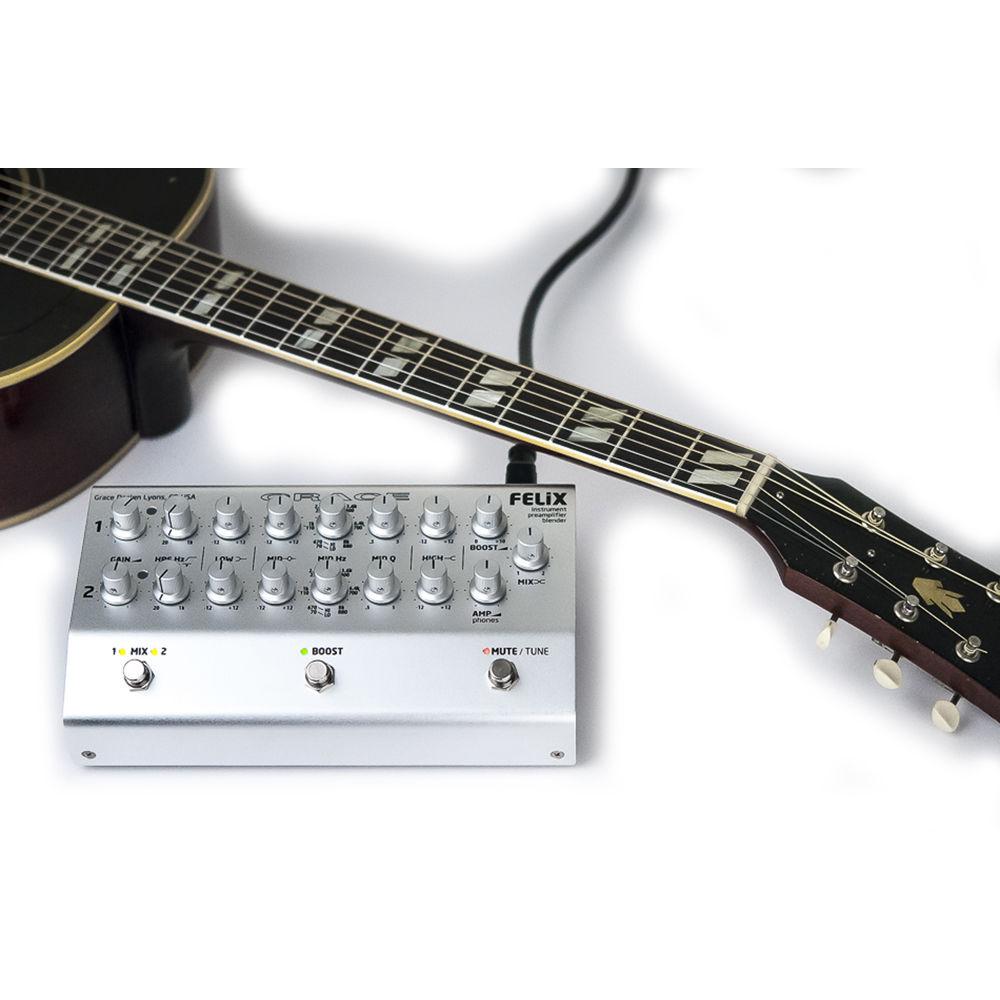

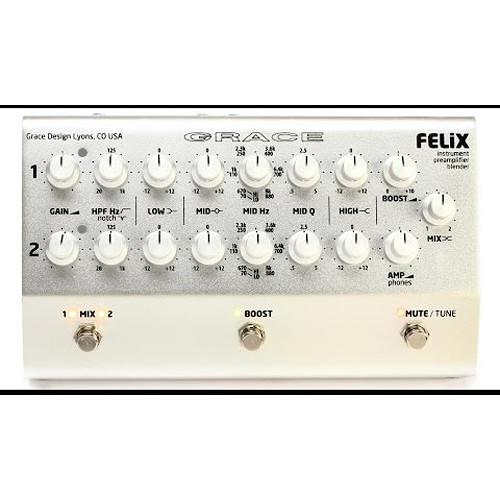

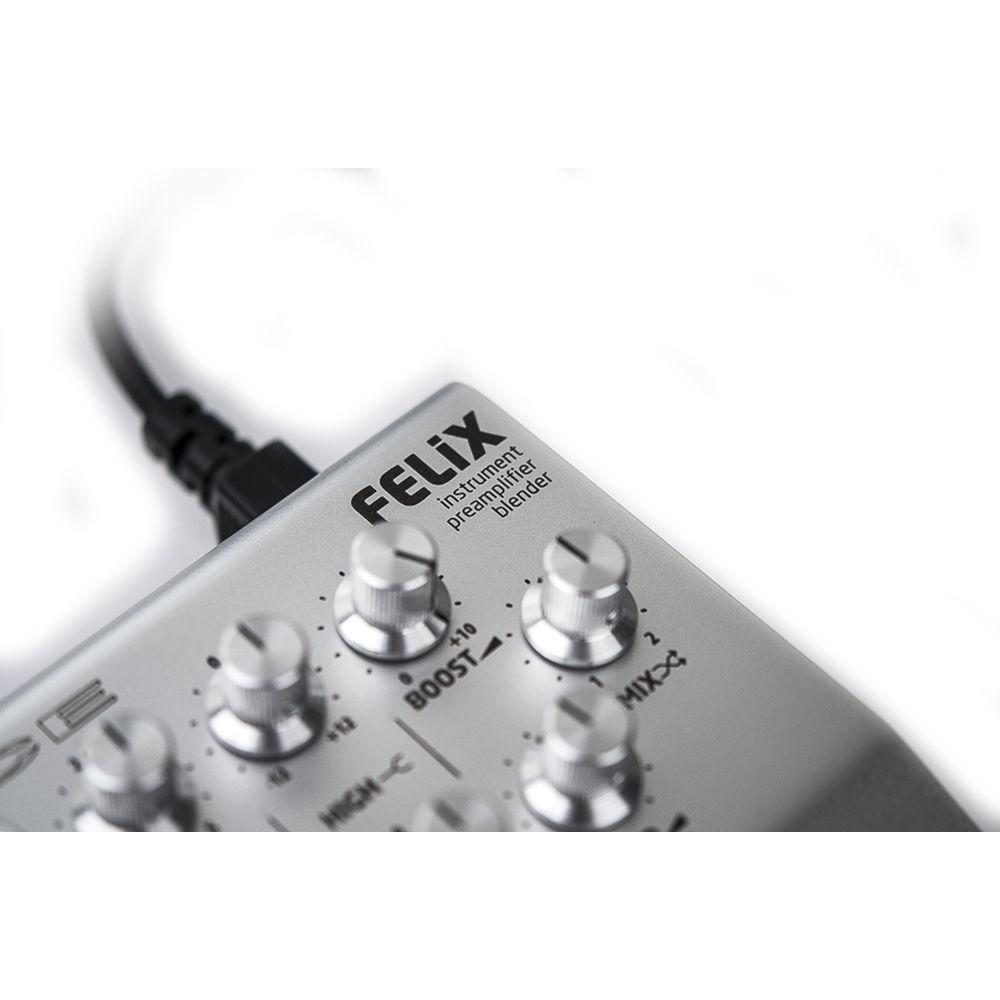

Product description The FELiX from Grace Design is a 2-channel preamp and EQ with blend control, intended for amplifying stringed instruments and microphones. Housed in a portable, black floor-unit chassis made from anodized aluminum and steel, FELiX delivers a high-quality, yet rugged preamplification solution to musicians, engineers, studios, rental companies, and venues.

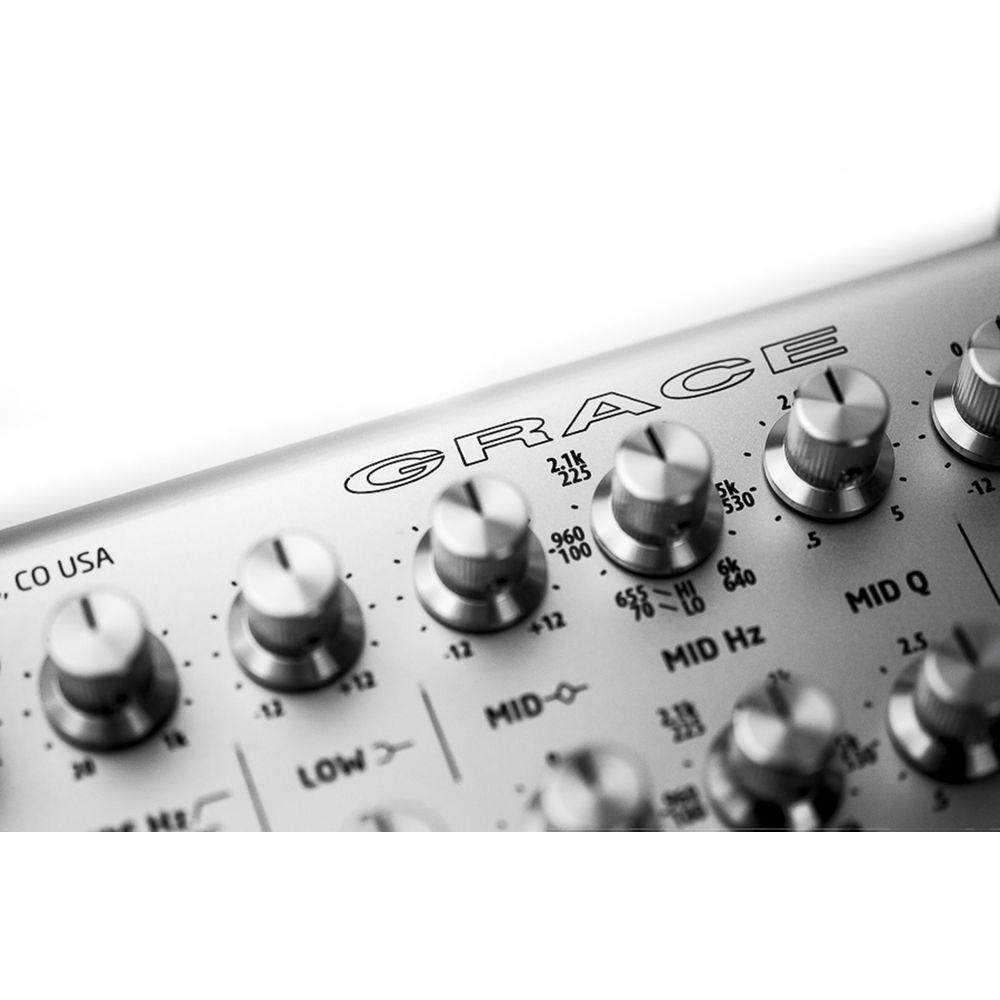

FELiX's EQ section allows simple and intuitive tone shaping. Each channel features a high variable pass filter that cuts 12 dB per octave from 20 Hz to 1 kHz that also can be set as a notch filter for surgical problem correction. Both channels also have parametric midrange controls that cover from 70 Hz all the way to 8 kHz, while fixed low and high controls are carefully voiced for musical shading of bass and treble. - Features:
-
- Open, musical and detailed instrument and mic preamplification for discerning artists and engineers
- 2-channel audio path with blend output control
- m101 style transimpedance microphone preamplifier, no electrolytic capacitors in the signal path
- Precision 0.5% thin film resistors are used in the signal path
- Careful power supply design and grounding yield quiet signal path and professional-level headroom and line driving ability
- Fully ground-isolated DI outputs with high-quality, low-distortion, fully shielded transformers
- Rugged 1/4” connectors with heavy-duty metal bushings
- Powerful, independent EQ on both channels – hi and low shelving, and full parametric midrange
- Mid frequency control has two ranges 70-880 Hz / 670 Hz-8 kHz
- 20 Hz-1 kHz sweepable HPF on both channels, can also be set as notch filter
- A/B footswitch for multiple instrument configurations or soloing different pickups
- Mute/tune footswitch mutes all outputs except dedicated tuner out
- Boost footswitch for variable 10 dB level boost (global)
- DI outputs sources are configurable - Ch1 (mix or Ch1) Ch2 (mix or Ch2)
- Dedicated level-controlled stage amp output (configurable as blend or Ch2)
- Dedicated tuner out, remains hot when unit is muted

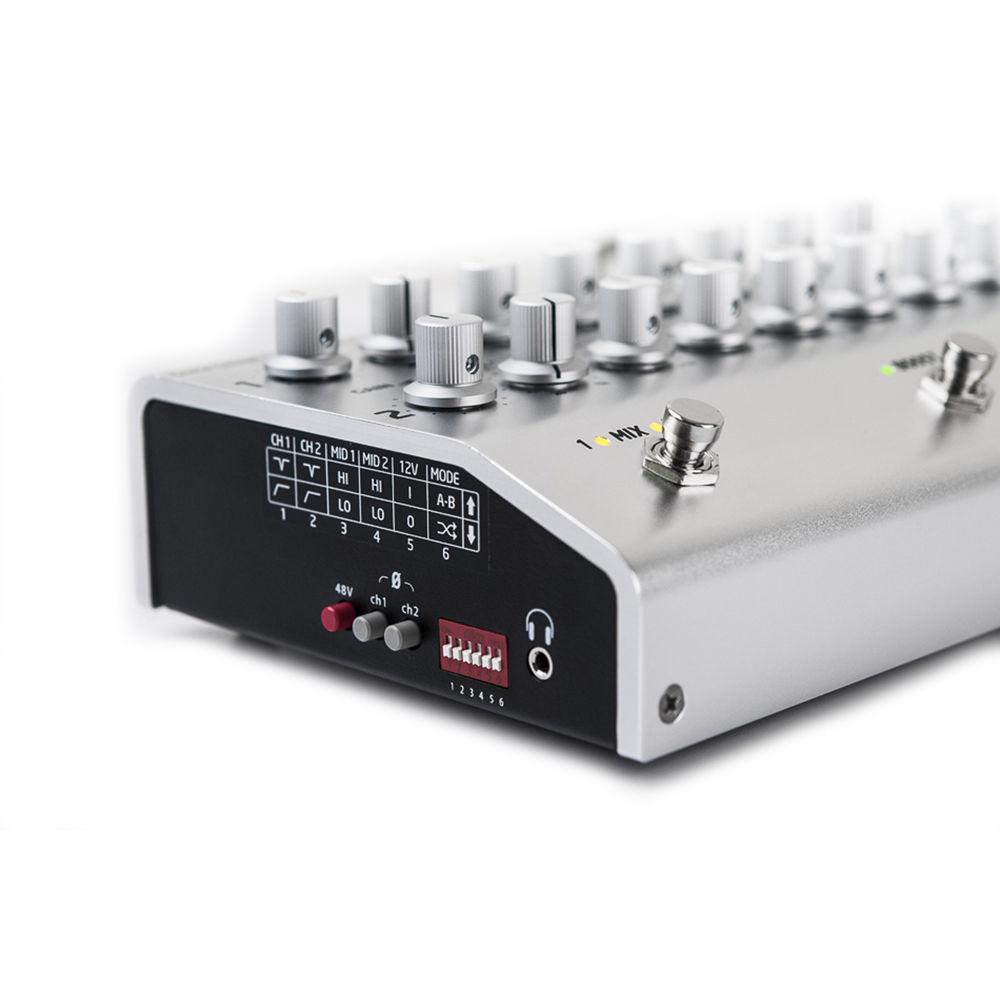

- Side-panel switches for 48V, phase, mid Hz range select, HPF/notch select, 12V and A/B mode select
- 12V mic input power available on Ch1 and Ch2 1/4" inputs
- Phase reverse switch for each channel
- 3 input impedance settings on each channel – Ch1 10 kOhms, 1 MOhms, 10 MOhms / Ch2 332 kOhms, 1 MOhms, 20 MOhms accommodating a wide range of pickup types
- Aux footswitch jack for accessing switch functions if FELiX is mounted in a rack tray or on top of an amp
- Mic stand flange mount screw holes for putting Felix on a mic stand
- 1/8” headphone jack, active when FELiX is muted
- Global TRS effects insert jack for inserting outboard processors into the signal chain
- Universal 100-240 VAC power supply with standard IEC cable – no wall wart - take FELiX anywhere in the world!
- Designed and built in the USA
UPC: 823821030274 In the Box Grace Design FELiX 2-Channel Preamp & EQ with Blend (Black) Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grace Design FELiX 2-Channel Preamp & EQ with Blend in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrace Design FELiX Specs | Gain Range | Channel 1 mic: 21 to 62 dB
Channel 2 instrument: Low gain: 3 to 44 dB / High gain: 21 to 62 dB
Channel 2 instrument: -1.5 to 36.5 dB
Boost: 0 to 9 dB | | THD+N | Mic Input to DI Output (1 kHz, 22 Hz to 22 kHz Bandwidth)
@ 20 dB gain + 10 dBu out: <0.0045%
@ 40 dB gain + 10 dBu out: <0.0050%
@ 60 dB gain + 10 dBu out: <0.010% | | Intermodulation Distortion (SMPTE) | SMPTE / DIN 4:1 7 kHz/50 Hz (mic input to DI output)
@ 40 dB gain + 10 dBu out: <0.05% | | Noise | Referred to input channel 1 mic @60 dB gain 22 Hz-22 kHz BW
50 Ohms source < -128 dB | | CMRR | @ 60 dB gain
100 Hz > 55 dB
1 kHz > 75 dB
10 kHz > 75 dB | | Frequency Response | Mic input to DI Output @ 40 dB gain -3 dB: 20 Hz to 65 kHz
Instrument input to DI Output @ 20 dB gain -3 dB: 20 Hz to 65 kHz | | I/O Impedance | Channel 1 mic input: 8.1 kOhms
Channel 1 instrument input: High: 10 MOhms / Med: 1 MOhm / Low: 10 kOhms
Channel 2 instrument input: High: 20 MOhms / Med: 1 MOhm / Low: 332 kOhms
Insert input: 10 kOhms
DI Outputs: 150 Ohms
Amp, tuner, headphone and insert outputs: 150 Ohms | | Signal / Peak LED Meter | Green threshold: -10 dBu
Red threshold: +10 dBu | | Maximum Input Level | Channel 1 mic: 0 dBu
Channel 1 instrument: Low gain: +21 dBu / High Gain: 0 dBu
Channel 2 instrument: 20.5 dBu | | Maximum Output Level | 100 kOhm load, 0.1% THD
DI outputs: Line: +20 dBu / Mic: -6 dBu
Amp, tuner, headphone and insert outputs: +22 dBu | | High Pass Filter | 20 Hz to 1 kHz @ -12 dB/octave | | Notch Filter | 20 Hz to 1 kHz, > -35dB, Q > 1.0 | | Equalizer | Gain: ±12 dB
Low frequency: Low range: 125 Hz shelving / High range: 250 Hz shelving
Mid frequency: Low range: 70 Hz to 880 Hz / High range: 670 Hz to 8 kHz
Mid frequency Q: 0.5 to 5
High frequency: 2 kHz shelving | | I/O | 2x 1/4" line inputs
1x XLR microphone input
1x 1/4" external footswitch input
1x 1/4" effects insert
1x 1/4" tuner output
1x 1/4" amp output
2x XLR DI outputs

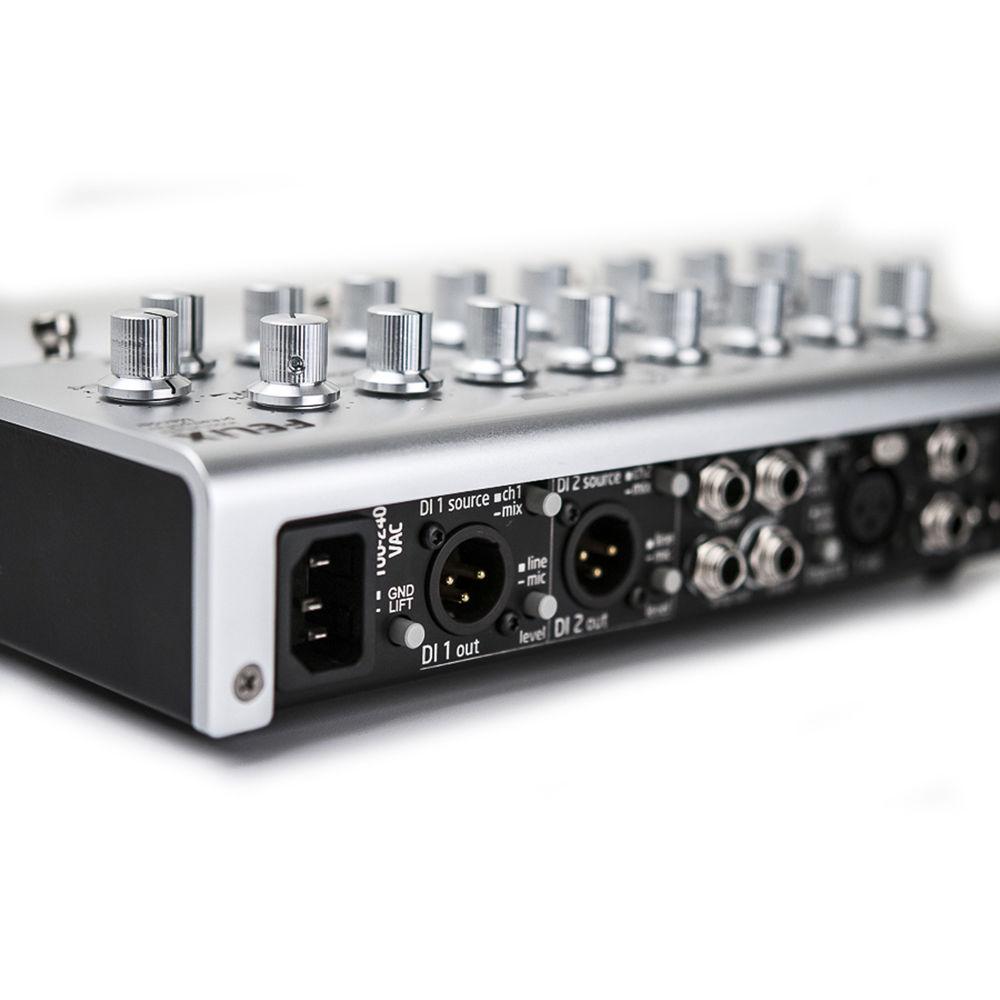

1x 1/8" / 3.5 mm headphone output | | Knobs | 2x GAIN
2x HPF Hz / notch
2x LOW
2x MID
2x MID Hz
2x MID Q
2x HIGH
1x BOOST
1x AMP (phones and tuner)
1x MIX | | Buttons | Ground lift
Channel 1 mic / line
Amp source select
Channel 1 output line / mic level
Channel 2 output line / mic level
Channel 1 DI output source select
Channel 2 DI output source select
Channel 1 48 V phantom power selector
Channel 1 phase reverse
Channel 2 phase reverse | | Switches | Channel 1 impedance select
Channel 2 impedance select
6x DIP controls | | Footswitches | A/B
Boost
MUTE/TUNE | | Output Noise | 22 Hz to 22 kHz BW @ MIN gain
Channel 1 mic input (50 Ohms) to DI output < -88dBu
Channel 1 instrument input to DI output < -88dBu
Channel 2 instrument input to DI output < -98dBu | | External Footswitch | Mute (tip): momentary - normally open - switch to GND < 10 Ohms
Boost / toggle (ring): momentary - normally open - switch to GND < 10 Ohms | | Power Consumption | 100 to 240 VAC 50/60 Hz: 10 W max | | Dimensions (H x W x D) | 3.0 x 9.5 x 5.5" / 76.2 x 241.3 x 139.7 mm | | Weight | 3.2 lb / 1.5 kg | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 16.2 x 14.3 x 5.7" |
