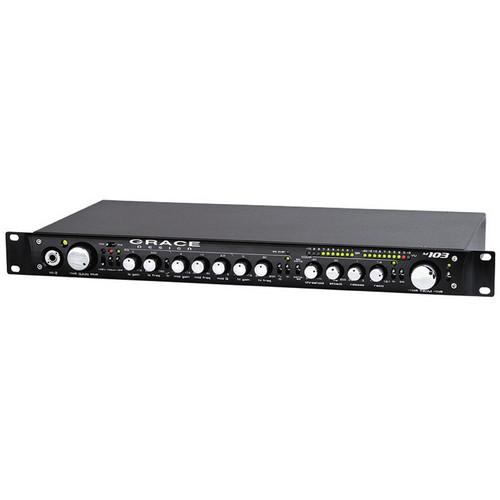

User Manual for Grace Design m103 - Channel Strip Click to enlarge the picture
Contents of the user manual for the Grace Design m103 - Channel Strip
- Product category: Channel Strips Grace Design
- Brand: Grace Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Grace Design Channel Strips
|
User manual for the Grace Design m103 - Channel Strip contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Grace Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Grace Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Grace Design product will considerably shorten its lifespan!
|
Product description The m103 from Grace Design is a powerful tracking tool for virtually any recording situation, featuring a transformerless microphone preamplifier, 3-band EQ and an opto compressor. True to the manufacturer's heritage, the unit delivers exceptional headroom, along with musical detail and clarity. Additional features include a ribbon microphone mode, a 75Hz high-pass filter, and +48V phantom power. The 3 band EQ section is built around single stage parallel tuning architecture, which minimizes circuitry and delivers natural, musical tonal shaping at all frequencies. Controls include a fully parametric mid-band, with shelving and peak modes on the high- and low-bands. The compressor circuit is based on an optical attenuator - the purest, high fidelity gain control mechanism available. It provides gentle limiting to fairly heavy compression, while remaining neutral and transparent. Comprehensive input and output options allow the microphone preamp and EQ/compressor section to be accessed independently of each other, with the order of the EQ and compressor switchable. The compressor controls can be linked for stereo applications, and 10 segment gain reduction and output meters make monitoring signal status simple. Note: This information is preliminary and detailed specifications are not yet available. They will be posted as soon as they become available. - Fast and musical transimpedance microphone preamplifier architecture
- Updated audio path with 0.5% precision metal film resistors
- 12 position gold plated rotary gain switch
- High performance output line driver amplifier and HPF amplifier
- Ribbon microphone mode (also great for dynamic mics)
- Microphone amplifier direct output
- Sealed gold contact relay for Hi-Z input switching
- Relay bypass of phantom power, decoupling capacitors, increased input impedance, and 48V lockout
- 3-band precision EQ, fully parametric mid-band, with peak and shelf mode for the high- and low-bands
- Separate line input for the EQ/compressor section
- LED indicators for +48V, ribbon mode, and high-pass filter
- Powerful 10 segment meters for gain reduction and output level
UPC: 823821300001 In the Box Grace Design m103 - Channel Strip AC Power Cable Five (5) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grace Design m103 - Channel Strip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrace Design m103 Specs | | | Package Weight | 10.45 lb | | Box Dimensions (LxWxH) | 26.0 x 18.2 x 7.2" |
