User Manual for Grace Design m108 8-Channel Remote-Controlled Mic Preamplifier ADC Click to enlarge the picture
Contents of the user manual for the Grace Design m108 8-Channel Remote-Controlled Mic
- Product category: Microphone Preamps Grace Design
- Brand: Grace Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Grace Design Microphone Preamps
 |
User manual for the Grace Design m108 8-Channel Remote-Controlled Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Grace Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Grace Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Grace Design product will considerably shorten its lifespan!
|
Product description - Grace Design m108 microphone preamplifier

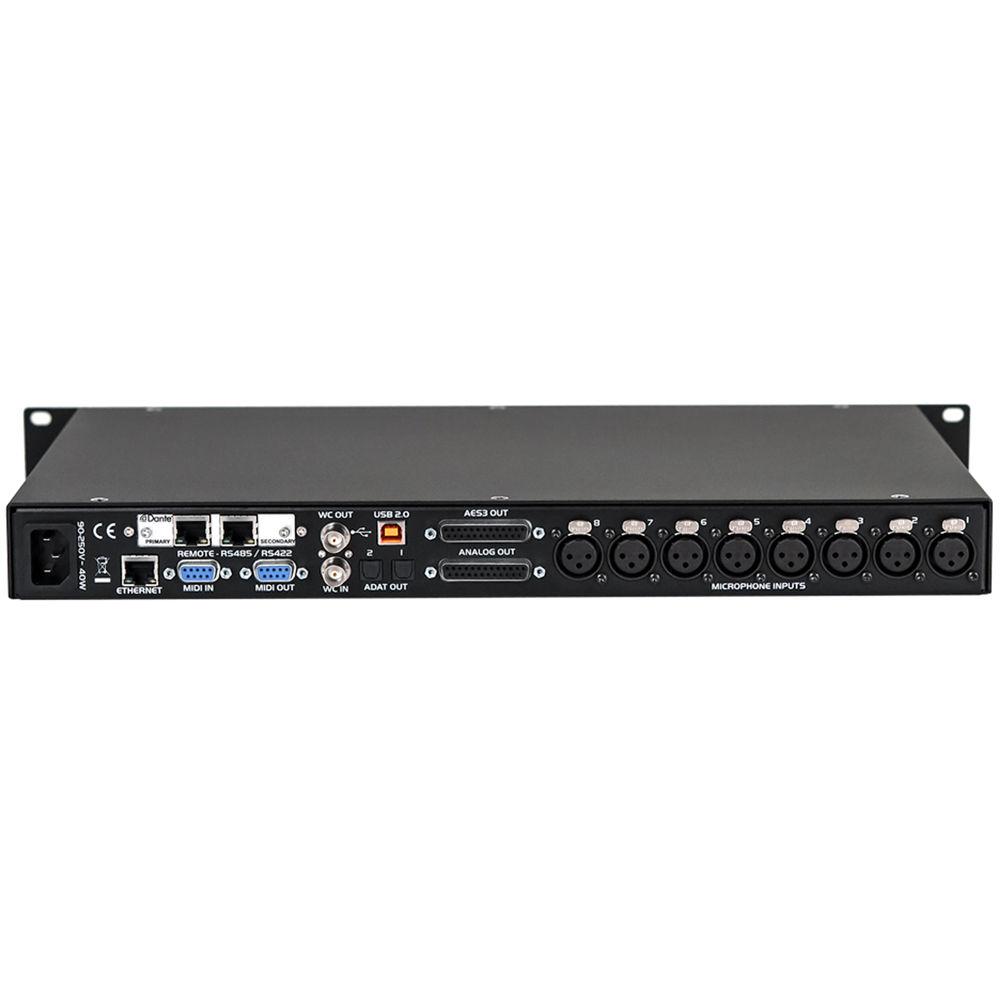

The Grace Design m108 is a rack-mountable eight-channel preamplifier and ADC providing connection points for eight microphones on the rear panel, as well as two Hi-Z instrument inputs on the front. With this unit, you can either achieve analog amplification through its transformerless, transimpedance design, or utilize its on-board conversion stages to route signal into your DAW in a variety of digital output formats, including AES, ADAT, and USB. The unit is also remote-controllable, able to receive commands from Grace's m802 remote control unit or Pro Tools via on-board 485/422 serial / MIDI ports.

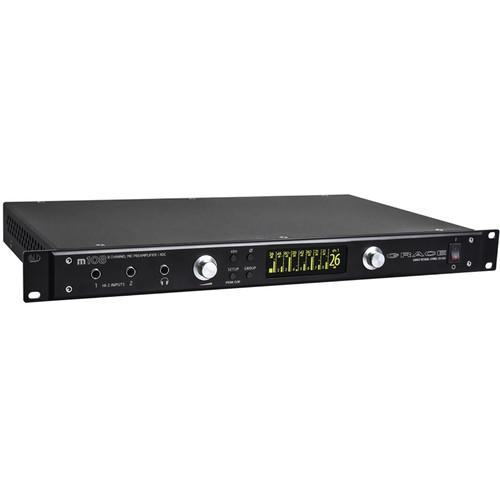

Its push-button rotary knob handles the navigating and instantiation of various operations, though dedicated push-buttons are assigned for essential needs, such as 48V phantom power switching, phase reversal, channel grouping, and clearing peaks on the meter. A headphone output with integrated headphone amplifier allows for low-latency monitoring of assignable channel pairs, or for listening to USB playback from a source-computer.
The m108 features word clock I/Os and optional expansion slots to interface with Dante networks. Furthermore, this device is compatible with m802s, so you integrate this unit into any existing m802 system - Notable Features
-
- 8 channels of balanced analog preamp outputs
- 8 mic preamplifiers
- Gain range of -8 to 74 dB
- Ribbon mic mode
- 8 channels of 192 kHz ADC outputs via AES, ADAT (4ch SMUX) and USB Class 2
- External Word clock in and out
- Reference DAC and headphone amplifier for low-latency monitoring of channel pairs or USB playback from a computer

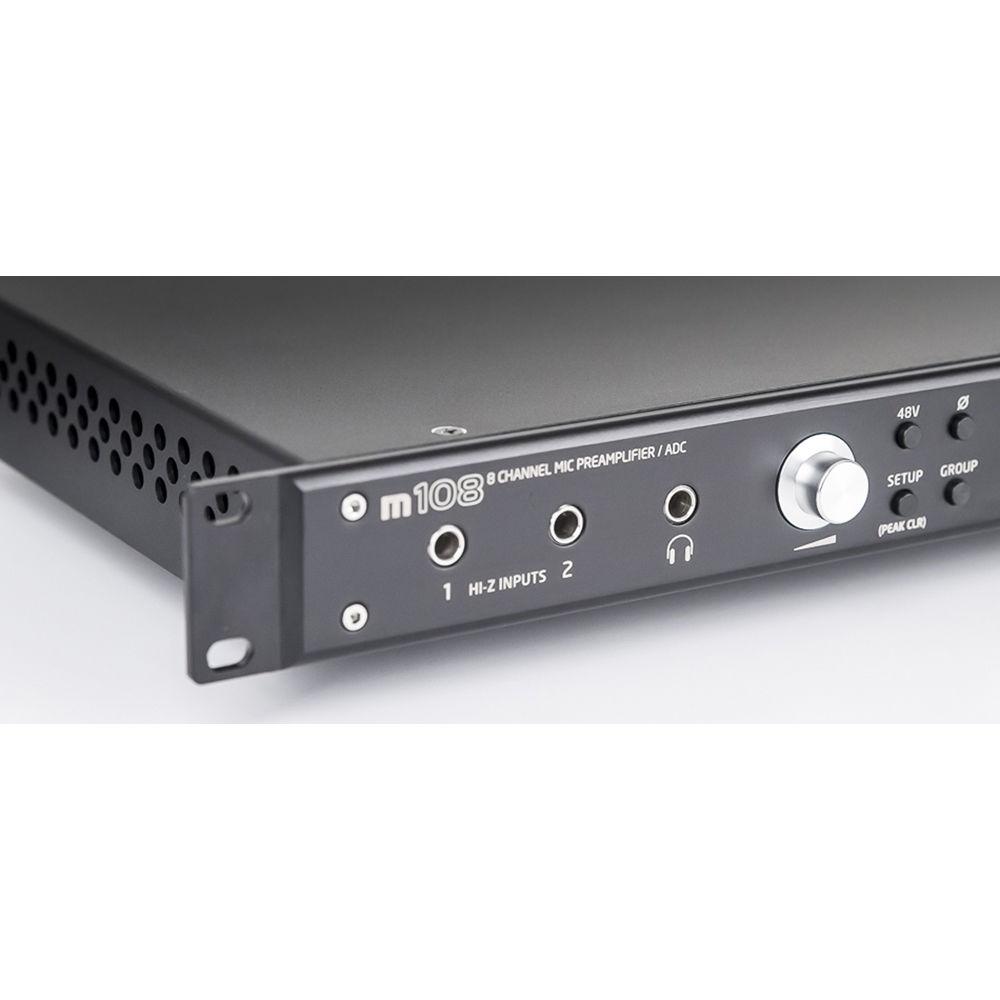

- Channel 1 and 2 Hi-Z inputs on front panel

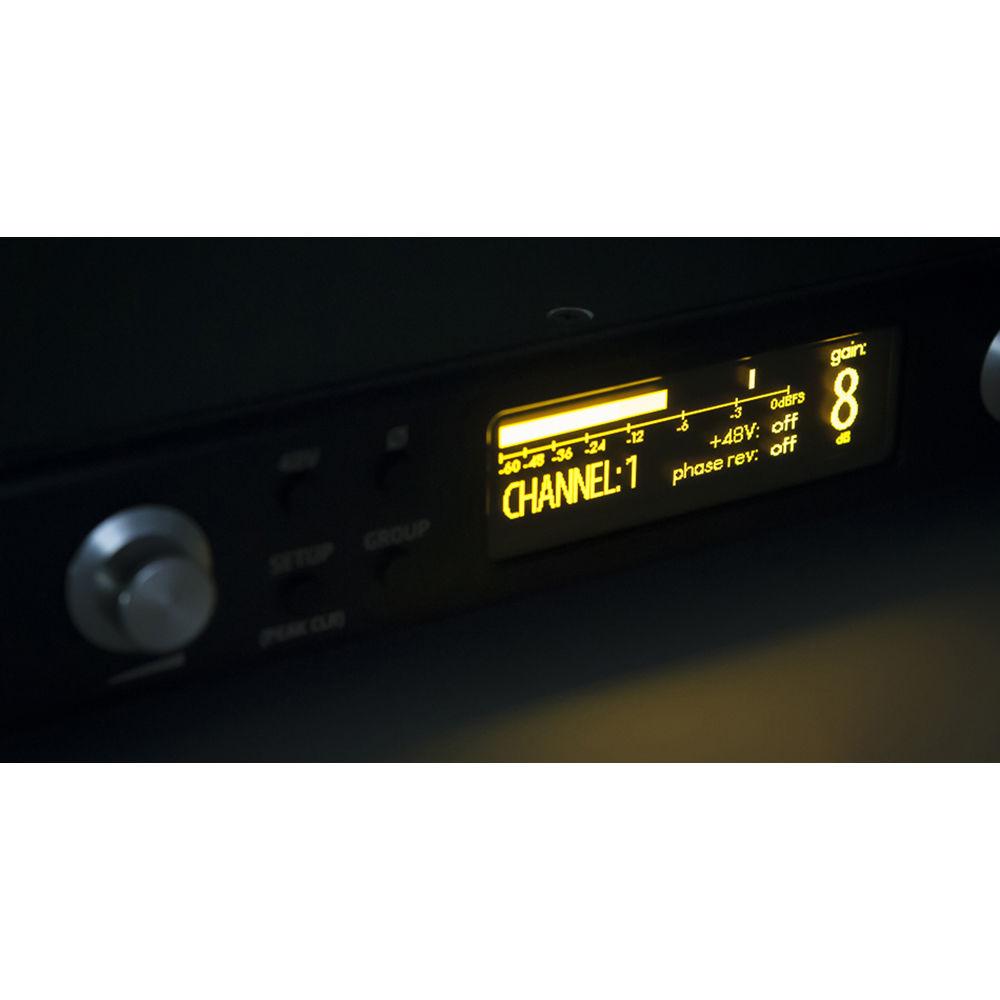

- High contrast, wide viewing angle OLED display for all system parameters and setup menu
- Combination RS 485/422 serial / MIDI ports for control from existing m802 RCU or Pro Tools
- RJ45 Ethernet port for network control
- Expansion slot for optional Audinate / Dante network audio card
- On-board Cooling fan
- Built-in 100-240 VAC power supply
- Made in the USA
UPC: 823821001083 In the Box Grace Design m108 8-Channel Remote-Controlled Mic Preamplifier / ADC Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grace Design m108 8-Channel Remote-Controlled Mic Preamplifier ADC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrace Design m108 Specs | | | Package Weight | 12.6 lb | | Box Dimensions (LxWxH) | 26.25 x 18.2 x 6.7" |
