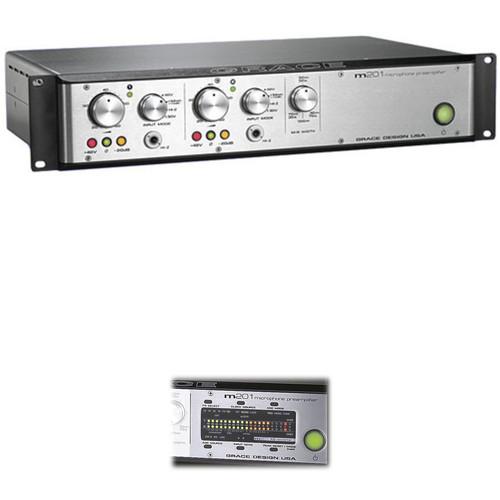

Product description The m201 from Grace Design is a two channel microphone preamp that features massive headroom, ultra-wide bandwidth and an open, musical character. Grace has always been known for producing highly accurate and clean preamps, long favored by classical and live-to-tape/disc engineers. This translates into recorded sounds that possess extreme clarity, and helps preserve the integrity and character of the original source. The preamp provides a hefty amount of gain for most microphones. Ribbon microphones traditionally require higher gain to operate properly, and providing this has often come at the expense of additional noise. The m201 has a dedicated ribbon microphone mode that shifts the gain range up by 10dB without the addition of noise. The mode simultaneously disables phantom power, while bypassing the decoupling capacitors and optimizing the input impedance. Included is M+S decoder circuitry with a built-in width control and a dedicated set of XLR outputs. The main outputs have parallel outputs, allowing the user to send the microphone source to two separate recording devices or mixers. Each channel also features Hi-Z inputs for amplifying electric instruments. Phase reverse switches and a 20dB pad are available per channel, as are bi-color LED peak indicators. - Pre installed 24/192 AD converter with AES/EBU, optical, S/PDIF and Word Clock I/O
- Two-channel microphone preamp utilizing a fully balanced, transformerless design
- Ribbon microphone mode boost the overall input gain by 10dB, while deactivating 48V phantom power
- Dual parallel XLR outputs for each channel
- Front panel DI/instrument inputs
- Precision, twenty-four position, gold contact rotary-switch gain controls
- No electrolytic capacitors in the signal path
- Sealed gold contact relays for all signal switching
- High current outputs drive long cable runs
- Regulated linear power supply with custom wound toroidal transformer
- DPA microphone 130V phantom power option available
In the Box Grace Design M201 Microphone Preamp AC Power Cable Five (5) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grace Design M201 Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrace Design M201 Specs | Number of Channels | 2 | | Inputs | 2 x XLR
2 x 1/4" TRS phone Instrument DI (accepts either TRS or TS connectors) AES/EBU
Optical Toslink S/PDIF
Word Clock | | Output | 4 x XLR
2 x XLR M-S Output AES/EBU
Optical Toslink S/PDIF
Word Clock | | Phantom Power | Yes, individually switchable | | Multi Function | No | | Gain Range | 18dB to 64dB, in 2dB steps
28dB to 74dB in 2dB steps, ribbon mode | | Maximum Output Level | +28dBu, 1kHz with 100KΩ load | | Frequency Response | 4.5Hz to 350kHz, +/-3dB @ 40dB gain with 50Ω source | | Noise | -123dB, @ 60dB gain with 600Ω source | | Dimensions (WxDxH) | 19 x 10 x 3.5" (483 x 254 x 90mm) | | Weight | 16.5 lbs (7.5 kg) | | Specialties | Capable of M-S recording |
