GraLab Model 170 60-Hour Timer

Search your instruction manual in PDF to download

User Manual for GraLab Model 170 60-Hour Timer

Click to enlarge the picture
GraLab Model 170 60-Hour Timer Contents of the user manual for the GraLab Model 170 60-Hour Timer
  • Product category: Enlarger Accessories GraLab
  • Brand: GraLab
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for GraLab Enlarger Accessories

User manual for the GraLab Model 170 60-Hour Timer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any GraLab product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official GraLab user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a GraLab product will considerably shorten its lifespan!



Product description

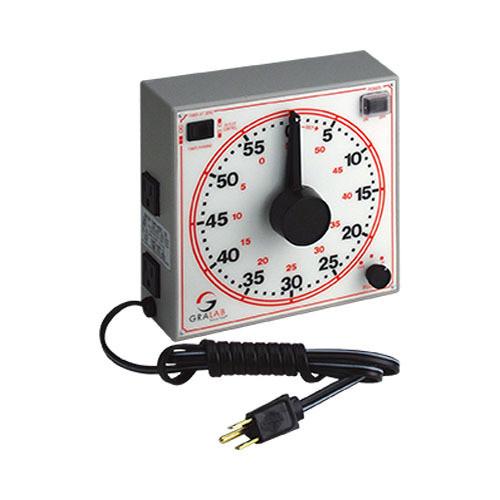

The GraLab Model 170 60-Hour Timer offers precise timing for industrial and laboratory work with minute- and hour-hand settings. Two 3-wire receptacles enable you to automatically switch external appliances. Control one appliance with a switch that can either make or break a circuit at zero. The other receptacle is independent of the switch and will always break the circuit at zero. Large numerals on a 6.5" face are easy to read. The outer ring indicates elapsed time, while the inner circle may be used as a stop clock. Variable volume control enables you to adjust the buzzer alarm so it can be heard above ambient noise levels or make a quieter sound.

Rubber base pads, wall mounting keyholes and a recessed hand grip on the sturdy polycarbonate case give you multiple placement options. There's also a permanent plastic boot over the power and outlet control switches to prevent contamination or corrosion.
  • Two 3-wire receptacles enable you to automatically switch external appliances. Control one appliance with a switch that can either make or break a circuit at zero. The other receptacle is independent of the switch and will always break the circuit at zero
  • Large numerals on a 6.5" face are easy to read. The outer ring indicates elapsed time, while the inner circle may be used as a stop clock
  • Variable volume control enables you to adjust the buzzer alarm so it can be heard above ambient noise levels or make a quieter sound
  • Rubber base pads, wall mounting keyholes and a recessed hand grip on the sturdy polycarbonate case give you multiple placement options
  • Permanent plastic boot over the power and outlet control switches to prevent contamination or corrosion
UPC: 096727675195 In the Box GraLab Model 170 60-Hour Timer
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the GraLab Model 170 60-Hour Timer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    GraLab GR170 Specs

    Construction Polycarbonate
    Time Range 1 minute - 60 hours
    Accuracy +/- 0.015% at maximum setting
    Voltage Input: 100-130 VAC, 60 Hz
    Output: 120 VAC
    Maximum Wattage (Load) 600 W
    Maximum Resistive Load 1200 W
    Max Motor Load 1/3 HP
    Approvals UL and cUL
    Dimensions 7.5 x 7.5 x 2.5" / 19 x 19 x 6.4 cm
    Face: 6.5" / 16.5 cm
    Weight 3.0 lb / 1.4 kg
    Package Weight 2.625 lb
    Box Dimensions (LxWxH) 11.85 x 9.5 x 5.4"
