User Manual for GrandView Reference Series Cyber Integrated Tab-Tension 65 x 116" Motorized Screen

Click to enlarge the picture
GrandView Reference Series Cyber Integrated Tab-Tension 65 x 116" Motorized Screen Contents of the user manual for the GrandView Reference Series Cyber Integrated Tab-Tension
  • Product category: Electric Screens (Wide Formats) GrandView
  • Brand: GrandView
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for GrandView Electric Screens (Wide Formats)

User manual for the GrandView Reference Series Cyber Integrated Tab-Tension contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any GrandView product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official GrandView user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a GrandView product will considerably shorten its lifespan!



Product description

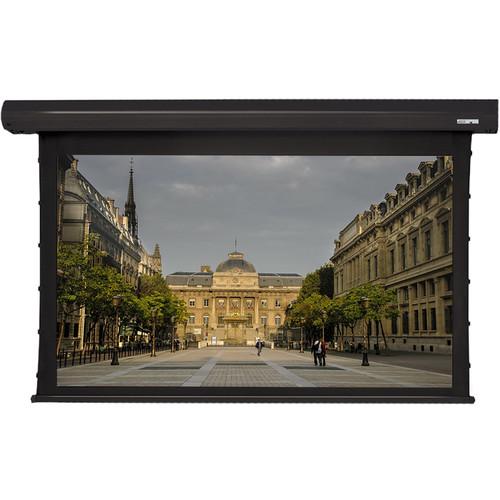

The black Reference Series Cyber Integrated Tab-Tension 65 x 116" Motorized Screen from GrandView can be wall or ceiling mounted. A retractable motorized screen, it is ideal for applications where you want the screen out of the way when not in use. It includes an IR remote as well as a wired controller. Additional control modules (available separately) can be used to further extend the screen's control options.
    WB-5 PS Series High Definition Matte White Screen Surface
  • The WB-5 fabric has a similar base features as the WW-3 fabric but features a unique layer of specially designed micro diamond patterns on the surface. This unique feature is designed to enhance picture quality and color while reducing any glare and imperfections. Matte White is a versatile screen surface, ideal in settings where ambient light is controlled. It features a viewing cone of 160° and unity gain. Black backing helps ensure no light penetration from behind the screen. The surface is fire-resistant and can be cleaned with mild soap and water
    Reference Series (RSS) Screen
  • As part of GrandView's Reference Series, this screen features ISF (Imaging Science Foundation) certification. This certification means the screen meets minimum standards for color accuracy and black reproduction. In addition, the screen carries a 5-year limited warranty along with Immediate Advanced Replacement if damaged in transit
    Included IR Remote Control
  • Allows you to raise and lower the screen over a distance of up to 26' line-of-sight
    Wired Remote / Wall Switch
  • The wired remote is ideal for permanent placement, such as on a conference table or mounted to the wall. Using a 6P6C ("phone jack") style connector, the control switch supports custom cable lengths
    Low Voltage Control (LVC)
  • An LVC port allows your projector to trigger screen lowering/raising when the projector is switched on or off
    Optional RS-485 / USB Interface
  • For extended screen control and functionally, you can use the separately available Central Control Adapter with RS-485 and USB interfaces. This adapter plugs directly into the screen's 6P6C control interface in place of the regular wired remote. This allows you to operate the screen remotely via a computer or automation system such as Crestron. In addition, the Central Control Adapter features surface-panel buttons for local operation
    Power Synchro Relay
  • For projectors without LVC, this separately available module will notify the screen when the projector is turned on or off

Additional Features

  • An aluminum alloy casing designed to provided a lightweight yet rigid structure
  • The sliding installation helps simplify initial positioning of the screen
  • Tensioning helps ensure a flat surface for optimal image detail
UPC: 857123006200 In the Box GrandView Reference Series Cyber Integrated Tab-Tension 65 x 116" Motorized Screen (120V)
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the GrandView Reference Series Cyber Integrated Tab-Tension 65 x 116" Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    GrandView RMI135HB5B Specs

    Front/Rear Projection Front
    Aspect Ratio 16:9
    Style Wall and ceiling
    Viewing Area 65.0 x 116.0" / 165.1 x 294.6 cm
    Diagonal 135.0" / 342.9 cm
    Gain 1.0
    Viewing Angle 160 degrees
    Tensioned Yes
    Motor Standard
    Included Controls IR remote
    Voltage 120 VAC/60 Hz
    Package Weight 92.5 lb
    Box Dimensions (LxWxH) 151.0 x 5.5 x 5.5"
