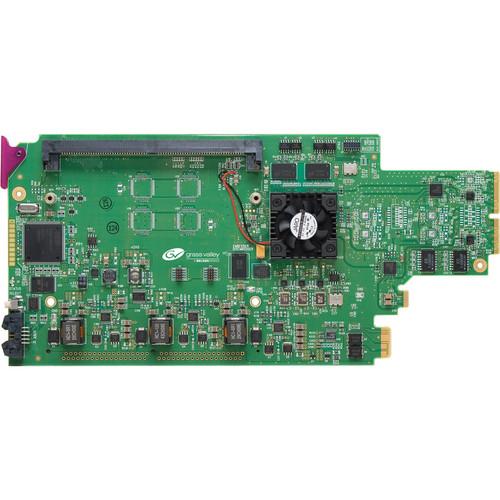

Product description The FRS-3901 from Miranda is a highly integrated module for the Miranda Densité 3 frame. It offers frame synchronization and video/audio processing, including color correction and delay, for 3G, HD and SD signals in 3G/HD/SD hybrid plants. It features an advanced embedded audio processor which can simultaneously process up to 32 channels of audio (16 channels of embedded audio from the video plus others generated internally).
This card requires an associated rear connector panel, sold separately, for installation into the Densité 3 frame. Three different rear connector panels are available: the FRS-3901-3SRP single-slot-width panel, the FRS-3901-3SRP-R single-slot-width panel with integral bypass relay, and the FRS-3901-3SRP-F single-slot-width panel with fiber I/O.
Functions include downmixing, proc amp, channel shuffling and mixing. Options include automatic loudness control (ALC), dynamic processing (limiter, compressor and expander) and loudness measurement. The new loudness measurement option allows the measurement and logging of up to four audio programs with iControl loudness monitoring software to analyze and report compliance with respect to various loudness regulations around the world.
The FRS-3901 will pass and delay automatically all 32 internal audio channels to preserve lip sync between the channels. Each channel can be delayed independently to correct any lip sync issues. All audio channels can be mixed and shuffled to provide 16 channels for embedding in the video output. - Video
- - 3G/HD/SD frame synchronizer, delay and line sync
- Supports 3 Gb/s level A (mapping 1) and level B
- Flexible HD/SD/URS reference input
- Video delay up to 15 frames
- Audio/video de-glitcher to handle video hot switch at the input
- Automatic detection of input video loss and switchover to local grey for continuity of embedded audio
- Built-in proc amp with YUV/RGB color correction
- Bypass relay with FRS-3901-3SRP-R rear module
- Optional optical fiber module I/O with FRS-3901-3SRP-F rear
- Compatible with iControl end-to-end A/V fingerprint analyzer for lip sync error detection and measurement - Audio
- - Full audio shuffling and mixing on a channel basis
- 32 channels internal audio processing
- Audio 5.1 surround downmix to Lt/Rt or Lo/Ro
- Optional on-board automatic loudness control with Grass Valley Wideband processing
- Optional loudness measurement of up to 4 audio programs and logging with iControl
- Loudness compliant to EBU R128, ATSC A/85 and ARIB TR-B32 (up to ITU-R BS.1770-3)
- Audio dynamic processor option (compressor/limiter/expander)
- Automation capabilities based on audio signal type detection
- Audio delay adjustments of up to 2 seconds to compensate for lip sync issues
- On-board socket for 1 optional module expansion: Dolby E and Dolby Digital decoder, Dolby Digital and Dolby Digital Plus encoder, Dolby E encoder, Linear Acoustic upMAX, Linear Acoustic AEROMAX automatic loudness control - Metadata
- - AFD (SMPTE-2016), VLI (RP-186) and WSS insertion
- Audio metadata insertion and extraction (SMPTE 2020-A)
- RS-422 serial data input and output to carry audio metadata
- 3 GPI inputs and outputs that can be inserted or extracted in the timecode user bits (They can also be used for automation, user preset recall and loudness reset) In the Box Grass Valley 3G/HD/SD Frame Synchronizer Card with Embedded Audio Processor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley 3G HD SD Frame Synchronizer Card with Embedded Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley FRS-3901 Specs | Video Input / Output | Signal (1):
SMPTE-259M-C (270 Mb/s), SMPTE-292M
(1.485, 1.485/1.001 Gb/s), SMPTE-424M
(2.970, 2.970/1.001 Gb/s)
Supported Formats:
SD: 480i59.94, 576i50
HD: SMPTE-274M: 1080i59.94, 1080i50
HD: SMPTE-296M: 720p59.94, 720p50
3G: SMPTE-425M level A (mapping 1), level B: 1080p59.94, 1080p50
Cable Length:
984 ft (300 m) Belden 1694A at 270 Mb/s
492 ft (150 m) Belden 1694A at 1.485 Gb/s
393 ft (120 m) Belden 1694A at 2.970 Gb/s
Return Loss:
> 15 dB up to 3 GHz
Jitter:
HD/SD: < 0.2 UI
3G: < 0.3 UI
Cable length and return loss specifications will be reduced when using the FRS-3901-3SRP-R rear connector. Refer to the manual for more details. | | Reference Input | Signal:
SMPTE 170M/SMPTE 318M/ITU 624-4 blackburst
SMPTE 274M / SMPTE 296M tri-level sync
Return Loss:
> 35 dB up to 5.75 MHz
Cable length and return loss specifications will be reduced when using the FRS-3901-3SRP-R rear connector. Refer to the manual for more details. | | Optical | Signal: Refer to SFP module specifications | | GPIO | Signal (3):
Contact closure to ground
Connector:
RJ45
Direction:
Bidirectional (application specific) | | RS-422 | Signal (2):
RS-422
Input Level:
300 mVp-p (min)
Output Level:
3 Vp-p (min)
Rate:
115, 200 Bd | | Video Processing | Signal Path:
10 bits
Processing Delay:
1 frame
Additional Delay:
Up to 15 frames upon user selection | | Audio Processing | Quantization:
24 bits
Sampling:
48 kHz, synchronous
Audio Delay:
Up to 2s (1 ms steps) | | Power | 12.5 W |
