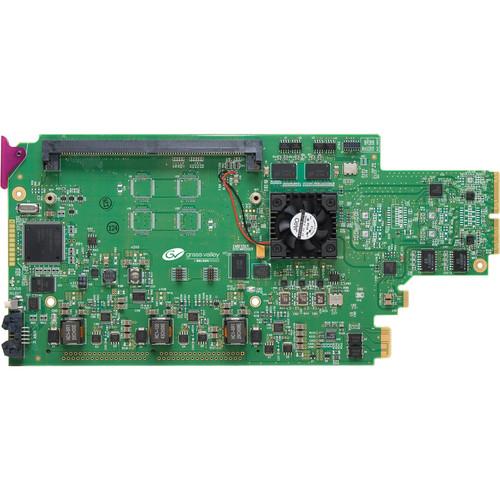

Product description The Miranda LNS-3901 is a high density 3G/HD/SD line synchronizer card for the Miranda Densité 3 Frame, sold separately. It's capable of handling hot switches between sources of the same format and phased by less than 10 lines compared to the reference. The output timing can be programmed from 1/2 to 10 and 1/2 lines after the 0H of the reference. The reference signal can be an analog blackburst, tri-level sync, or the internal URS frame reference signal provided by the REF-1801. - Key Features
- - 3G/HD/SD input
- Supports 3Gb/s level A and level B (dual link)
- Automatic detection of video input format
- Flexible external reference or internal URS frame reference input
- Clean output on video input "hot switches" within a 10-line window
- Output timing can be adjusted from ½ to 10½ lines after reference
- Automatic pass-through of all ancillary data, VBI and embedded audio
- Removes high and low frequency jitter out of the video signal
- Bypass relay on the -R rear module In the Box Grass Valley 3G/HD/SD Line Synchronizer Card Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley 3G HD SD Line Synchronizer Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley LNS-3901 Specs | Video Input/Output | Signal:
SMPTE-259M-C (270 Mb/s)
SMPTE-292M (1.485, 1.485/1.001 Gb/s)
SMPTE-424M (2.970, 2.970/1.001 Gb/s)
Supported Formats:
SD: 480i59.94, 576i50
HD: SMPTE-274M: 1080i59.94, 1080i50
HD: SMPTE-296M: 720p59.94, 720p50
HD: 1080p23.98, 1080p23.98SF, 1080p25, 1080p29.97
3G: 1080p59.94, 1080p50
SMPTE-425M level A, Level B (dual link)
Cable Length:
984 ft (300 m) Belden 1694A at 270 Mb/s
492 ft (150 m) Belden 1694A at 1.485 Gb/s
393 ft (120 m) Belden 1694A at 2.970 Gb/s
Return Loss:
> 15 dB up to 1.5 GHz
> 10 dB up to 3 GHz
Jitter:
HD, SD: < 0.2 UI
3G: < 0.3 UI
Cable length and return loss specifications will be reduced when using the second output of LNS-3901-3SRP-R rear connector panel. | | Reference Input | Signal:
SMPTE 170M / SMPTE 318M/ITU 624-4 blackburst
SMPTE 274M / SMPTE 296M tri-level sync | | Video Processing | Signal Path:
10 bits
Latency:
SD: 7.4 μs
HD: 2.7 μs
3G: 1.4 μs | | Power | 11 W |
