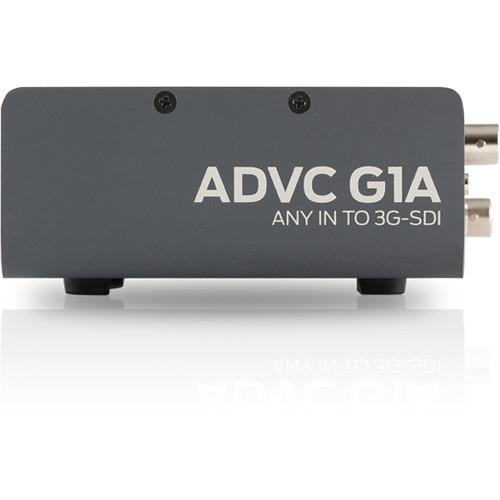

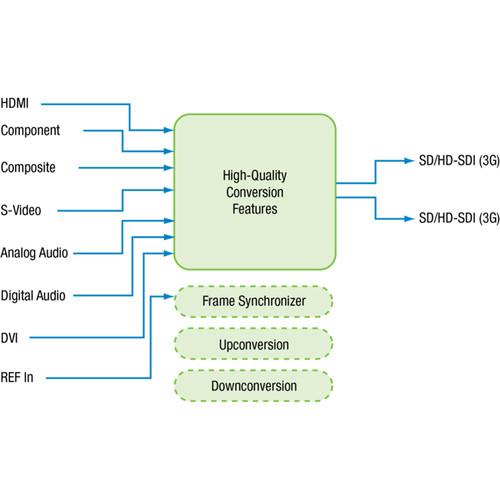

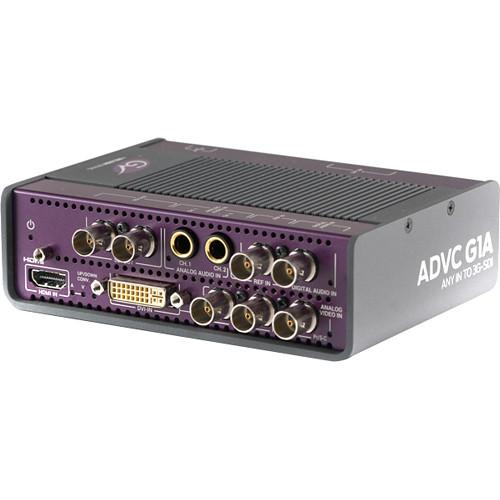

Product description The Grass Valley ADVC G1A Any In to SDI and Up/Down-Converter with Frame Sync is a 1/3 RU box that performs a great many functions for its compact size. The outputs are dual 3G/HD/SD-SDI, so the ADVC G1 could serve as an economical, simple solution for keeping your facility's legacy gear and media accessible and useful within your modern infrastructure.The ADVC G1 converts and/or upconverts sources to HD/SD-SDI (with 1.5 and 3 Gb/s support) via its HDMI, DVI, component, composite, and S-Video inputs. The box also functions as an audio embedder, capturing sources via its AES/EBU and analog audio inputs and embedding them for output via SDI. With its video reference input, the ADVC G1A is able to serve as a frame synchronizer for audio inputs, eliminating the need for a separate frame synch. - Converts any supported input connection to SDI, incorporating 3G technology
- Feature-rich at an affordable price, with an advanced upconverter and an integrated frame synchronizer
- Multipurpose converter inputs DVI (PC resolution support) and includes audio inputs for audio embedding
- Conversion from analog to SDI
- Conversion from DVI or HDMI to 3G/HD/SD-SDI
- High-quality upconversion from analog SD to HD or 3G
- Frame synchronization (house sync) of analog signals
In the Box Grass Valley ADVC G1A Any In to SDI and Up/Down-Converter with Frame Sync AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley ADVC G1A Any In to SDI and Up Down-Converter with Frame Sync in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

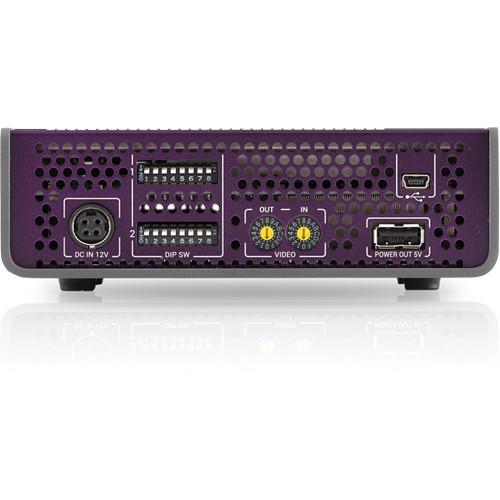

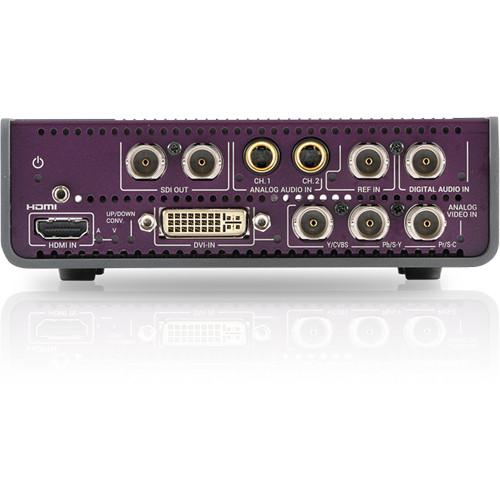

Technical parametersGrass Valley ADVC-G1A Specs | Video Inputs | 1 x HDMI
1 x DVI-I (DVI and analog RGB)
3 x BNC (RGB, analog component, composite, and S-Video) | | Audio Inputs | 2 x Analog audio
1 x AES/EBU (stereo)8x channels embedded via HDMI | | Reference Video Input | 1 x BNC, frame synchronizer | | Video Outputs | 2 x BNC (3G/HD/SD-SDI) | | Input Formats | 1080i: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
720p: 60/59.94/50
480i/p: 60/59.94
576i/p: 50
PC Resolutions:
640 x 480, 800 x 600,1024 x 768, 1366 x 768, 1280 x 1024,1600 x 1200, 1920 x 1200 | | Output Formats | 1080i: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50 | | Input Signal Compatibility | YPbPr (SD), EBU-N10 (SD), Betacam (SD), YC (SD), YPbPr (HD), HDMI | | Output Signal | SMPTE: 259M (SD-SDI), 292M (HD-SDI), 424M (3G-SDI) | | Power | 12 VDC, 3 A (includes AC adapter) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 8 to 80% (no condensation) | | Dimensions | 1.7 x 5.6 x 3.9" / 42.5 x 142.5 x 98.5 mm | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 11.5 x 8.6 x 2.8" |
