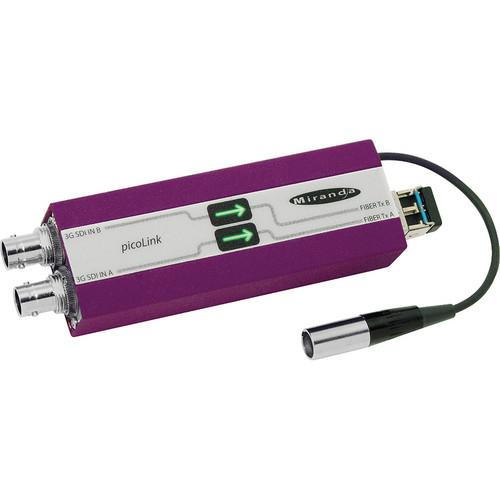

User Manual for Grass Valley Dual 3Gbps HD SD PicoLink Optical Transmitter 1310 nm & 1550 nm WDM Click to enlarge the picture
Contents of the user manual for the Grass Valley Dual 3Gbps HD SD
- Product category: Video Extenders & Repeaters Grass Valley
- Brand: Grass Valley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Grass Valley Video Extenders & Repeaters
|
User manual for the Grass Valley Dual 3Gbps HD SD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Grass Valley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Grass Valley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Grass Valley product will considerably shorten its lifespan!
|
Product description The Miranda Dual 3Gbps/HD/SD PicoLink Optical Transmitter 1310 nm & 1550 nm WDM is a component of serial digital video fiber transmitter featuring hot-swappable SFP modules, and is suitable for receiving 3Gbps/HD/SD signals over single-mode fiber up to 1245’ (379.5 m). It supports data transfer rates between 19.4 Mbps to 2.97 Gbps, and can handle HD / SD serial video as well as compressed bit-streams (DVB-ASI). The transmitter relocks serial digital video from 270 Mbps to 3Gbps. PicoLink tray enables mounting up to 20 optical connections. - Transmitter component of serial digital video fiber converter
- Hot-swappable SFP modules offers easy maintenance and configuration
- Suitable for transmitting 3Gbps/HD/SD signals over single-mode fiber up to 1245' (379.5 m)
- Supports data rates between 19.4 Mbps to 2.97 Gbps
- Supports HD and SD serial video as well as compressed bit-streams (DVB-ASI)
- Re-clocks serial digital video from 270 Mbps to 2.97 Gbps
- WDM signal presence and lock detection enables the signal to be transmitted or received over a single fiber
- PicoLink tray enables mounting up to 20 optical connections
- Suitable for long-distances as well as point-to-point deliveries of a single channel
- Supports single configuration
- 3Gbps/HD/SD SDI signal is carried by single wavelength (1310 nm)
- Presence/loss of signal status indicates the connection of network signal
In the Box Grass Valley Dual 3Gbps/HD/SD PicoLink Optical Transmitter 1310 nm & 1550 nm WDM 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley Dual 3Gbps HD SD PicoLink Optical Transmitter 1310 nm & 1550 nm WDM in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley FIO-991p Specs | Signal | 3Gbps/HD/SD SDI SMPTE 424M, 292M, and 259M-C compliantSupports data rates of 270, 1483.5, 1485, 2967, 2970 MbpsEN50 83-9 DVB-ASI 270 Mbps | Cable Length | 3Gbps: 230' (70 m) @ 3 GbpsHD: 425' (130 m) @ 1.5 GbpsSD: 1245' (380 m) @ 270 Mbps | Return Loss | >15 dB up to 1.5 GHz>10 dB from 1.5 GHz to 3 GHz | | Signal | 3Gbps/HD/SD SDI SMPTE 424M, 292M, and 259M-C compliantSupports data rates of 270, 1483.5, 1485, 2967, 2970 MbpsEN50 83-9 DVB-ASI 270 Mbps | Return Loss | >15 dB up to 1.5 GHz>10 dB from 1.5 GHz to 3 GHz | Jitter | 3 Gbps: <0.3 UIHD/SD: <0.2 UI | Rise / Fall time | 135 ps max., 20% to 80%, for HD400-800 ps, 20% to 80%, for SD | | Optical | SMPTE-297M-2006 compliant | Connector Type | LC/PC | Fiber type | Single-mode (SMF) | | Sensitivity | 270 Mbps and 1.5 Gbps: -20 dBm3 Gbps: -18 dBm | | Transmit Power | WDM 1310 nm: -5 dBm to 0 dBmWDM 1550 nm: -8 dBm to 3 dBm | Laser Type | WDM 1310 nm: Fabry-PerotWDM 1550 nm: DFB (distributed feedback) | | Signal path | 10 bits | Latency | <6 ns | | Package Weight | 0.6 lb | Box Dimensions (LxWxH) | 9.8 x 6.4 x 1.6" |
