User Manual for Grass Valley DXF-200 HDMI Optical Extension System Click to enlarge the picture
Contents of the user manual for the Grass Valley DXF-200 HDMI Optical Extension
- Product category: Video Extenders & Repeaters Grass Valley
- Brand: Grass Valley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Grass Valley Video Extenders & Repeaters
|
User manual for the Grass Valley DXF-200 HDMI Optical Extension contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Grass Valley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Grass Valley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Grass Valley product will considerably shorten its lifespan!
|

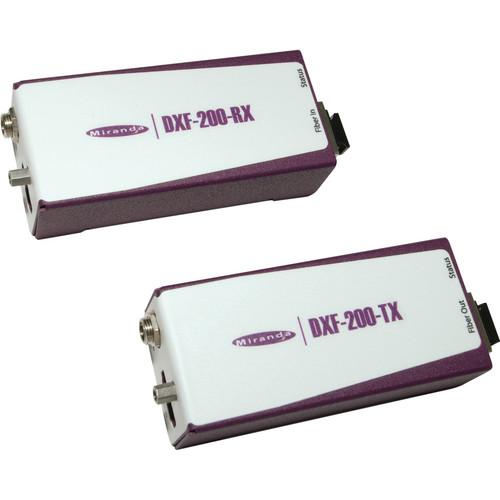

Product description The Miranda DXF-200 HDMI Optical Extension System connects any DVI/HDMI device to a display that is 1000m away via a single multimode fiber, while ensuring 100% data transfer between the device and the display. The extension system consists of a transmitter and a receiver. With a maximum resolution of 1920 x 1200, it is useful in the installation of Kaleido systems that support multiple displays placed at different locations. With automatic EDID (Extended Display Identification Data) option, the DXF-200 extension system detects the native resolution of the monitor connected to it. The multi-status LED indicates the connectivity problems between the cable and the fiber. The DXF-200 modules (transmitter and receiver) are installed in the DXF-Tray, which comes with redundant power supplies as a back up for the main power supply. It also includes the GPI status that indicates which power supplies are currently working. The module can be easily placed at the back of the rack to conserve space. - Connects any DVI/HDMI device to a display that is 1000m away via a single multimode fiber
- System is made of 2 components - transmitter and receiver
- Maximum resolution of 1920 x 1200 and provides 100% data transfer between device and display
- Useful in the installation of Kaleido systems that support multiple displays placed at different locations
- Automatic EDID (Extended Display Identification Data) - detects the native resolution of the monitor connected to it
- Multi-status LED indicates the connectivity problems between cable and the fiber
- Installed using DXF-Tray which comes with redundant power supplies as a back up for the main power supply
- Includes GPI status that indicates which of the power supplies are currently working
- Can be easily placed at the back of the rack to conserve space
In the Box Grass Valley DXF-200 HDMI Optical Extension System DXF-200-TX Transmitter DXF-200-RX Receiver Power Adapter 6VDC/2A 2 x Power Cord Cable Kit User's Manual 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley DXF-200 HDMI Optical Extension System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley DXF-200 Specs | Bandwidth | Frequency Bandwidth: 1.65 Gbps (Single Link) | | Resolution | Supported Graphic Resolution: WUXGA resolution (1920 x 1200) | | Maximum Distance | Distance between TX and RX: up to 3,300' (1 km) or 2.5 dB of optical loss | | Connectors | HDMI and SC connector | | Power Supply | 6VDC | | Power Consumption | Tx: 1.5 Watt (max)
Rx: 1.0 Watt (max) | | Optical | Optical Source:
- 778, 800, 825 & 850 nm VCSEL (High Speed)
- 911 & 980 nm VCSEL (Low Speed)
O/E Converter: PIN Photo Diode
Fiber Type: 50 or 62.5/125 SC Multi-mode
Fiber Loss: Maximum of 2.5 dB of total loss in the optical path | | Operating Temperature | 32 - 122°F (0 - 50°C) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 4.5 x 2.3 x 2.0" |
