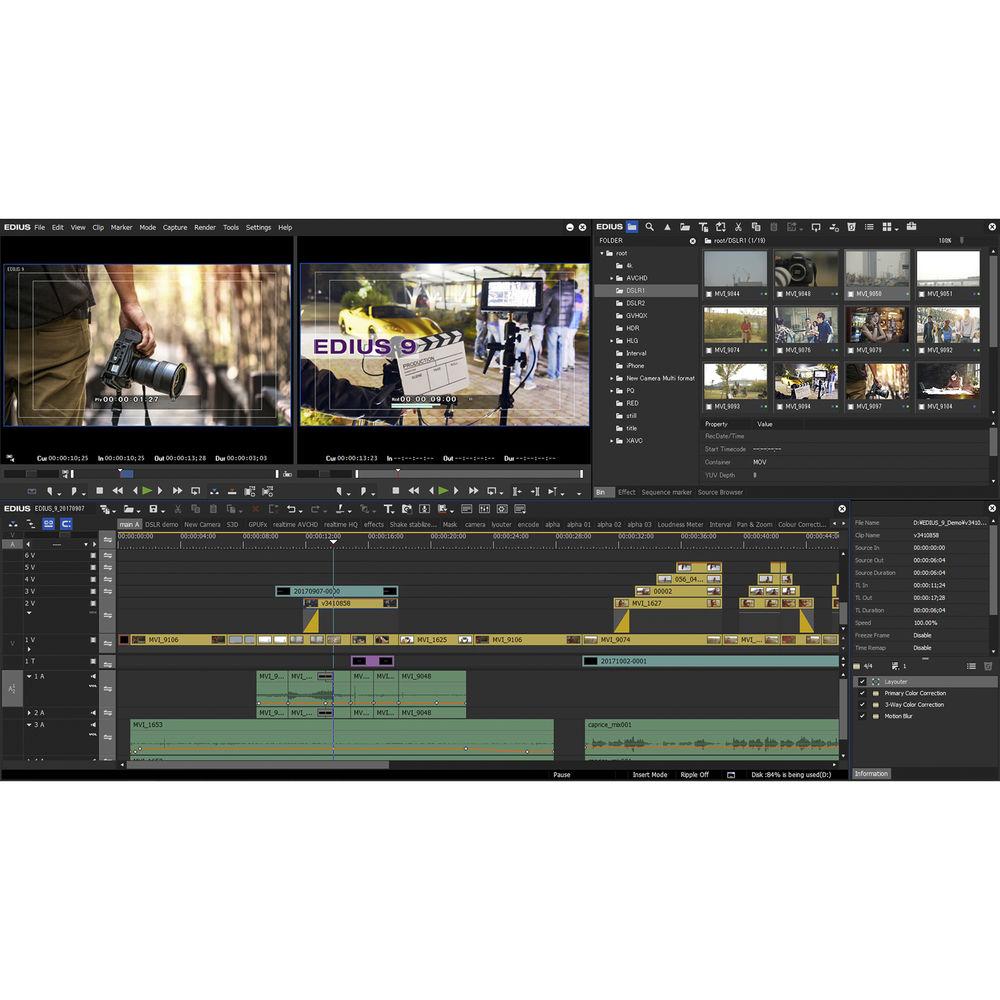

Product description Grass Valley EDIUS Workgroup 9 is a versatile and comprehensive nonlinear editor for broadcast news and other applications. EDIUS Workgroup 9 is designed to let you organize and edit mixed files and formats efficiently to get it on the air fast, and you can use it as a standalone user in the field or within network-connected production infrastructures. EDIUS Workgroup 9 is a native 64-bit application for Windows operating systems, and takes advantage of system memory for intensive media operations such as layering, stereoscopic 3D, multicam, and multi-track 4K editing.
EDIUS Workgroup 9 builds on the features of EDIUS Pro 9, offering the same toolset but adding over a dozen key features aimed at broadcasters. The additional features include 4K at 60/50p 3rd-party hardware output, draft preview mode, DNxHD codec support, support for GV STRATUS Connect and K2 Connect options, and more (see full bullet list in the Features section below).
EDIUS Workgroup 9 provides native support for virtually all commonly used file formats, such as XAVC/XAVC S and AVC-Ultra/Intra, and allows for real-time editing of multiple formats and frame rates on the same timeline. It supports resolutions from 24 x 24 to 4K x 2K on the same timeline, and converts between HD/SD and HDR/SDR resolutions, aspect ratios, and frame rates in real time. You can edit in HD and place 4:3 video on the timeline, mix NTSC and PAL sources, add 4K content, or combine everything into projects in other resolutions and frame rates without waiting for any conversion or rendering to process. In addition to native format support, you can take advantage of Grass Valley's 10-bit intermediate codec, HQX.
The application can be installed on two machines, and you can edit in proxy mode if one of the machines isn't powerful enough. - EDIUS Workgroup 9 vs. EDIUS Pro 9
- EDIUS Workgroup 9 builds on the features of EDIUS Pro 9, offering the same toolset but adding the following features aimed at broadcasters:
- Loudness meter/Loudness auto adjust
- Draft preview mode
- Watch folder support
- Generic MXF exporter
- K2 GXF exporter
- System SDK support
- Edit growing files
- Dolby E pass-through
- ANC data (captioning) pass-through
- Audio monitoring mode
- DNxHD codec support
- Support for Dolby Plus/Professional license option
- Connect to external storage via FTP
- Support for GV STRATUS Connect option
- Support for K2 Connect option
- New Features
-
- Native editing for HDR material
- Export in HDR for broadcasting and web distribution
- Ability to mix SDR and HDR material in the same project and output results in eithercolor space
- Native end-to-end support for HDR contents from professional and consumer camcordersfrom major camera manufacturers, and also for HDR video from drones and smartphones
Workflow updates, such as Canon EOS C200 "Cinema RAW Light" decoding, still raw file decoding, and improvement of the user interface - Third-party hardware support update
- Third-party hardware 60/50p output support

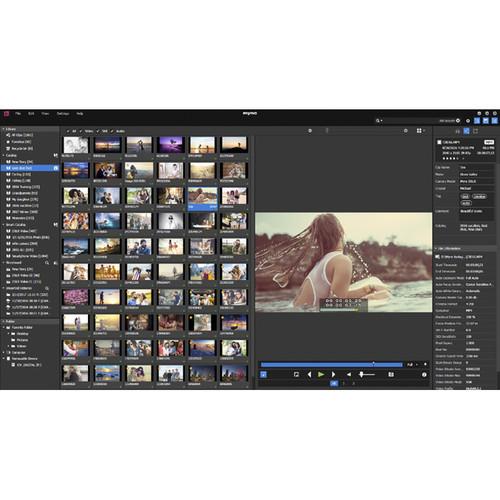

- Mync (media management software) bundled with EDIUS 9 Workflow implements a powerful, new Meta Smart Search function
- Includes free download of NewBlue Titler Pro 5 for EDIUS
- Other Features
-
- Interoperability with GV STRATUS (requires GV STRATUS Connect option) (Launch from GV STRATUS settings orindependently / Export different formats to different destinations within the GV STRATUS environment
- K2 Clip/K2 Program import/export (requires K2 Connect option) (K2 Clip capture / Capture and edit a growing file on K2 / K2 4K CMF import - beta)
- Support for Blackmagic Design/AJA hardware (preview only) and EDL or AAF import/export with Grass Valley HQX with DaVinci Resolve
- Edit media files with different resolutions — 24 x 24 to 4K x 2K
- Real-time conversion of frame rates on the same timeline
- Unlimited video, audio, title and graphics tracks
- Support for the latest file formats — Sony XAVC (Intra/Long GOP)/XAVC S, Panasonic AVC-Ultra/AVC-Intra 422, AVC-Intra LT/LT 2K and Canon XF-AVC (import only), Sony RAW, Canon Cinema RAW/Cinema RAW Light, RED RAW, ProRes (Import only), DNxHD/HR, still image RAW
- Support for the latest color space for Log and RAW files — HLG/PQ, S-Log, Canon Log, V-Log/V-Log L, J-Log1, F-Log and LUT (.cube) file import
- Work natively with many different video formats, such as Sony XDCAM, Panasonic P2, Ikegami GF, Canon XF format, and EOS movie format
- Fast AVCHD editing (up to 3+ streams in real time)
- Multicam editing of up to 16 different sources simultaneously, with video output support
- Improved MPEG encoder speed and quality
- Improved H.264/AVC decoder and encoder (for fast encoding of 4K XAVC)
- Accelerated 4K H.264 playback
- Optimized for Intel Core i architecture
- New GUI design for faster workflows
- 64-bit native processing with maximum memory access for streamlined real-time editing
- Proxy mode workflow for legacy computers
- Supports Intel Quick Sync Video for fast H.264 export (for Blu-ray disc burning)
- Fast handling of large quantities of still image files (JPG, TGA, DPX, Cinema DNG and others)
- OFX support for Magic Bullet and Sapphire plug-ins
- Ability to save a current project as a template in order to re-use preferred track settings, screen layout, etc.
- Primary color correction (RGB) LOG file support
- Primary color correction (RGB)
- 3-way color correction (YUV)
- Motion tracking
- High quality slow-motion (optical flow)
- Draft preview mode
- Built-in loudness meter with auto adjustments
- Various synthetic video filters such as masks and keyers
- Built-in image stabilization
- Direct to Blu-ray disc and DVD timeline export
- Project import/export as EDL, AAF, FCP 7 XML (import only)
- Dolby consumer license included as standard, which is applicable to corporate and consumer use of Dolby audio. For use in broadcast applications, the Dolby Professional/Plus license is available as an option for EDIUS Workgroup
- The K2 Connect option (purchased separately) supports K2 servers and storage, and an improved 4K workflow — the ability to edit growing 4K files and to be able to export 4K CMF files back to the K2 server
- H.265/HEVC decoding support
- Support for high-resolution displays
Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley EDIUS Workgroup 9 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley Edius Workgroup 9 Specs | | | Operating System | Windows 7 (64-bit) SP1 or later, Windows 8.1 (64-bit), Windows 10 (64-bit) (version 1607 or later) | | CPU | Any Intel Core 2 or Core iX CPU; any Intel or AMD CPU with SSSE3
Note: Multiple CPUs and/or multicore CPUs are recommended. | | Memory | 4 GB RAM minimum (8 GB or more recommended for 4K projects)
*Maximum amount of RAM is based on the physical memory limits of each OS:
Windows 10, Enterprise and Pro, 64-Bit:
512 GB
Windows 8.1, Enterprise and Professional, 64-Bit:
512 GB
Windows 8.1, 64-Bit:
128 GB
Windows 7, Ultimate, Enterprise, and Pro, 64-Bit:
192 GB
Windows 7, Home Premium, 64-Bit:
16 GB (not recommended for complex 4K projects)
Windows 7, Home Basic, 64-Bit:
8 GB (not recommended for projects above HD resolution) | | Graphics Card | Must support higher resolution than 1024 x 768, 32-bit. Direct3D 9.0c or later and PixelShader Model 3.0 or later required.
Requirements for video memory size when using GPUfx will vary depending on the project format. For 10-bit SD projects: 1 GB or more recommended; for HD/4K projects 2 GB or more recommended. | | Hard Disk | 6 GB of hard disk space is required for installation.
Drive with SATA/7,200 RPM or faster is required for video storage. Available hard drive disc space should be twice the size of the file to be edited.
RAID-0 is recommended for HD and above resolution editing. | | Hardware Support | Grass Valley manufactures the following high-quality desktop I/O hardware for EDIUS Pro 9:
STORM 3G Elite: 3G-SDI I/O + HDMI I/O+ analog I/O + RS-422 control
STORM 3G: 3G-SDI I/O + HDMI output + RS-422 control
STORM Mobile: HDMI I/O + analog I/O
STORM Pro: HD-SDI I/O + HDMI output
EDIUS Pro 9 also supports the following 3rd-party I/O hardware:
Blackmagic Design:
Intensity Pro 4K, DeckLink SDI 4K, DeckLink Studio 4K, DeckLink 4K Extreme, and DeckLink 4K Extreme 12G
AJA Video Systems:
KONA 4, KONA 3G, KONA LHi | | Sound Card | Sound card with WDM driver support is required | | Internet Connection | Internet connection required for software license activation; thereafter Internet connection is required once per month to maintain usage | | Languages | English, Chinese (traditional, simplified), French, German, Italian, Japanese, and Spanish | | License | Can be installed on two computers |
