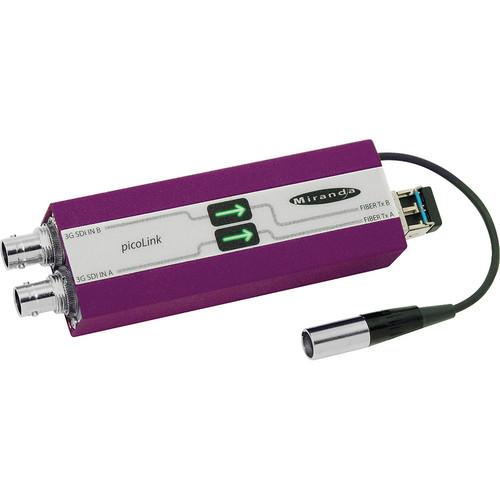

Product description The Miranda FIO-991p Dual 3Gbps/HD/SD PicoLink Optical Receiver is a component of serial digital video fiber receiver featuring hot-swappable SFP modules, and is suitable for receiving 3Gbps/HD/SD signals over single-mode fiber up to 1245’ (379.5 m). It supports data transfer rates between 19.4 Mbps to 2.97 Gbps, and can handle HD / SD serial video as well as compressed bit-streams (DVB-ASI). The receiver relocks serial digital video from 270 Mbps to 3Gbps. PicoLink tray enables mounting up to 20 optical connections. - Receiver component of serial digital video fiber converter
- Hot-swappable SFP modules offers easy maintenance and configuration
- Suitable for transmitting 3Gbps/HD/SD signals over single-mode fiber up to 1245' (379.5 m)
- Supports data rates between 19.4 Mbps to 2.97 Gbps
- Supports HD and SD serial video as well as compressed bit-streams (DVB-ASI)
- Re-clocks serial digital video from 270 Mbps to 2.97 Gbps
- PicoLink tray enables mounting up to 20 optical connections
- Suitable for long-distances as well as point-to-point deliveries of a single channel
- Supports single configuration
- 3Gbps/HD/SD SDI signal is carried by single wavelength (1310 nm)
- Presence/loss of signal status indicates the connection of network signal
In the Box Grass Valley FIO-991p Dual 3Gbps/HD/SD PicoLink Optical Receiver 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley FIO-991p Dual 3Gbps HD SD PicoLink Optical Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley FIO-991p Specs | | | Signal | 3Gbps/HD/SD SDI SMPTE 424M, 292M, and 259M-C compliantSupports data rates of 270, 1483.5, 1485, 2967, 2970 MbpsEN50 83-9 DVB-ASI 270 Mbps | | Cable Length | 3Gbps: 230' (70 m) @ 3 GbpsHD: 425' (130 m) @ 1.5 GbpsSD: 1245' (380 m) @ 270 Mbps | | Return Loss | >15 dB up to 1.5 GHz>10 dB from 1.5 GHz to 3 GHz | | | | Signal | 3Gbps/HD/SD SDI SMPTE 424M, 292M, and 259M-C compliantSupports data rates of 270, 1483.5, 1485, 2967, 2970 MbpsEN50 83-9 DVB-ASI 270 Mbps | | Return Loss | >15 dB up to 1.5 GHz>10 dB from 1.5 GHz to 3 GHz | | Jitter | 3 Gbps: <0.3 UIHD/SD: <0.2 UI | | Rise / Fall time | 135 ps max., 20% to 80%, for HD400-800 ps, 20% to 80%, for SD | | | | Optical | SMPTE-297M-2006 compliant | | Connector Type | LC/PC | | Fiber type | Single-mode (SMF) | | | | Sensitivity | 270 Mbps and 1.5 Gbps: -20 dBm3 Gbps: -18 dBm | | | | Transmit Power | 1310 nm: -5 dBm to 0 dBm | | Laser Type | Fabry-Perot | | | | Signal path | 10 bits | | Latency | <6 ns |
