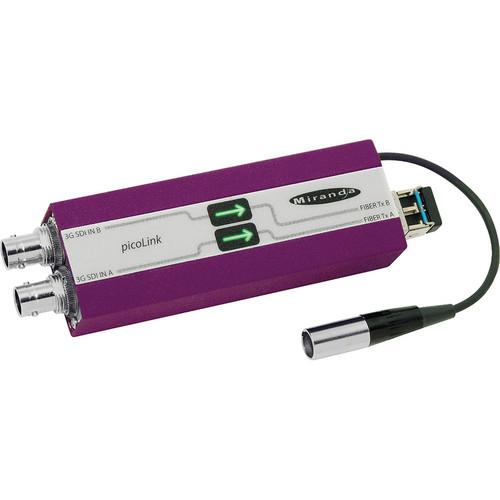

The Miranda FIO-991p Single 3Gbps/HD/SD PicoLink Optical Transmitter 1310 nm is a component of serial digital video fiber transmitter featuring hot-swappable SFP modules, and is suitable for receiving 3Gbps/HD/SD signals over single-mode fiber up to 1245’ (379.5 m). It supports data transfer rates between 19.4 Mbps to 2.97 Gbps, and can handle HD / SD serial video as well as compressed bit-streams (DVB-ASI). The transmitter relocks serial digital video from 270 Mbps to 3Gbps. PicoLink tray enables mounting up to 20 optical connections.
  • Transmitter component of serial digital video fiber converter
  • Hot-swappable SFP modules offers easy maintenance and configuration
  • Suitable for transmitting 3Gbps/HD/SD signals over single-mode fiber up to 1245' (379.5 m)
  • Supports data rates between 19.4 Mbps to 2.97 Gbps
  • Supports HD and SD serial video as well as compressed bit-streams (DVB-ASI)
  • Re-clocks serial digital video from 270 Mbps to 2.97 Gbps
  • PicoLink tray enables mounting up to 20 optical connections
  • Suitable for long-distances as well as point-to-point deliveries of a single channel
  • Supports single configuration
  • 3Gbps/HD/SD SDI signal is carried by single wavelength (1310 nm)
  • Presence/loss of signal status indicates the connection of network signal
  • Robust performance
  • SMPTE-297-2006 compliant
In the Box Grass Valley FIO-991p Single 3Gbps/HD/SD PicoLink Optical Transmitter 1310 nm
  • 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Grass Valley FIO-991p Single 3Gbps HD SD PicoLink Optical Transmitter 1310 nm in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Grass Valley FIO-991p Specs

    Signal 3Gbps/HD/SD SDI SMPTE 424M, 292M, and 259M-C compliant
    Supports data rates of 270, 1483.5, 1485, 2967, 2970 Mbps
    EN50 83-9 DVB-ASI 270 Mbps
    Cable Length 3Gbps: 230' (70 m) @ 3 Gbps
    HD: 425' (130 m) @ 1.5 Gbps
    SD: 1245' (380 m) @ 270 Mbps
    Return Loss >15 dB up to 1.5 GHz
    >10 dB from 1.5 GHz to 3 GHz
    Signal 3Gbps/HD/SD SDI SMPTE 424M, 292M, and 259M-C compliant
    Supports data rates of 270, 1483.5, 1485, 2967, 2970 Mbps
    EN50 83-9 DVB-ASI 270 Mbps
    Return Loss >15 dB up to 1.5 GHz
    >10 dB from 1.5 GHz to 3 GHz
    Jitter 3 Gbps: <0.3 UI
    HD/SD: <0.2 UI
    Rise / Fall time 135 ps max., 20% to 80%, for HD
    400-800 ps, 20% to 80%, for SD
    Optical SMPTE-297M-2006 compliant
    Connector Type LC/PC
    Fiber type Single-mode (SMF)
    Sensitivity 270 Mbps and 1.5 Gbps: -20 dBm
    3 Gbps: -18 dBm
    Transmit Power 1310 nm: -5 dBm to 0 dBm
    Laser Type Fabry-Perot
    Signal path 10 bits
    Latency <6 ns
    Voltage 5 VDC
    Power 3 W
    Package Weight 0.3 lb
    Box Dimensions (LxWxH) 6.0 x 4.4 x 1.0"
