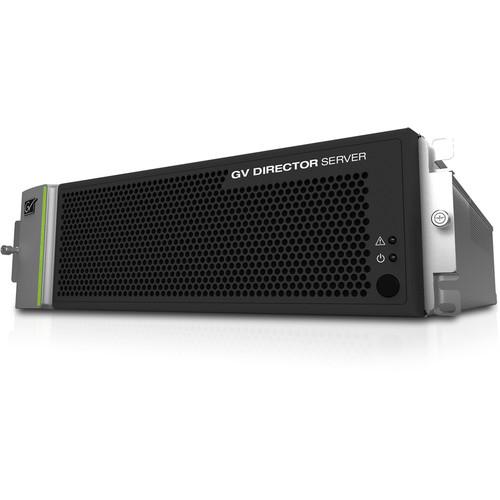

Product description Supporting up to eight HD input streams, the GV Director Integrated Non-Linear Live Production System from Grass Valley is a combination of a 4 RU server and a flexible control surface. The GV Director is suitable for use by event venues, stadiums, education, corporate, government, and houses of worship. The control console connects via Ethernet to the server, which incorporates the inputs/outputs. This allows you to install the server in a machine room, while you keep the control console in the studio. The server features eight HD-SDI inputs and two HDMI inputs, for a total of ten inputs of which eight can be active at any time.

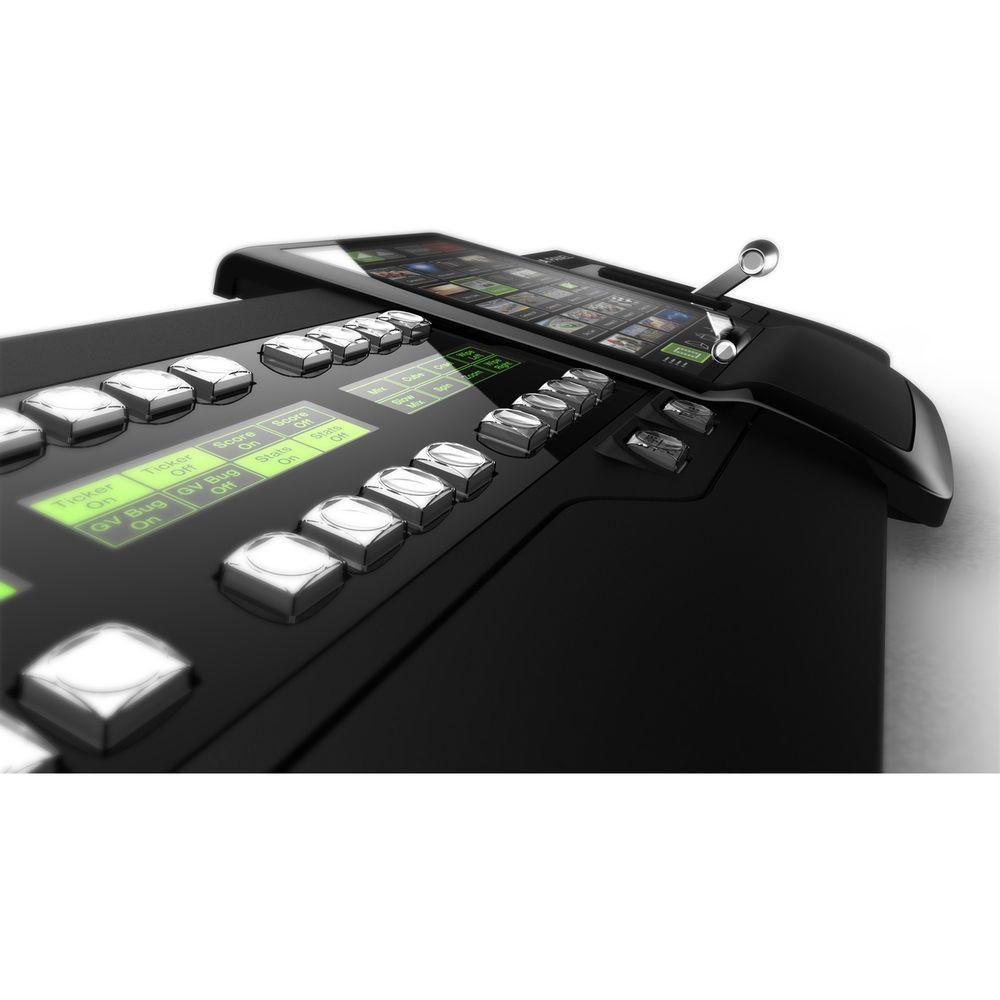

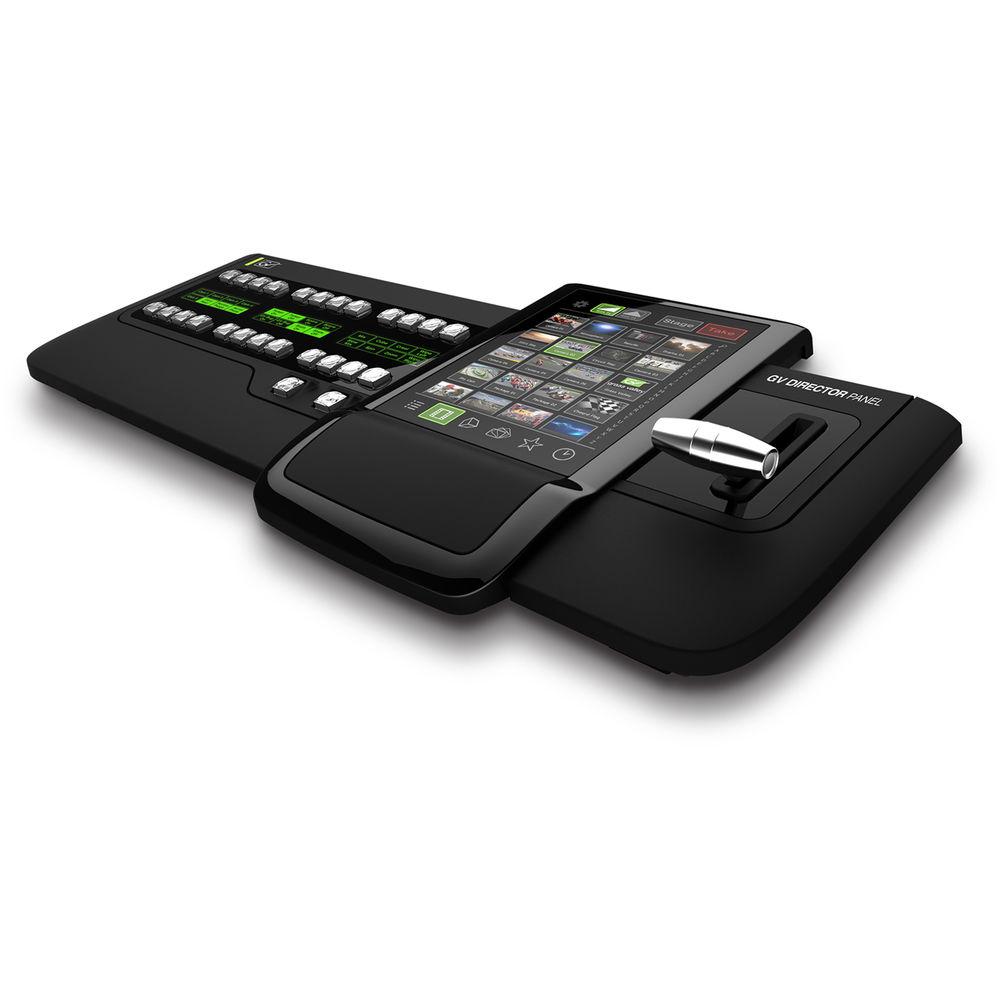

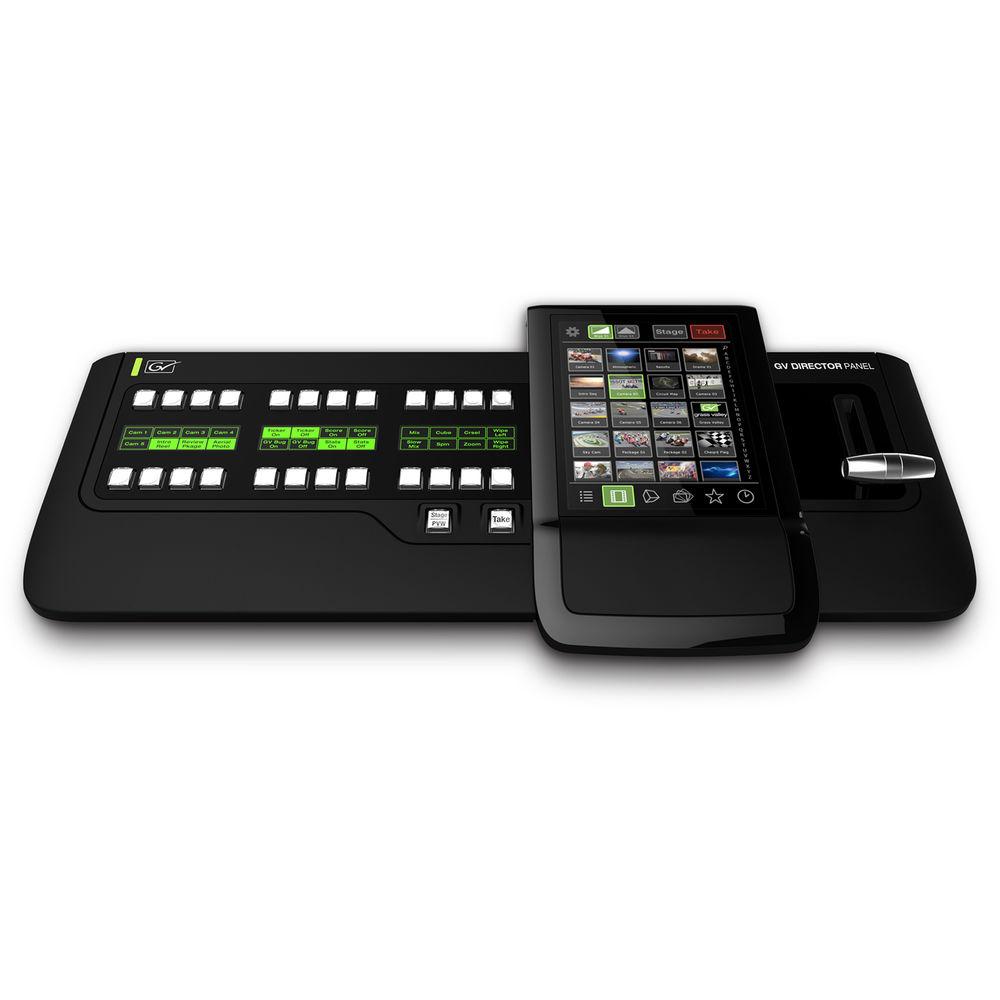

The console features assignable buttons, a touchscreen surface, and a transition bar, providing you with the classic control interface you are used to while allowing for customization to suit your needs. Production elements can be created beforehand on a Mac or PC, or can be created on the fly as needed using the GV Director's graphics and authoring tool or effects builder. Grass Valley requires that one of their technicians confirm the system is set up and configured to your requirements on-site, after it has been installed. -
- Eight HD/SD inputs, active at any time
- Four HD/SD outputs (Program, Stage, and 2 x Auxiliary), each with up to 16 tracks of embedded audio
- Eight SDI and two HDMI inputs
- Two analog audio inputs
- Four analog audio outputs
- Multi-codec video support: MPEG & DV
- Standard media file import: MXF & MOV
- DVI output supporting optional touchscreen monitor interface
- Supported graphics formats: Targa (TGA) type 2 (uncompressed RGB) in 24-bit RGB or 32-bit
- RGBA formats (top/bottom-first bit supported) and BMP in 24-bit uncompressed RGB
- Small form-factor, fully integrated solution including:
- Switcher capability supporting 2D and 3D wipes as well as chroma key
- Real-time graphics engine
- Clip store/playback
- Multiviewer
- Create Once and Publish Everywhere (COPE): The complete look and style of a production can be created offline, with full preview, via the authoring tool (Mac or PC) and published to multiple live locations
In the Box Grass Valley GV Director Integrated Non-Linear Live Production System Smart Surface Panel Half TB of Storage (Installed) GV Composer Authoring Software License Limited 15-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley GV Director Integrated Non-Linear Live Production System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley GVD-FLEX-BL Specs | Video Standards | HD-SDI SMPTE 292M-1998
1080i: 59.94/50
720p: 59.94/50
HDMI
Video Max Resolution: 1920 x 1080 @60 Hz
Data: 24-bit RGB 4:4:4, YCbCr 4:4:4, or YCbCr 4:2:2
SD-SDI SMPTE 259M-1997, ITU-R BT.656
525i: 59.94
625i: 50 | | Reference Input | Analog
Connector: Dual BNC loop-through
Standard: Blackburst & tri-level sync
Impedance: 75 Ohms (external termination | | Video I/O | Inputs
SDI: 8 x BNC (75 Ohms, 800 mVpp)
HDMI: 2 x Type A
Outputs
Program: 1 x BNC
Stage: 1 x BNC
Auxiliary: 2 x BNC | | Analog Audio Inputs | Connectors: 2 x 3-pin XLR
Sampling Rate: 48 kHz (max)
Quantization: 24-bit
Nominal Level: +4 dBu
Input Impedance: Nominally 9.44 kOhms | | Number of Analog Audio Outputs | 4 x 3-pin XLR | | GPIO | 12 in
12 out
Connector: 25-pin female D-Sub
Input Impedance: 4 Ohms
Input Levels: 5 VDC
Output: Open collector 250 mAh, 30 V max | | Tally | Connector: 25-pin female D-Sub
Output: Open collector 250 mAh, 30 V max | | LTC Input | Connector: 3-pin female XLR
Standard: SMPTE 12M
Input Impedance: 200 kOhms | | Timing Jitter | HD Video Formats: 1.0 UI
SD Video Formats: 0.2 UI | | Alignment Jitter | HD Video Formats: 0.2 UI
SD Video Formats: 0.2 UI | | Output Impedance | 75 Ohms | | Audio | Embedded: 16
192 kHz, 24-bit | | Video Recording Format | MPEG-2 | | File Wrappers | MXF (OP1a)
MOV | | Communications | Panel to Video Frame: LAN cable 100 m (328 ft) max. length
Multiviewer Touchscreen to Frame: USB & DVI | | Power | Video Processing Frame
Line Voltage: 100-240 VAC, ±10% power factor corrected
Automatic line-voltage sensing
Line Frequency: 50/60 Hz ±5%
Power Consumption: Typical 300 W, max. 550 W
Control Panel
Line Voltage: 100-240 VAC, ±10% power factor corrected
Automatic line-voltage sensing
Line Frequency: 50/60 Hz ±5%
Power Consumption: Typical 35 W, max. 90 W | | Environmental | Storage Temperature: -4 to 158°F / -20 to 70°C
Operating Temperature: 32 to 104°F / 0 to 40°C
Relative Humidity: 0 to 95% (non-condensing)
Electromagnetic: E4 (according to EN55103-1, -2) | | Dimensions | Panel
24.04 x 11.2 x 3.86" / 61.06 x 28.44 x 9.81 cm
Server
19 x 22.98 x 6.91" / 48.26 x 58.37 x 17.55 cm | | Weight | Panel
13.5 lb / 6.12 kg
Server
54.5 lb / 24.7 kg |
