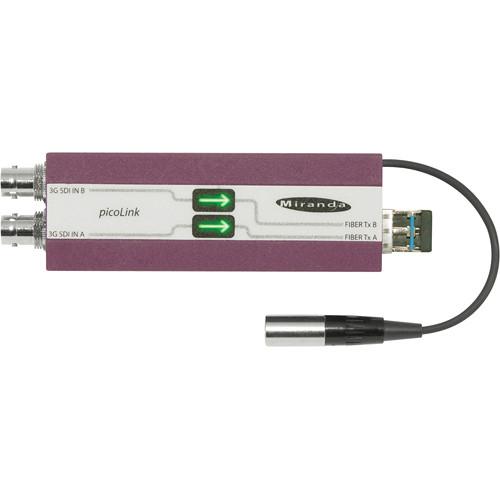

Product description The Miranda Technologies High-Power Dual 3G / HD / SD picoLink Optical CWDM Transmitter, from the FIO-991p series of flexible and serial digital video to / from fiber converters, features an SFP optical plug-in cartridge. This picoLink optical CWDM transmitter is designed for transmitting 3G, HD, and SD serial video, as well as compressed bit-streams (DVB-ASI).
This high-power dual channel transmitter generates 2 adjacent CWDM wavelengths compatible with the external CWDM Mux / Demux (sold separately), which can be used to carry different SDI signals on a single fiber strand. This CWDM fiber optical transmitter supports any data rate within the range of 19.4 Mbps to 2.97 Gbps, and provides reclocked serial digital video from 270 Mbps to 2.97 Gbps. This hot-swappable SFP module offers easy maintenance and configuration flexibility. - Convenient 3G / HD / SD standalone fiber interface
- Compatible with CWDM Mux / Demux
- High-power transmit laser to increase distance coverage
- Presence / loss of signal status
- Robust performance, SMPTE-297-2006 compliant
In the Box Grass Valley High-Power Dual 3G / HD / SD picoLink Fiber Optical CWDM Transmitter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley High-Power Dual 3G HD SD picoLink Fiber Optical CWDM Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley FIO-991P-THTH-C31C33-LC Specs | Cable Length | Input (Belden 1694A cable)
3G: 230' (70 m) @ 3 Gbps
HD: 425' (130 m) @ 1.5 Gbps
SD: 1,245' (380 m) @ 270 Mbps | | Signal | Input and Output: 3G / HD / SD SDI SMPTE 424M, 292M, and 259M-C compliant Supports data rates of 270, 1483.5, 1485, 2967, 2970 Mbps EN50 83-9 DVB-ASI 270 Mbps | | Return Loss | Input and Output:>15 dB up to 1.5 GHz, >10 dB from 1.5 to 3 GHz | | Jitter | Output (Wideband)
3G: <0.3 UI
HD / SD: <0.2 UI | | Rise / Fall time | Output
HD: 135 ps maximum, 20 to 80%
SD: 400 to 800 ps, 20 to 80% | | Optical | Input / Output
Optical: SMPTE-297M-2006 compliant
Connector Type: LC / PC
Fiber Type: Single-mode (SMF) | | Wavelength | 1311 / 1331 nm | | Transmitter | Channel: Single-mode | | Transmit Power | 0 to +4 dBm | | Laser Type | DFB (distributed feedback) | | Signal Path | 10 bits | | Latency | <6 ns | | Voltage | 5 VDC | | Power | 3 W | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 17.0 x 10.0 x 2.0" |
