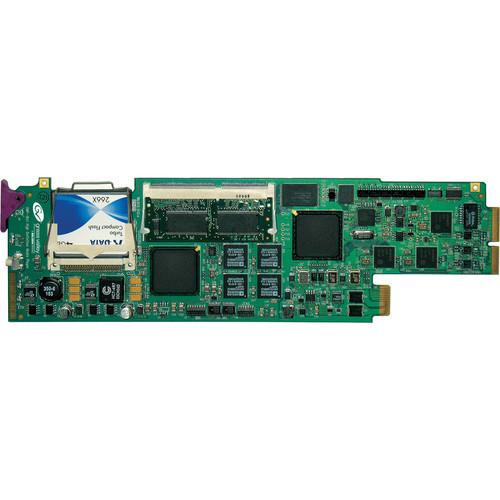

Product description The HMP-1801 HD/SD Solid-State Media Server from Grass Valley is a single card, solid-state media server that captures and plays back HD and SD video sequences. It is compatible with the Miranda Densité 3 Frame, sold separately. The card is ideal for playback of clips that are used repeatedly, such as full-screen promos and animated apology sequences, as well as for filling side panels, introduced by up/down-conversion, with animated graphics to improve the on-air presentation and playback.
Clip capture, content management, and playback can be controlled manually using a dedicated web interface, by the iControl monitoring and control system, or the RCP-200 remote control panel. Automated control can be performed by GPI, the VDCP, and Oxtel protocol. The HMP-1801 relies on widely available, low-cost Flash Memory (Compact Flash) for media storage, and makes no use of moving mechanical parts for maximum long-term reliability and fast access times. JPEG 2000 video compression is used to maximize storage space, while also preserving broadcast quality. The content can be loaded on the card using dedicated 10/100Mb Ethernet media transfer port by using the provided Media Manager. For a more automated workflow, the advanced asset management tool software option is available.
The HMP-1801 can be genlocked using SD or HD reference signals, or it can use its internal time base-accurate oscillator. If multiple cards are installed in the same frame, the cards can be locked to a common frame reference using the REF-1801 reference option. - Key Features
- - Capture and playback of video, audio, and ANC, such as closed captioning, timecode, AFD, Namedropper, and Dolby E metadata
- Playback of a single clip or sequence of clips
- Fill and key outputs
- Supports SD and HD (525, 625, 1080i, and 720p at 50 and 59.94 Hz frame rates)
- Dedicated 10/100 Ethernet port with built-in web server for media management and upload
- Compatibility with Vertigo Xplorer asset management software
- Reference input with loop-through capability (loop-through only with DRP rear module)
- GPI Ports: Six in / six out
- VDCP and Oxtel protocol support for playback and capture
- Operates with iControl monitoring and control system, and with thumbnail and ALM for confidence monitoring
- Supports SNMP for alarm publishing
- Playback control with (or from) optional RCP-200 remote control panel In the Box Grass Valley HMP-1801 HD/SD Solid-State Media Server (64GB) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley HMP-1801 HD SD Solid-State Media Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley HMP-1801-64GB-3RU Specs | Input | Signal (1):
SD: SMPTE-259M-C (270 Mb/s)
HD: SMPTE-292M (1.485, 1.485/1.001 Gb/s)
Supported Format:
SD: SMPTE-125M: 480i 59.94
SD: EBU: 576i 50
HD: SMPTE-274M: 1080i 59.94/50
HD: SMPTE-296M: 720p 59.94/50
Embedded Audio (8 Ch):
SMPTE-299M-272
Return Loss:
> 15 dB Up to 1.5 GHz | | Output | Signal (2):
HD: SMPTE-292M (1.485, 1.485/1.001 Gb/s)
SD: SMPTE-259M-C (270 Mb/s)
Supported Format:
HD: SMPTE-274M: 1080i 59.94/50
HD: SMPTE-296M: 720p 59.94/50
SD: SMPTE-125M: 480i 59.94
SD: EBU: 576i 50
Embedded Audio (8 Ch):
SMPTE-299M / 272M
Return Loss:
> 15 dB Up to 1.5 GHz
Jitter:
<0.2 UI Up to 1.5 GHz | | Reference Input | Impedance: 75 Ohm Bridging
Return Loss: > 35 dB up to 5.75 MHz
Signal Type: Composite NTSC-M, PAL-B black burst
Standard: SMPTE-170M, ITU-R BT.1700-1
Signal Level: 1 Vpp
Signal Type: HD tri-level sync
Standard: SMPTE-274M, SMPTE-296M
Signal Level: 600 mVpp | | Storage | Medium: Compact flash (UDMA6)
Max Capacity: Limited only by compact flash size
Access: Through web server (HTTP) | | Power | 10 W | | Control | RS-422 (VDCP)
GPI: 6 x Inputs, 6 x outputs
Built-in web server | | Playback Time | Total Time Based on Playable Compact Flash Capacity:
HD Video: 16 GB, 20 min / 32 GB, 40 min / 64 GB, 80 min / 128 GB, 160 min
SD Video: 16 GB, 80 min / 32 GB, 160 min / 64 GB, 320 min / 128 GB, 640 min |
