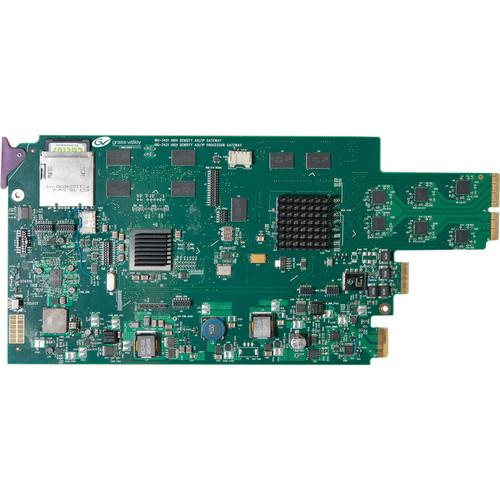

Product description The IRG-3401 High Density ASI/IP Gateway from Miranda facilitates cable, satellite, and IPTV operators' migration towards IP infrastructures by offering a flexible and integrated DVB-ASI/IP bidirectional gateway that can bridge any type of MPEG transport stream from/to IP networks. The high density allows 120 gateways per 3RU Densité 3 frame, saving substantial rack space in high channel count environments. Its scalability through modularity addresses increasing TV channel lineups.
The dual Ethernet SFP sockets allow fiber or electrical connectivity to the main and backup video backbone to provide complete redundancy of MPEG transport streams. Each DVB-ASI I/O can also be paired in redundant mode. Combined together the IP and DVB-ASI redundant ports offer a solution to ensure uninterrupted services. - High density with 12 gateways per card/120 gateways per 3RU frame
- Up to 213 Mb/s per DVB-ASI
- Total of 800 Mb/s on Ethernet
- Each DVB-ASI can be configured as an input or output
- Converts legacy ASI devices to IP with simultaneous IP to ASI and ASI to IP conversions
- Flexible IP connectivity through two distinct SFP ports for optical or electrical modules
- Full redundancy to avoid service interruptions
- Pair DVB-ASI I/Os as main and backup
- Copies TS streams on both IP ports simultaneously (port mirroring)
- Automatic change-over switch for both Ethernet ports and DVB-ASI ports
- MPEG Cop3 FEC (SMPTE-2022) support for better signal integrity over IP
- UDP/RTP encapsulation 1 to 7 TS/IP packet
- Better multicast traffic control using IGMPv3 MSM/SSM
In the Box Grass Valley IRG-3401 High Density ASI/IP Gateway Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley IRG-3401 High Density ASI IP Gateway in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley IRG-3401 Specs | | | Connectors | 12 x BNC, configurable independently as input or output | | Standards | EN50083-9 (V2:3/98) DVB ASI | | Cable Length | 984' (300 m), Belden 1694 A @ 270 Mb/s | | Bit Rate | Data: Up to 213 Mb/s for each I/O | | Packet Size | TS: 188/204 bytes | | Return Loss | >15 dB, up to 270 MHz | | Output Jitter | <0.2 UI (0.74 ns) pp | | | | Connectors | 2 x RJ45, SFP sockets for electrical or optical cartridge | | Standards | IEEE 802.3 1000 Mb/s Ethernet | | Data Transport | UDP/RTP with FEC Pro-MPEG CoP3 1-7 TS/IP
Unicast or Multicast with IGMPv3 MSM/SSM | | Performance | Up to 800 Mb/s of streaming | | | | Compatibility | Densité 3 frame (3RU) |
