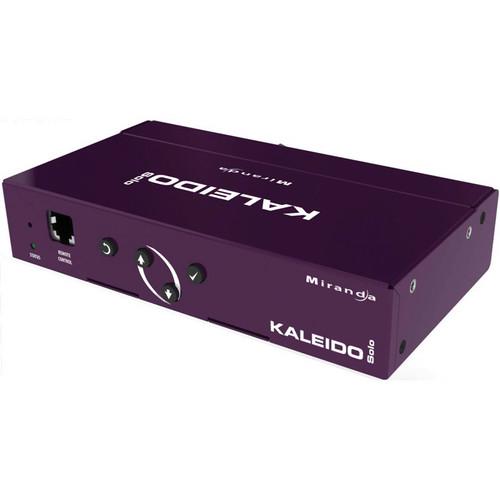

Product description The Miranda Kaleido-Solo 3Gbps/HD/SD SDI to HDMI Converter with High Quality Video & Loudness Monitoring allows you to use low-cost LCD displays for video and loudness/dialnorm monitoring using histogram overlay. Compatible with speeds up to 3 Gbps, the converter is ideal for professional monitoring applications such as production, mobile truck, post-production, and broadcast. It also supports video resolutions such as 525i, 625i, 720p, 1080i, and 1080p and comes with a built-in scaler/de-interlacer. In addition to automatic input format detection, the KS-910 Converter also provides overlays for time code, AFD (Active Format Description), and peak meters. Display settings can be adjusted using the on-screen menu. Two audio connectors ease embedded audio monitoring by offering S/PDIF and analog stereo of a 5.1 downmix or any audio pair. - Standalone converter that enables LCD displays to be used for video and loudness/Dialnorm monitoring using histogram overlay
- Ideal for professional monitoring applications such as production, mobile truck, post-production, and broadcast
- Easily monitor video and loudness levels at the output of a control switcher
- Effortlessly monitor on-air feeds or incoming feeds, including the AFD, loudness, and dialnorm Metadata
- Enables Full HD monitoring (3 Gbps) by feeding HDMI input to a display
- Supports video resolutions such as 525i, 625i, 720p, 1080i, and 1080p
- Built-in scaler/de-interlacer
- Equipped with automatic input format detection
- Provides overlays for time code, AFD, and peak meters
- On-screen menu for adjusting display settings
- 2 audio connectors ease embedded audio monitoring by offering S/PDIF and analog stereo of a
- 5.1 downmix or any audio pair
- Features ATSC A/85 and EBU R128 loudness measurement modes
- Supports CC 608/708 and Teletext/OP47
- Mount the Kaleido to the rear of a display using the mounting bracket
In the Box Grass Valley Kaleido-Solo 3Gbps/HD/SD SDI to HDMI Converter with High Quality Video & Loudness Monitoring Power Supply Power Cord User Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley Kaleido-Solo 3Gbps HD SD SDI to HDMI Converter with High Quality Video & Loudness Monitoring in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley KS-910 Specs | Signal | SMPTE-259M-C (270 Mbps)
SMPTE-272M-C (270 Mbps with embedded audio)
SMPTE-292M, SMPTE-299M (HD: 1.485, 1.485/1.001 Gbps)
SMPTE-425 (2.970, 2.970/1.001 Gbps) | | Supported Formats | SD: 480i59.94, 576i50
HD: SMPTE-274M: 1080i 50, 59.94, 1080p/PsF 23.98, 24, 25
HD: SMPTE-296M: 720p 50, 59.94
3G: SMPTE-425 level A (mapping 1): 1080p 50, 59.94 | | Cable Length | 787' (240m) Belden 1694A at 270 Mbps
492' (150m) Belden 1694A at 1.485 Gbps
394' (120m) Belden 1694A at 2.97 Gbps | | Return Loss | >15 dB up to 3 GHz | | Jitter | HD/SD: <0.2 UI
3Gbps: <0.3 UI | | Fiber Optic I/O | SMPTE 297M-2006 compliant | | HDMI | Connector: HDMI Type A
Standard: HDMI 1.3a
Format: Compliant to EIA/CEA-861-D | | Analog Audio Output | Connector: 3.5 mm stereo jack
Signal: 2 channels unbalanced analog audio
Level: +6.5 dBu
Impedance: 50 ohm | | S/PDIF | Connector: 3.5 mm stereo Jack
Signal: IEC 60958
Level: 0.5 Vp-p ±20%
Impedance: 75 ohm unbalanced
Sampling rate: 48kHz | | Ethernet | Connector: RJ-45 | | Processing | Signal path: 8 bits
Processing delay: 1 frame | | Electrical | Voltage range: 6 to 17 VDC
Power: 10 W | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 19.3 x 10.1 x 2.9" |
