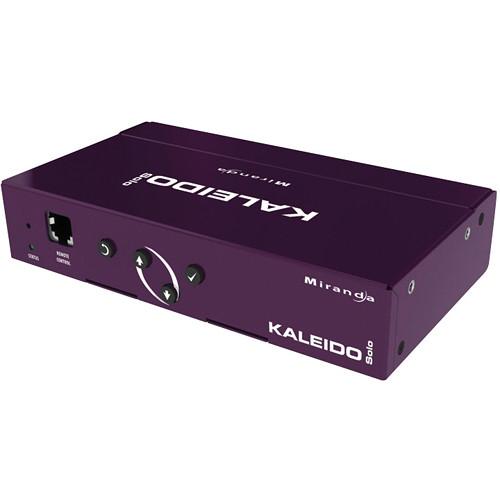

Product description The Miranda Kaleido-Solo 3Gbps/HD/SD SDI to HDMI Converter with High Quality Video Monitoring is a standalone HD/SD SDI to HDMI converter that allows you to use low-cost LCD displays for video and audio monitoring. Compatible with speeds up to 3 Gbps, the converter is ideal for professional monitoring applications such as production, mobile truck, post-production, and broadcast. It also supports video resolutions such as 525i, 625i, 720p, 1080i, and 1080p and comes with a built-in scaler/de-interlacer. In addition to automatic input format detection, the KS-900 Converter also provides overlays for time code, AFD (Active Format Description), and peak meters. Display settings can be adjusted using the on-screen menu. Two audio connectors ease embedded audio monitoring by offering S/PDIF and analog stereo of a 5.1 downmix or any audio pair. - Standalone converter that enables LCD displays to be used for video monitoring
- Supports speeds up to 3 Gbps and video resolutions such as 525i, 625i, 720p, 1080i and 1080p
- Ideal for professional monitoring applications such as production, mobile truck, post-production and broadcast
- Built-in scaler/de-interlacer
- Equipped with automatic input format detection
- Provides overlays for time code, AFD, and peak meters
- On-screen menu for adjusting display settings
- 2 audio connectors ease embedded audio monitoring by offering S/PDIF and analog stereo of a
- 5.1 downmix or any audio pair
- Mount the Kaleido to the rear of a display using the mounting bracket
In the Box Grass Valley Kaleido-Solo 3Gbps/HD/SD SDI to HDMI Converter with High Quality Video Monitoring Power Supply Power Cord User Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley Kaleido-Solo 3Gbps HD SD SDI to HDMI Converter with High Quality Video Monitoring in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley KS-900 Specs | Video Input | Signal
SMPTE-259M-C (270 Mbps)
SMPTE-272M-C (270 Mbps with embedded audio)
SMPTE-292M, SMPTE-299M (HD: 1.485, 1.485/1.001 Gbps)
SMPTE-425 (2.970, 2.970/1.001 Gbps)
Supported Formats
SD: 480i59.94, 576i50
HD: SMPTE-274M: 1080i 50, 59.94, 1080p/PsF 23.98, 24, 25
HD: SMPTE-296M: 720p 50, 59.94
3G: SMPTE-425 level A (mapping 1): 1080p 50, 59.94
Cable Length
240 m Belden 1694A at 270 Mbps
150 m Belden 1694A at 1.485 Gbps
120 m Belden 1694A at 2.97 Gbps
Return Loss
>15 dB up to 3 GHz
Jitter
HD/SD: <0.2 UI
3 Gbps: <0.3 UI | | Fiber Optic I/O | SMPTE 297M-2006 compliant | | HDMI | HDMI Output
Connector: HDMI Type A
Standard: HDMI 1.3a
Format: Compliant to EIA/CEA-861-D | | Analog Audio | Analog Audio Output
Connector: 3.5 mm stereo jack
Signal: 2 channels unbalanced analog audio
Level: +6.5 dBu
Impedance: 50 ohm | | S/PDIF | Connector: 3.5 mm stereo jack
Signal: IEC 60958
Level: 0.5 Vp-p ±20%
Impedance: 75 ohm unbalanced
Sampling rate: 48kHz | | Ethernet | Connector: RJ-45 | | Processing | Signal path: 8 bits
Processing delay: 1 frame | | Power Input | 6-17 VDC | | Power Consumption | 10 W | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 19.3 x 10.0 x 2.9" |
