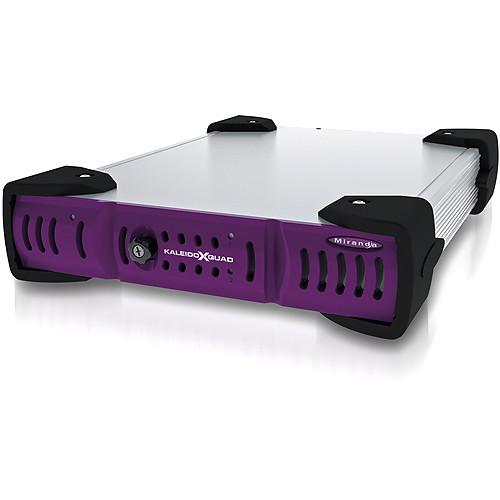

User Manual for Grass Valley Kaleido-XQUAD 4x1 Multi-Viewer Click to enlarge the picture
Contents of the user manual for the Grass Valley Kaleido-XQUAD 4x1 Multi-Viewer
- Product category: Multiviewer Processors Grass Valley
- Brand: Grass Valley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Grass Valley Multiviewer Processors
|
User manual for the Grass Valley Kaleido-XQUAD 4x1 Multi-Viewer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Grass Valley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Grass Valley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Grass Valley product will considerably shorten its lifespan!
|
Product description The Miranda Kaleido-XQUAD 4x1 Multi-Viewer outputs four video sources to one monitor simultaneously in a split-screen configuration, supporting also embedded audio. XQUAD is ready to go straight out of the box, featuring a 1RU half width frame with silent ventilation. XQUAD accepts video sources by four SDI inputs, and for output to a monitor, XQUAD has one SDI output and one HDMI output. Only one of the two is required, and you can select either. Accordingly, any SDI monitor or any HDMI monitor can be connected, and the free output can be used to at the same time connect a router. All the SDIs support 3G, HD, and SD. Complementary to outputting video (and audio), XQUAD also outputs timecode, tallies, audio meters, safe area markers, time of day sync to NTP, database-updated or static labels, and timers that function by mouse or GPI control. XQUAD operates with less than a 1/2 frame delay. Award winning Kaleido-X scaling technology ensures that high resolution video will display properly in each screen (widget) of a split-screen layout.
Split-screen combinations/configurations are selectable via an included software called XEdit. You can split the screen in two and output only two of the inputs, for example, or you can select a full four-way split. The splits get formed by outline bars. You can choose these bars to be of any color you want, and you can additionally upload a logo to display on the bars, although in most cases only a portion of the logo will be visible as the more expansive your split the thinner the bars will be. The bar-related adjustments are also done in the included software. An optional controller, the Keleido-RCP2, can be connected to alter by push-buttons many of the configurations made in the software.
XQUAD supports both 50 and 60Hz rates and consumes a maximum of 29W of power. - Key Features
-
- Award winning Kaleido-X scaling technology
- 1RU, half rack width frame with silent ventilation
- Auto-sensing 3G/HD/SD-SDI inputs; HD-SDI and HDMI outputs
- Integrates with NVISION and 3rd-party routers with source control and centralized mnemonic database access
- Fast mean time to repair with front loading module
- Tally support with direct serial interface or GPI control of popular production switchers and tally controllers (Image Video and TSL)
- Simplified Truck Monitoring
- Space and energy efficient, XQUAD is especially well suited to production monitoring in trucks. The multiviewer system integrates tightly with NVISION 8500 Hybrid routers with internal audio processing, and third party production switchers. An optional RCP-200 control panel simplifies control of a highly combined system. The panel can operate the XQUAD, a router, and Miranda's signal processing and distribution cards at the same time.
- Rich Integration with Routers Delivers Full Scalability
- For large monitoring facilities, XQUAD can be paired with NVISION and third party routers to provide expansion to up to 1152 video inputs and 288 multiviewer outputs. With the optional Kaleido Cluster feature, multiple multiviewers behave like a single virtual system from an operator's perspective, with full layout flexibility.
- Full Integration with Other Kaleido Multiviewers
- XQUAD uses the same advanced processing technology, control panels, and layout software as the top of the range Kaleido-X processor. The powerful XEdit layout software, which comes included, allows seamless creation of layouts for multiple Kaleido devices within a single room, providing a much better overview of an entire monitor wall during layout design. The optional Kaleido-RCP2 and RCP-200 control panels allow instant layout changes from a single button press, and the intuitive "Mouse on Wall" XEdit feature delivers easy interactivity with the monitor wall across multiple multiviewer processors.
In the Box Grass Valley Kaleido-XQUAD 4x1 Multi-Viewer Power Supply XEdit Layout Editor (Download) 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley Kaleido-XQUAD 4x1 Multi-Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley KALEIDO-XQUAD Specs | Inputs | 4x 3G/HD/SD-SDI on BNC
3G:
Signal:SMPTE 424M-2006 (2.97, 2.97/1.001 Gbps) Level A
Formats:1920x1080p60, 1920x1080p59.94, 1920x1080p50
Cable length supported: 279 ft (85 m) via Belden 1694A
HD:
Signal:SMPTE 292M-C(1.485, 1.485/1.001 Gbps) SMPTE 272M-1994
Formats:720p59.94, 1080p23.98, 1080p23.98SF, 1080p24, 1080p24SF, 1080p25SF, 1080p 29.97, 1080i50, 1080i59.94
Return loss: >15 dB up to 1.5 GHz
Jitter:<0.2 UI
Cable length supported: 328 ft (100 m) via Belden 1694A
SD:
Signal:SMPTE-259M-C (270 Mbps), SMPTE 272M-1994
Formats:480i59.94 and 576i50
Return loss: >15 dB up to 270 MHz
Jitter:<0.2 UI
Cable length supported: 820 ft (250 m) via Belden 1694A | | Outputs | 1x 3G/HD/SD-SDI on BNC
Signal:3G/HD SDI SMPTE 424M and 292M compliant
Supports data rates of 1483.5, 1485, 2967, 2970 Mbps
Return loss: >15 dB up to 1.5 GHz, >10 dB from 1.5 GHz to 3 GHz
Jitter (wideband): HD: <0.2 UI, 3Gbps: <0.3 UI
1x HDMI 1.3
Format:1280x1024 up to 1920x1200p configurable
Refresh rate supported (50 Hz and 59.94 Hz)
Cable length supported: 15 ft (4.5 m)
Signal path: 8 bits output | | Graphic Conversion | Graphic converted to HD-SDI from optional KXI-DVI-bridge:
Signal:SMPTE 292M-C (1.485, 1.485/1.001 Gbps)
Resolutions: Mode A -- 1024x768, 1366x768, 1280x1024, 1680x1050, 1600x1200 @ 60Hz; Mode B -- 1280x720 and 1920x1080 @ 50/60 Hz
Cable length supported: 328 ft (100 m) via Belden 1694A | | GPI | 4x inputs on DB-26 terminal block PCB connectors
Contact closure: GND
Protection: up to 24 V
1x output on DB-26 terminal block PCB connector
Maximum voltage: 24 V
Maximum current at 12 V: 20mA (through 200 ohm series resistor)
Pulse minimum duration: 10 µs | | Communication | 1x RJ45 Ethernet, 10/100 BASE-T | | Serial Control | 1x RS-422 on DB-26 terminal block PCB connector
SMPTE 207M, EBU-3245 | | Video Processing | Signal path: 8-bit YCbCr to 24-bit RGB
Processing delay: ~1 field in genlock mode, 1-2 fields in non-genlock mode | | Audio Processing | Quantization: 20-24 bits
Sampling: 48 kHz
THD+N: 80 dB
SNR: 98 dB | | AC Voltage Input Range | 100-240 V, 50-60 Hz | | Power Consumption | 29 W max | | Dimensions | 1.7 x 8.4 x 12" (4.3 x 21.3 x 30.5 cm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 8.7 lb | | Box Dimensions (LxWxH) | 26.0 x 12.8 x 4.0" |
