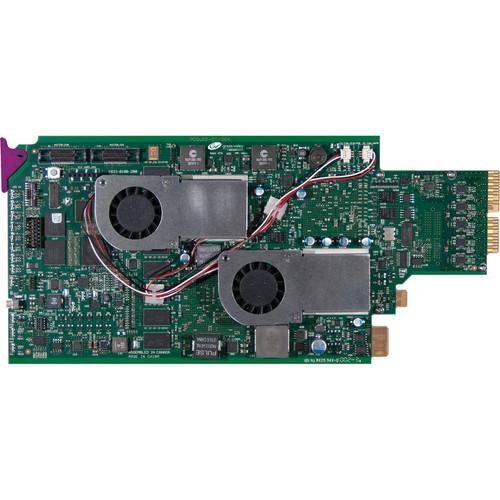

User Manual for Grass Valley KMX-3901-IN-16-Q 16-Input Card for Kaleido-Modular-X Scalable Multiviewer Click to enlarge the picture
Contents of the user manual for the Grass Valley KMX-3901-IN-16-Q 16-Input Card for
- Product category: Multiviewer Accessories Grass Valley
- Brand: Grass Valley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Grass Valley Multiviewer Accessories
|
User manual for the Grass Valley KMX-3901-IN-16-Q 16-Input Card for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Grass Valley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Grass Valley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Grass Valley product will considerably shorten its lifespan!
|
Product description The KMX-3901-IN-16-Q 16-Input Card from Miranda is a 16-input HD/SD-SDI and 3 Gb/s input module with quad FlexBridge outputs for the Kaleido-Modular-X scalable multiviewer. The KMX-3901-IN-16-Q input card occupies 5 slots of the Densite 3 frame and should be inserted in two slots to the left of the rightmost slot. This input card can be converted and be used as 4K UHD prescaler. Instructions are provided to configure the card for 4k monitoring purposes. Note: 3 Gbps license required - FlexBridge Technology
-
- Flexible coax cable bridging between input modules and to the output modules
- Install input stage next to the router and the output stage next to the displays to eliminate the HDMI extenders
- More robust than cascading with bypass relay protection to remain on-air even when removing a module
- Image Quality
-
- Simultaneous HDMI and SDI outputs at full 1080p50/60 resolution on up to four multiviewer displays
- Input signal processing up to 3 Gb/s signal formats
- Natively capable of handling 4K quad-link sources seamlessly recombining them into a pixel perfect image
- Advanced Probing and Alarming
-
- Closed captioning and teletext subtitling display and alarming to ensure compliance with regulation, includes XDS and AFD
- Software licensable Dolby E metadata extraction for metering and content alarming without the need of expensive hardware decoders
- On-screen alarm displays for clear operator alerts. Supports multicolor and blinking statuses based on severity, latching and status message
Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley KMX-3901-IN-16-Q 16-Input Card for Kaleido-Modular-X Scalable Multiviewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley KMX-3901-IN-16-Q Specs | Input Card Slots | DIN 1.0/2.3 connectors | | SD-SDI | Signal: 4:2:2 SMPTE 259M-C (270 Mbps)
Formats: 525 and 625
Audio: SMPTE 274M-1994
Return Loss: >15 dB up to 270 MHz
Jitter: <0.2 UI
Cable Length:
820' (250 m)(Belden 1694A)
492' (150 m) (Belden 1855A) | | HD-SDI | Signal: 4:2:2 SMPTE 292M-C (1.5 Gbps)
Formats: 720p24/25/29.97/50/59.94, 1080PsF23.98p/24p/25i/29.97i, 1080i50/59.94, 1080p23.98/24/25/29.97
Audio: SMPTE 299M
Return Loss: >15 dB up to 1.5 GHz
Jitter: <0.2 UI
Cable Length:
328' (100 m) (Belden 1694A)
148' (45 m) (Belden 1855A) | | 3G-SDI | Signal: SMPTE 424M-2006 (2.97, 2.97/1.001 Gbps) Level A and B
Formats : 1920 x 1080p60, 1920 x 1080p59.94, 1920 x 1080p50
Audio: SMPTE 299M
Return Loss:
>15 dB up to 1.5 GHz
>10 dB from 1.5 GHz to 3 GHz
Jitter: <0.3 UI
Cable Length:
328' (100 m) (Belden 1694A)
148' (45 m) (Belden 1855A) | | LTC Input | Signal: SMPTE 12M-1995 (EBU-3259-E), SMPTE 309M
Level: 500 mV p-p to 10 V p-p
Impedance: >10 kΩ
Refresh Rate: 50/59.94 Hz | | Reference Input | External: SMPTE 170M, SMPTE 318M, ITU 624-4, BUT 470-6, PAL and NTSC composite sync, SMPTE 274M, SMPTE 296M, SMPTE 240M
Internal: Universal reference from the Densité frame via REF-1801 | | Coaxial Inputs/Outputs | 2 FlexBridge outputs
Format: 3 Gbps
Cable Length:
164' (50 m) (Belden 1694A)
60' (18 m) (Belden 1855A) Maximum cable length (sum of all cables) from input module to final output module | | Maximum Power Consumption | 55 W | | Ambient Temperature Range | 32 to 104°F | | Storage Humidity | Up to 90% RH, non-condensing | | Operating Humidity | Up to 65% RH, non-condensing | | Weight | 13.8 oz (390 g) |
