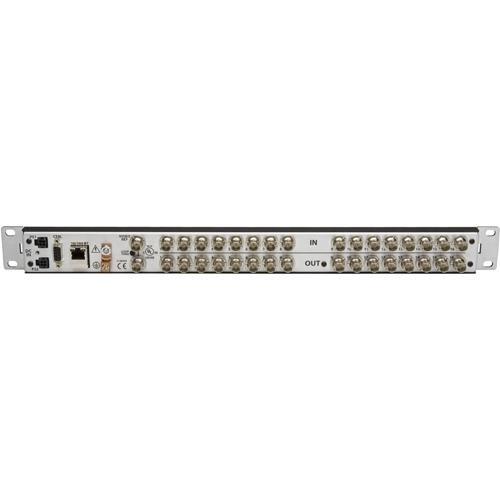

User Manual for Grass Valley NVISION 1 RU 16x16 HD SWB Serial Digital Video Router

Click to enlarge the picture
Grass Valley NVISION 1 RU 16x16 HD SWB Serial Digital Video Router Contents of the user manual for the Grass Valley NVISION 1 RU 16x16
  • Product category: Routers & Switchers Grass Valley
  • Brand: Grass Valley
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Grass Valley Routers & Switchers

User manual for the Grass Valley NVISION 1 RU 16x16 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Grass Valley product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Grass Valley user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Grass Valley product will considerably shorten its lifespan!



Product description

The NVISION 1 RU 16x16 HD SWB Serial Digital Video Router from Grass Valley supports both SD and HD rates and is DVB-ASI compliant. It comes with a NVISION Compact router control panel system, which is scalable, and allows up to four routers to be controlled from up to 16 remote control panels without the use of an external controller. The routers can be remotely controlled and monitored via a serial connection and over Ethernet, using NVISION protocols or other third-party control software. When integrated with the NVISION's router control system, it offers full complement of user interface options, easy-to-use Java-based configuration editor, a choice of several core system controllers, and a wide variety of highly configurable hardware and virtual control panels.

The included Java-based Compact Router System Configurator (CRSC) software can configure IP settings, partition routers into multiple levels, program remote control panels for device level control, build salvos, and reconfigure large routing networks to meet changing facility workflows. Configurations can be devised offline, and easily uploaded over a network to the system. Configurator has simple help screens and menus to guide users through each step.
  • Supports both SD and HD rates
  • DVB-ASI compliant
  • Supports remote control panel (optional)
  • Ultra-thin and lightweight robust design for rugged conditions and saves rack space
  • Non-square router configurations for monitoring applications
  • Reliable power supply over 500,000 hours MTBF
  • Range operates with the entire NVISION router range
  • Compact Router System Configurator (CRSC) software provides easy configuration of routers, including salvos and partitioning
  • Software also allows programming of remote control panels, and configuration of network settings
  • Ethernet and serial control
  • Local button panel and Graphical User Interface (GUI) panels
In the Box Grass Valley NVISION 1 RU 16x16 HD SWB Serial Digital Video Router
  • Limited 15-Month Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Grass Valley NVISION 1 RU 16x16 HD SWB Serial Digital Video Router in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Grass Valley CR1616-HD Specs

    Type High-definition serial digital video
    Standard SMPTE 259M, 344M, and 292M
    Data Rate Auto reclocking at 270 Mb/s and 1.483 and 1.485 Gb/s or auto bypass with passthrough from 19 Mb/s to 1.5 Gb/s Inputs do not reclock
    Connector BNC
    Impedance 75 Ohms
    Cable Equalization 492' (150 m) Belden 1694 A, 278' (85 m) Belden 1855A, or equivalent cable, at 1.5 Gb/s
    Router Path: Non-inverting
    Output Level 800 m V p-p ±10 %
    I/O Return Loss: >15 dB, 5 MHz to 1.5 GHz
    Output Rise/Fall Time: ≤270 ps
    Overshoot: ≤10 % of amplitude max
    Alignment Jitter: ≤0.2 UIpp from 100 kHz to 150 MHz
    Timing Jitter: ≤1.0 UIpp from 10 Hz to 100 kHz
    Serial Port Type: 1 serial port
    Standard: SMPTE 207M, EIA-422, configurable
    Connector: 1, DE-9
    Ethernet Type: 10/100 Base T
    Standard: IEEE 802.3
    Protocol: NVISION Ethernet
    Connector: 1, RJ45
    AC Input 90 to 250 VAC, 50/60 Hz, auto-ranging
    Connectors AC: 2, 12 VDC with external modules
    AC Power PS0001-00, HB0321-00, 50 W, one IEC 320
    Power Usage AC: 20 W nominal
    Regulatory Compliance UL listed and CE compliant
    Operating Temperature 32 to 104°F (0 to 40°C)
    Relative Humidity 0 to 90%, non-condensing
    Mounting EIA 310-C, 19" (483 mm)
    Grounding Terminal Cooper, accepts 14-6 AWG
    Dimensions (H x W x D) 1.8 x 19 x 1.4" (4.5 x 48.3 x 3.5 cm)
    Weight 4.4 lb (2 kg)
